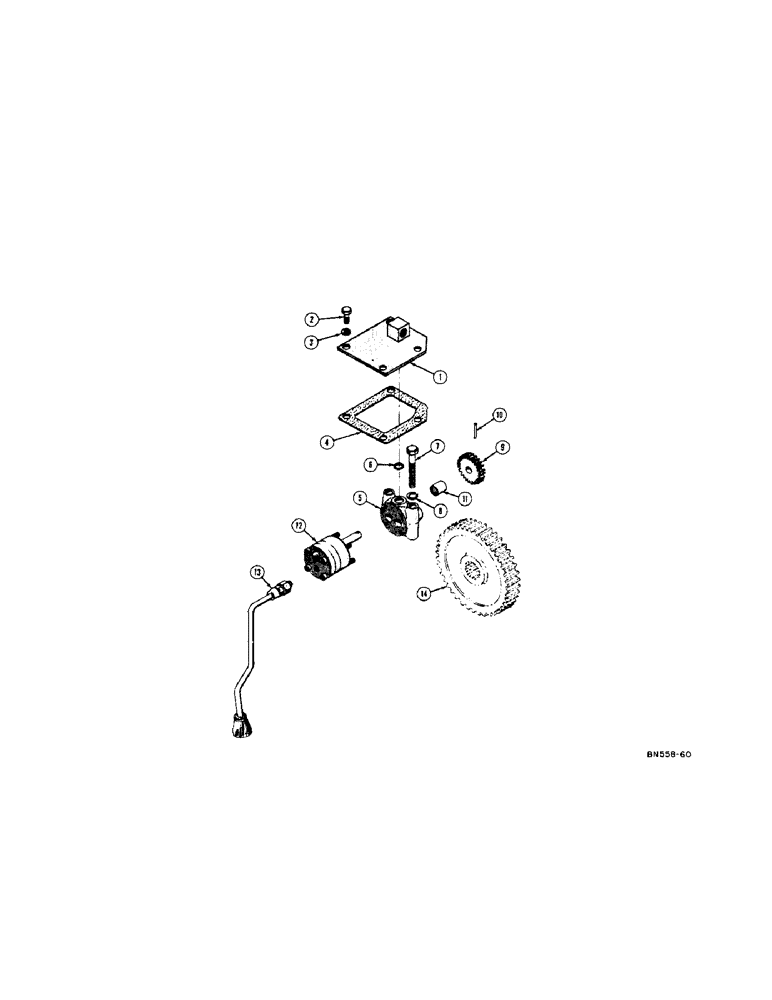

Запчасти Case 420 (180) - C-12 WINCH HYDRAULIC PUMP (05) - UPPERSTRUCTURE CHASSIS

1

D26590

COVER - pump hole

1шт.

2

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D27714

GASKET - pump hole cover

1шт.

5

D26593

ADAPTER - pump (Used with D26594 pump only)

1шт.

6

D26592

O-RING

SEAL - "O" ring, adapter or, Serial Range: pump-cover

1шт.

7

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS - 3/8 - 24 NF x 3

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D27713

GEAR - pump drive

1шт.

10

D27715

PIN - drive-lok (5/32" x 1-1/4")

1шт.

11

O8089AB

BEARING - needle (Used with D26594 pump only)

1шт.

12

D26594

PUMP - hydraulic (Up to winch serial no. 5097) Use D28932 and D28933

1шт.

D28799

X

SNAP RING - (Not shown)

2шт.

D28800

WASHER - fiber (3/8" I.D. x 5/8" O.D. x 1/32" thick) Not shown

4шт.

D28801

GASKET - pump to adapter (Not shown)

1шт.

D28802

VALVE - relief (Not shown)

1шт.

12

D28932

PUMP - hydraulic (Winch serial no. 5097 and after) See D26594 and D26595

1шт.

13

D26595

INTAKE ASSY - oil (Used with D26594 pump) See D28933

1шт.

D28933

INTAKE ASSY - oil (Used with D28932 pump) See D26595

1шт.

14

38829

GEAR - driven

1шт.
