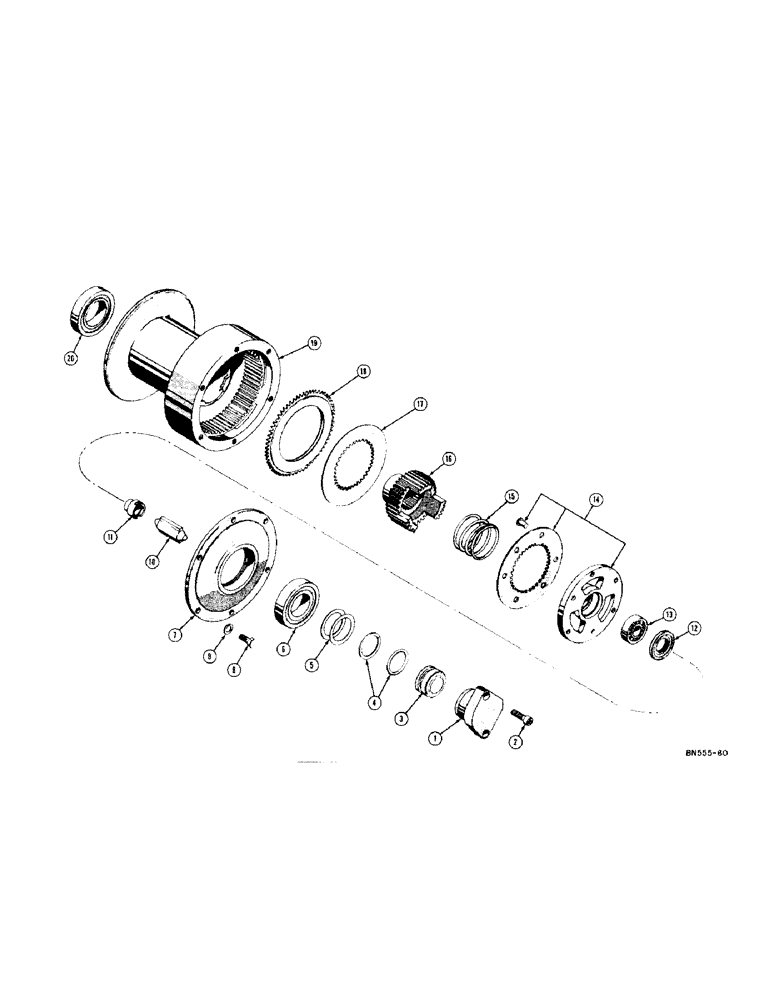

Запчасти Case 420 (178) - C-12 WINCH CABLE DRUM AND CLUTCH (05) - UPPERSTRUCTURE CHASSIS

D26564

CYLINDER

- clutch, complete

1шт.

1

D26598

CYLINDER - clutch

1шт.

2

62-820

SHCS - 1/2 - 20 NF x 1-1/4

2шт.

3

D26599

PISTON

- clutch cylinder

1шт.

4

D27496

O-RING

"O" RING - seal (Includes teflon backup ring)

1шт.

5

D26565

SHIM - drum

2шт.

6

38805

BEARING - ball

1шт.

7

D26566

COVER - drum

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

9

92-6

LOCK WASHER,3/8"

6шт.

10

D26567

ROD - push, clutch

1шт.

D27712

PLATE - clutch, complete

1шт.

11

D26568

PLUG - thrust, clutch

1шт.

12

D26569

SEAL - oil

1шт.

13

D26570

BEARING - ball

1шт.

14

D27926

DISC ASSY - clutch

1шт.

15

D26573

SPRING - clutch release

1шт.

16

D26574

HUB - clutch

1шт.

17

D26575

DISC - steel

6шт.

18

D26576

DISC - friction

7шт.

19

D26577

DRUM - cable

1шт.

20

D26578

BEARING - ball

1шт.
