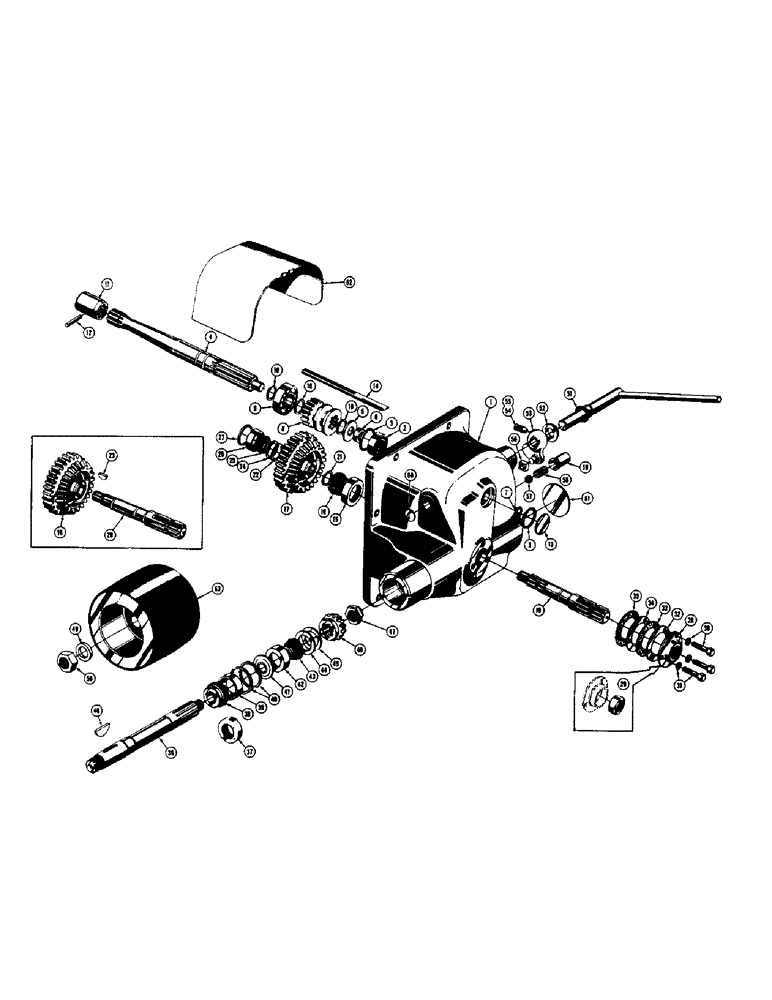

Запчасти Case 420 (174) - POWER TAKE-OFF AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS

D23999

POWER TAKE-OFF - complete

1шт.

1

23087

HYDRAULIC HOSE

HOUSING - P.T.O. (Includes 1 - 11453 snap ring)

1шт.

2

23043

BEARING - drive shaft, rear

1шт.

3

23030

PLATE

SNAP RING - drive shaft bearing

2шт.

4

23009

OIL SEAL

SHAFT - drive

1шт.

5

23022

HYDRAULIC HOSE

SPACER - drive shaft bearing

1шт.

6

23023

BEARING CONE,0.669" ID x 0.9797" OD

RACE - inner, drive shaft bearing

1шт.

7

23024

HYDRAULIC HOSE

RING - retaining, drive shaft

1шт.

8

23054

CARTRIDGE

GEAR - drive

1шт.

9

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- drive shaft, front

1шт.

10

VT2111

X

SNAP RING - drive shaft

3шт.

11

23018

SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

- P.T.O. drive shaft to transmission main shaft

1шт.

12

23019

RIVET

- sleeve to drive shaft

1шт.

13

23080

HYDRAULIC HOSE

PLUG - Welsh, drive shaft hole

1шт.

14

23088

TUBE

- oil, P.T.O. bearing

1шт.

15

O4056TS

CUP

- rear bearing, P.T.O. shaft

1шт.

16

VT3404

X

CONE - rear bearing, P.T.O. shaft

1шт.

17

D23997

GEAR - P.T.O. shaft (Splined hub) See 23073

1шт.

18

23073

HYDRAULIC HOSE,Hex, 3/4"-10 x 10", G5

GEAR - P.T.O. shaft (Keyed hub) See D23997

1шт.

19

D23998

SHAFT - P.T.O. (Use with splined gear) See 23025

1шт.

20

23025

HYDRAULIC HOSE

SHAFT - P.T.O. (Use with Woodruff key) See D23998

1шт.

21

VT2111

X

SNAP RING - rear bearing, P.T.O. shaft

1шт.

22

D23996

SPACER - front bearing, P.T.O. shaft (Use with splined gear and shaft)

1шт.

23

23032

X

KEY - Woodruff (Use with keyed gear and shaft)

1шт.

24

23038

HYDRAULIC HOSE

SHIM - front bearing, P.T.O. shaft (.020" thick)

1шт.

D25223

SHIM - front bearing, P.T.O. shaft (.010" thick)

1шт.

D25222

SHIM - front bearing, P.T.O. shaft (.015" thick)

1шт.

25

O1542AB

BEARING ASSY

CONE - front bearing, P.T.O. shaft

1шт.

26

VT2214

X

CUP - front bearing, P.T.O. shaft

1шт.

27

23031

HYDRAULIC HOSE

SNAP RING - front bearing retaining, P.T.O. shaft

1шт.

28

23011

PIN

CAP - rear bearing, P.T.O. shaft

1шт.

29

23033

OIL SEAL

SEAL - oil, rear bearing cap

1шт.

30

NLS

NO LONGER SERVICED

SCREW AND LOCKWASHER

1шт.

31

23016

CAP

SCREW AND LOCKWASHER

2шт.

32

23013

TINE

SHIM - rear bearing cap (.010" thick)

1шт.

33

23014

4 WAY CONNECTION

GASKET - rear bearing cap

1шт.

34

23012

TINE

SHIM - rear bearing cap (.005" thick)

1шт.

35

23015

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

GASKET - rear bearing cap

1шт.

36

23027

SHAFT - belt pulley

1шт.

37

40634

WASHER

SEAL - oil, belt pulley shaft

1шт.

38

VT3404

X

CONE - outer bearing, belt pulley shaft

1шт.

39

O4056TS

CUP

- outer bearing, belt pulley shaft

1шт.

40

11453

TAPERED BEARING

SNAP RING - bearing retaining, belt pulley shaft

2шт.

41

23037

HYDRAULIC HOSE

WASHER - oil, belt pulley shaft

1шт.

42

O4056TS

CUP

- inner bearing, belt pulley shaft

1шт.

43

VT3404

X

CONE - inner bearing, belt pulley shaft

1шт.

44

23035

HYDRAULIC HOSE

SHIM - inner bearing (.005" thick)

1шт.

45

23036

HYDRAULIC HOSE

SHIM - inner bearing (.010" thick)

1шт.

46

23074

HYDRAULIC HOSE

GEAR - drive, belt pulley shaft

1шт.

47

11380

NUT

- gear retaining, belt pulley shaft

1шт.

48

126-146

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

1шт.

49

23042

HYDRAULIC HOSE

WASHER - belt pulley retaining nut

1шт.

50

23041

HYDRAULIC HOSE

NUT - retaining, belt pulley

1шт.

51

23046

VALVE SPRING

SHIFT LEVER AND SHAFT - P.T.O.

1шт.

52

23093

HYDRAULIC HOSE

WASHER - cork, shift shaft

1шт.

53

23094

HYDRAULIC HOSE

FINGER - shift

1шт.

54

23095

HYDRAULIC HOSE

SCREW - mounting, shift finger

1шт.

55

R10831

ELECTRICAL WIRE

LOCKWIRE

1шт.

56

23096

FILTER ASSY

TRUNNION - shift finger

1шт.

57

O8296AB

X

BALL - mesh lock (5/8" dia.)

1шт.

58

23098

SPRING

- mesh lock ball

1шт.

59

23097

FLANGE NUT,Flg, 7/16"-14, GF

RETAINER - mesh lock

1шт.

60

23089

HYDRAULIC HOSE

PLUG - Welsh, shift shaft hole

1шт.

61

23034

HYDRAULIC HOSE

PLUG - Welsh, belt pulley shaft hole

1шт.

62

23040

HYDRAULIC HOSE

SHIELD - P.T.O.

1шт.

63

23045

BUSHING

PULLEY - belt

1шт.
