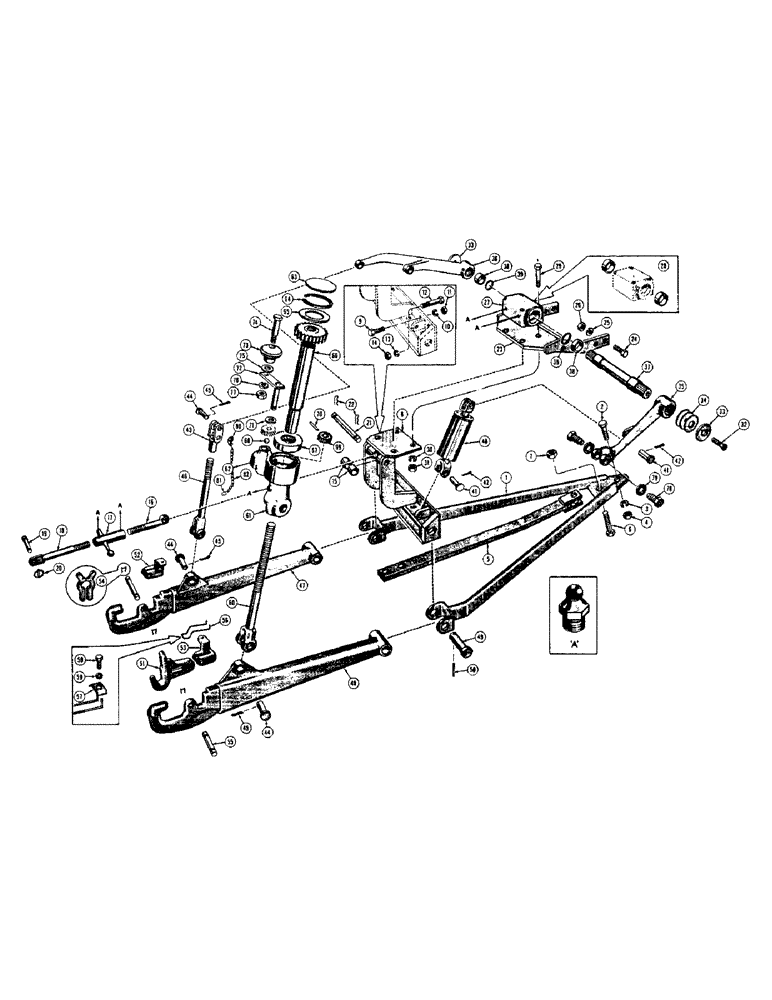

Запчасти Case 420 (152) - EAGLE HITCH (WITH RIGID DRAFT ARMS) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
39775
ARM - mounting, drawbar
1шт.
2
14-1656
HHCS - 1 - 14 NF x 3-1/2
1шт.
3
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
4
25-1116
NUT,1"-14, G5
- hex. (1 - 14 NF)
1шт.
5
39778
SCREW
DRAWBAR - Eagle hitch
1шт.
6
14-1664
BOLT,Hex, 1" - 14 x 4", Gr 5
HHCS - 1 - 14 NF x 4
1шт.
7
131-370
LOCK NUT
NUT - lock (1" - 14 NF)
1шт.
8
39786
PIN
BRACKET - mounting, Eagle hitch
1шт.
9
14-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
4шт.
11
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF)
4шт.
12
14-872
X,Hex, 1/2" - 20 x 4 1/2", Gr 5
HHCS - 1/2 - 20 NF x 4-1/2
2шт.
13
92-8
LOCK WASHER,1/2"
2шт.
14
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF)
2шт.
15
D20483
SPACER - mounting, front depth adjusting screw
2шт.
16
A7240
SCREW - depth adjusting, front (L.H. thread), turnbuckle
1шт.
17
A7821
TURNBUCKLE - depth adjusting screw
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), turnbuckle
2шт.
18
D20622
SCREW - depth adjusting, rear (R.H. thread), turnbuckle
1шт.
19
V14209
X
PIN - mast, turnbuckle
1шт.
20
SV2433
X
PIN - keeper, mast pin, turnbuckle
1шт.
21
39798
BRACKET
PIN - yoke, depth adjusting screw, turnbuckle
1шт.
22
VC1419
X
PIN - hair pin cotter, turnbuckle
2шт.
23
NLS
NO LONGER SERVICED
STRAP - hanger, rockshaft housing
1шт.
24
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
HHCS - 5/8 - 18 NF x 2-3/4, rockshaft & housing
4шт.
26
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF), rockshaft & housing
4шт.
27
D20418
X
HOUSING - rockshaft (Use A20907)
1шт.
28
O9235AB
X
BUSHING - rockshaft housing
2шт.
A20907
X
HOUSING - rockshaft (See D20418)
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), rockshaft & housing
2шт.
29
14-1080
BOLT,Hex, 5/8" - 18 x 5", Gr 5
HHCS - 5/8 - 18 NF x 5, rockshaft & housing
4шт.
31
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF), rockshaft & housing
4шт.
32
73-616
SCREW,Slotted Flat Hd, 3/8"-16 x 1"
- machine, flat head (3/8" - 16 NC x 1"), rockshaft & housing
2шт.
33
O9239AB
PLATE - lock, rockshaft lift arm, housing
2шт.
34
O9238AB
SHIM - rockshaft adjusting (No. 30 gauge), housing
3шт.
35
D20417
ARM - rockshaft lift, R.H., housing
1шт.
36
O10929AB
ARM - rockshaft lift, L.H., housing
1шт.
37
A20911
ROCKSHAFT - Eagle hitch, housing
1шт.
38
O9237AB
X
SPACER - rockshaft, housing
2шт.
39
A20908
SEAL - "O" ring, rockshaft, housing
2шт.
40
A8282
CYLINDER - Eagle hitch, hydraulic (See figure 168 for breakdown, rockshaft & housing
1шт.
41
O8350AB
PIN - mounting, hydraulic cylinder, rockshaft & housing
2шт.
42
132-150
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), , Rockshaft & housing 1/4" x 1 1/2"
2шт.
43
A7760
YOKE - L.H. link, upper, rockshaft & housing
1шт.
44
O9213AB
X
PIN - leveling screw mounting (L.H. upper and lower, also R.H. lower), rockshaft & housing
3шт.
45
VC1419
X
PIN - hair pin cotter, rigid draft arms & lift links
3шт.
46
39805
SEAL
LINK - lift, L.H., rigid draft arms
1шт.
47
D20432
ARM - draft, L.H., rigid & lift links
1шт.
48
D20431
ARM - draft, R.H., rigid & lift links
1шт.
49
39799
RING
PIN - pivot, draft arm, rigid & lift links
2шт.
50
138-143
LOCK PIN,1/4" x 2 1/4", Slotted
PIN, , Pivot pin, rigid draft arms & lift links 1/4" x 2 1/4", Slotted
2шт.
51
6167A
X
LATCH - draft arm, rigid & lift links
2шт.
52
6169A
X
LOCK - latch, L.H. draft arm, rigid& lift links
1шт.
53
6168A
X
LOCK - latch, R.H. draft arm, rigid & lift links
1шт.
54
O9416AB
X
SNAP RING - retaining, latch pin, rigid draft arms & lift links
4шт.
55
O9415AB
X
PIN - latch, draft arm, rigid & lift links
2шт.
56
O10280AB
X
SPRING - latch, draft arm, rigid & lift links
2шт.
57
A8131
X
PLATE - draft arm latch spring, rigid & lift links
2шт.
58
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
Rigid draft arms & lift links Hex, 5/16"-18 x 5/8", G5, Full Thd
2шт.
59
92-5
LOCK WASHER,5/16"
rigid draft arms & lift links 5/16"
2шт.
60
39804
LINK - lift, R.H. leveling screw (Lower), rigid draft arms & lift links
1шт.
61
G1044
HOUSING - gear, adjusting screw, rigid draft arms & lift links
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), rigid draft arms & lift links
1шт.
62
219-30
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (Vented) (1/8" NPT), rigid draft arms & lift links
1шт.
63
41-40
PLUG,Exp, 2 1/2"
- Welsh, 2-1/2" dia., rigid draft arms & lift links
1шт.
64
O8582AB
X
SNAP RING - retaining, leveling screw gear, rigid draft arms & lift links
1шт.
65
O265BL
WASHER - leveling screw gear (1-15/16" I.D. x 2-1/2" O.D. x 14 gauge), rigid draft arms & lift links
1шт.
66
G13390
TUBE
GEAR AND TUBE - leveling screw, rigid draft arms & lift links
1шт.
67
G10489
THRUST BEARING
BEARING - thrust, leveling screw, rigid draft arms & lift links
1шт.
68
O8635AB
X
BALL - crank bearing, 1/4" dia., rigid draft arms & lift links
1шт.
69
G10464
GEAR - adjusting screw crank, rigid draft arms & lift links
1шт.
70
138-75
LOCK PIN,5/32" x 7/8", Slotted
PIN, , Crank gear, rigid draft arms & lift links 5/32" x 7/8", Slotted
1шт.
71
O5087A
X
WASHER - thrust, crank gear, rigid draft arms & lift links
1шт.
72
G13119
CRANK - adjusting screw, rigid draft arms & lift links
1шт.
73
O4995AB
X
KNOB - adjusting screw crank, rigid draft arms & lift links
1шт.
74
VT2964
BOLT - mounting, knob, rigid draft arms & lift links
1шт.
75
G10488
WASHER - thrust, adjusting crank, rigid draft arms & lift links
1шт.
76
92-6
LOCK WASHER,3/8"
rigid draft arms & lift links 3/8"
1шт.
77
25-106
NUT,3/8"-16, G5
- hex. (3/8 - 16 NC), rigid draft arms & lift links
1шт.
78
O9214AB
X
PIN - pivot, adjusting screw, rigid draft arms & lift links
2шт.
79
O164B
X
WASHER - pivot pin, 29/32" I.D. x 1-3/8" O.D., rigid draft arms & lift links
1шт.
80
O10953AB
RETAINER - chain, rigid draft arms & lift links
1шт.
81
O9191AB
X
"S" HOOK - chain, rigid draft arms & lift links
2шт.
82
D20505
CHAIN, rigid draft arms & lift links
1шт.
Выбрано товаров: 86
