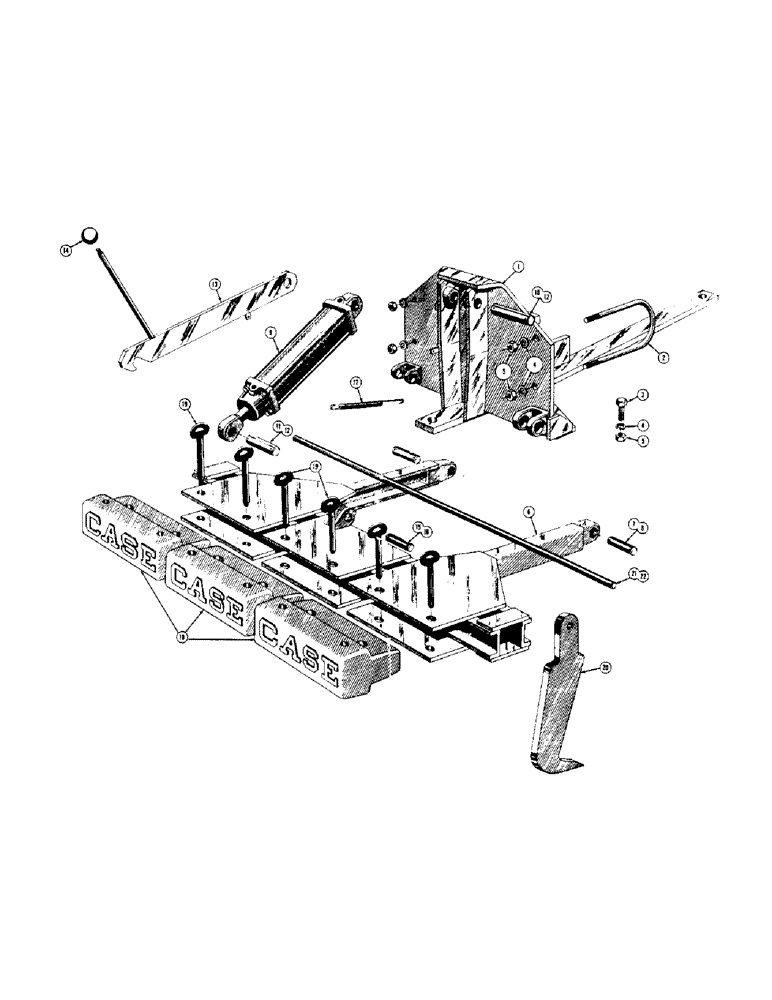

Запчасти Case 420 (140) - SCARIFIER (42" GAUGE TRACTOR) (05) - UPPERSTRUCTURE CHASSIS

1

31716

PLATE - mounting

1шт.

2

31696

BOLT

"U" BOLT - mounting plate to final drive spacer tube

2шт.

3

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

6шт.

6

31734

PRESSURE PIPE

FRAME - scarifier

1шт.

7

31715

PIN

- frame to mounting plate

2шт.

8

132-152

PIN

- cotter, 1/4" x 1-3/4"

4шт.

9

30624

RING

CYLINDER - hydraulic, scarifier (See figure 148 for breakdown)

1шт.

10

34354

PIN - mounting, cylinder and safety lock to mounting plate

1шт.

11

31715

PIN

- mounting, Serial Range: cylinder-frame

1шт.

12

132-152

PIN

- cotter, 1/4" x 1-3/4"

4шт.

13

34356

LOCK - transport safety

1шт.

14

31375

WASHER

- safety lock

1шт.

15

34353

PIN - safety lock

1шт.

16

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

17

11469

SPRING

- safety lock

1шт.

18

30463

WEIGHT - scarifier

3шт.

19

CAS19055

PIN ASSY.

PIN - mounting, scarifier weight

6шт.

20

31752

LINE

TOOTH - scarifier

4шт.

21

31777

ROD - holding, scarifier tooth

1шт.

22

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.
