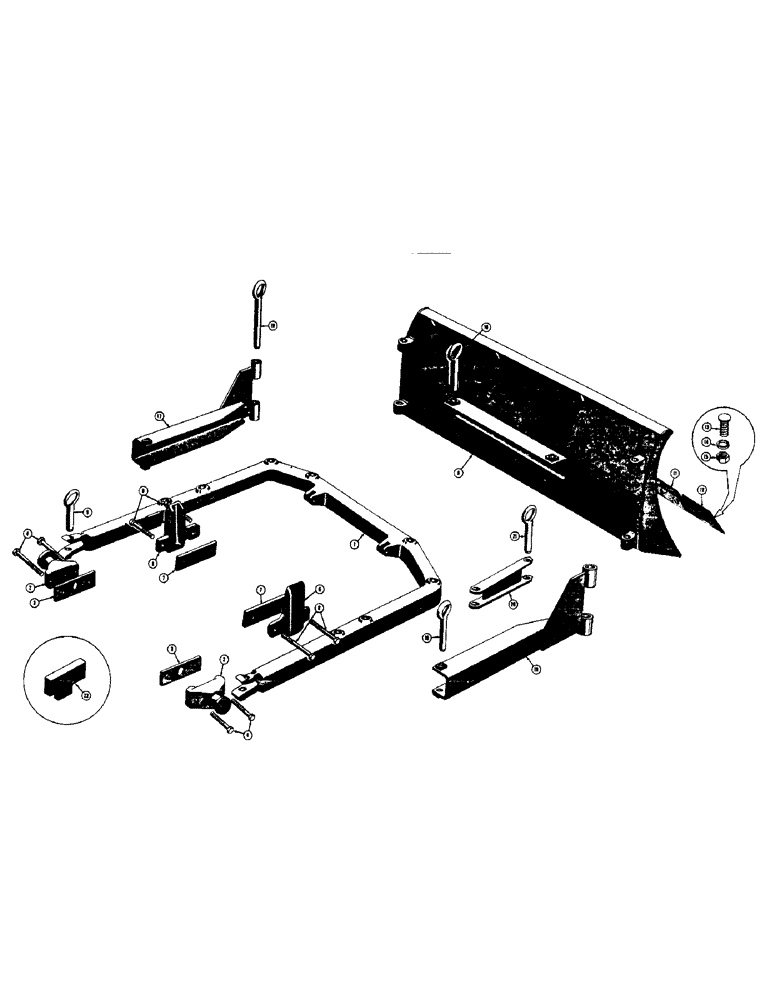

Запчасти Case 420 (116) - MECHANICAL ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

35617

SPACER

"C" FRAME - mechanical angling dozer (When stock is exhausted, order D27628)

1шт.

D27628

"C" FRAME - mechanical angling dozer

1шт.

2

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

3

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

4

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

5

38679

PIN - "C" frame to pivot bracket

2шт.

6

33961

CONNECTING LINK

PLATE - rub, dozer

2шт.

7

34047

LEVER

SPACER - rub plate

2шт.

8

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

9

16741

MOLDBOARD - mechanical angling dozer

1шт.

36637

MOLDBOARD - mechanical angling dozer (Backhoe models only)

1шт.

10

16720

SHROUD

PIN - moldboard to "C" frame

2шт.

11

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

12

16187

GUARD

BLADE - cutting, end

2шт.

13

19-832

BOLT

- plow, no. 3 head (1/2" - 13 NC x 2")

22шт.

14

92-8

LOCK WASHER,1/2"

22шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

22шт.

16

16757

FITTING

ARM - stabilizer, R.H.

1шт.

17

16758

ARM - stabilizer, L.H.

1шт.

18

16720

SHROUD

PIN - stabilizer arm to "C" frame

2шт.

19

16569

BACK PLATE

PIN - stabilizer, Serial Range: arm-moldboard

2шт.

20

16798

ARM - angling support

1шт.

21

16720

SHROUD

PIN - angling support arm

1шт.

22

33676

DRAWBAR SUPPORT

LIMIT - leaf spring

2шт.

19041

WEIGHT - used with 36637 moldboard on backhoe models only (When stock is exhausted, order D28845) Not shown

1шт.

D28845

WEIGHT - used with 36637 moldboard on backhoe models only (See 19041) Not shown

1шт.
