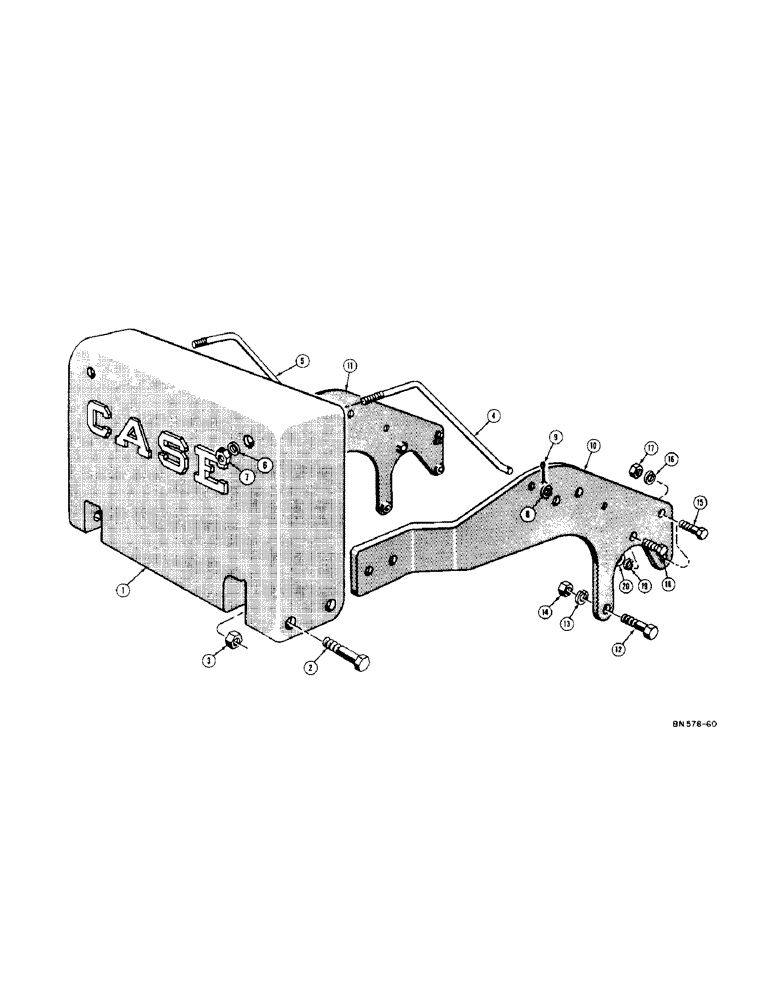

Запчасти Case 420 (110) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS - 1 - 14 NF x 5-1/2

4шт.

3

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

4шт.

4

D21392

ROD - support, R.H.

1шт.

5

D21393

ROD - support, L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

131-154

LOCK NUT,5/8"-18, GA

NUT - self locking (5/8" - 18 NF)

2шт.

8

95-10

WASHER,5/8"

- standard wrot () 5/8"

2шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

D21263

ARM - counterweight support, R.H.

1шт.

11

D21264

ARM - counterweight support, L.H.

1шт.

12

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1712

NUT,3/4"-16, G5, Hvy

- hex., heavy (3/4" - 16 NF)

2шт.

15

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18 NF x 2-3/4

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

18

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS - 1/2 - 20 NF x 2-3/4

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.
