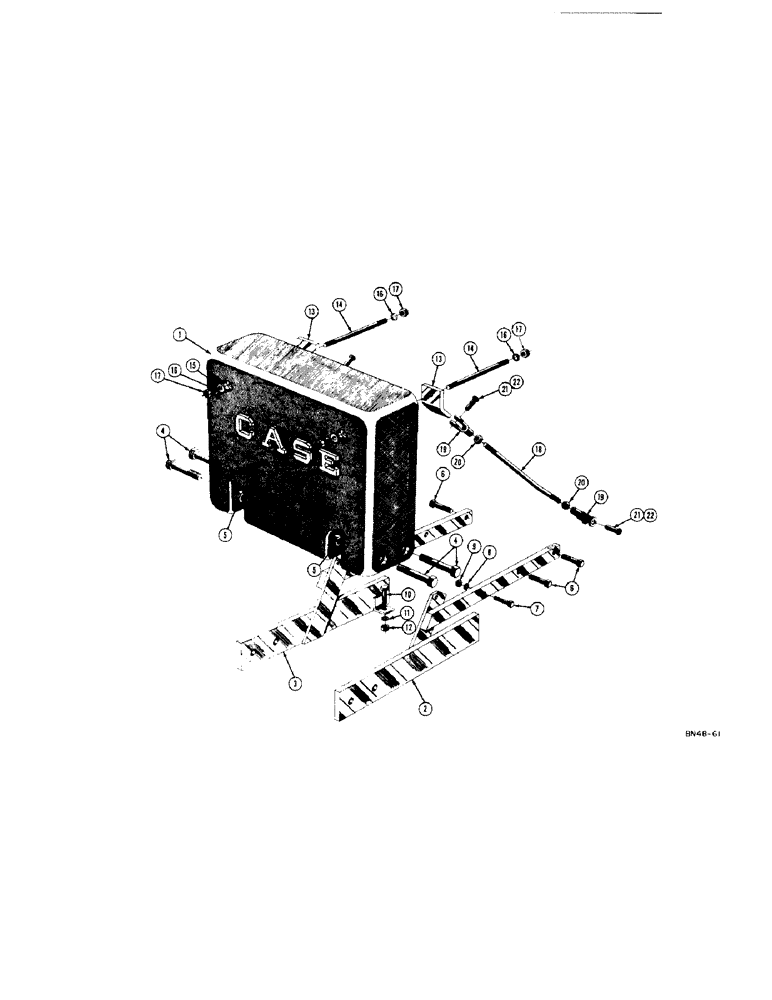

Запчасти Case 420 (108) - REAR COUNTERWEIGHT (1400 LB.) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

34459

BRACKET - counterweight mounting, R.H.

1шт.

3

34460

BRACKET - counterweight mounting, L.H.

1шт.

4

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS - counterweight to bracket (1 - 14 NF x 5-1/2)

4шт.

5

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

4шт.

6

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - mounting bracket (5/8 - 18 NF x 2-3/4)

2шт.

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - mounting bracket (5/8 - 18 NF x 4)

2шт.

7

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - mounting bracket (1/2 - 20 NF x 2-1/2)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

10

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

Mounting bracket Hex, 5/8"-18 x 1 1/2", G5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

13

32167

STRAP - attaching

2шт.

14

32169

GEAR

ROD - holding

2шт.

15

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

2шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

18

33432

ROD - brace

2шт.

19

O2701AB

X

END - yoke, adjustable

4шт.

20

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

21

O2499AB1

X

PIN - yoke

4шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.
