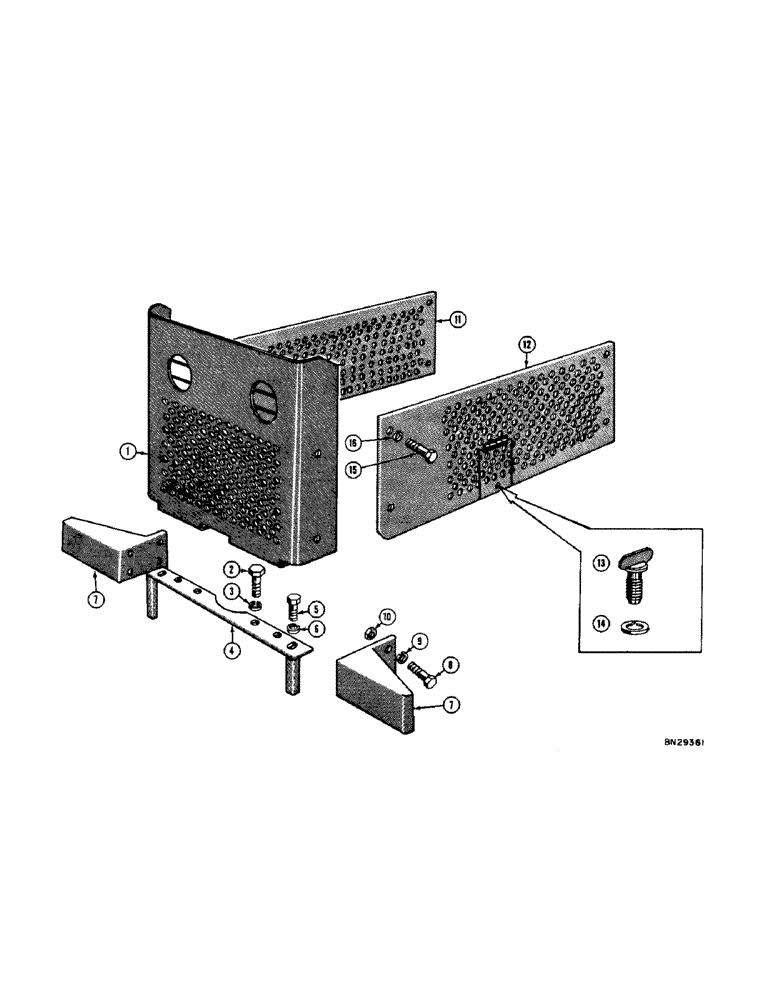

Запчасти Case 420 (078) - FORESTRY RADIATOR GUARD, SIDE PLATES, AND BUMPER EXTENSIONS (05) - UPPERSTRUCTURE CHASSIS

1

D23235

GUARD - radiator and light

1шт.

2

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

D23230

PLATE - mounting, radiator and light guard

1шт.

5

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

D23396

EXTENSION - forestry bumper

2шт.

8

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

11

D23238

PLATE - side, R.H.

1шт.

12

D23240

PLATE - side, L.H.

1шт.

14

36459

SPARE PART

WASHER - retaining (17/64" I.D. x 5/8" O.D. x 1/32" thick)

1шт.

15

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.
