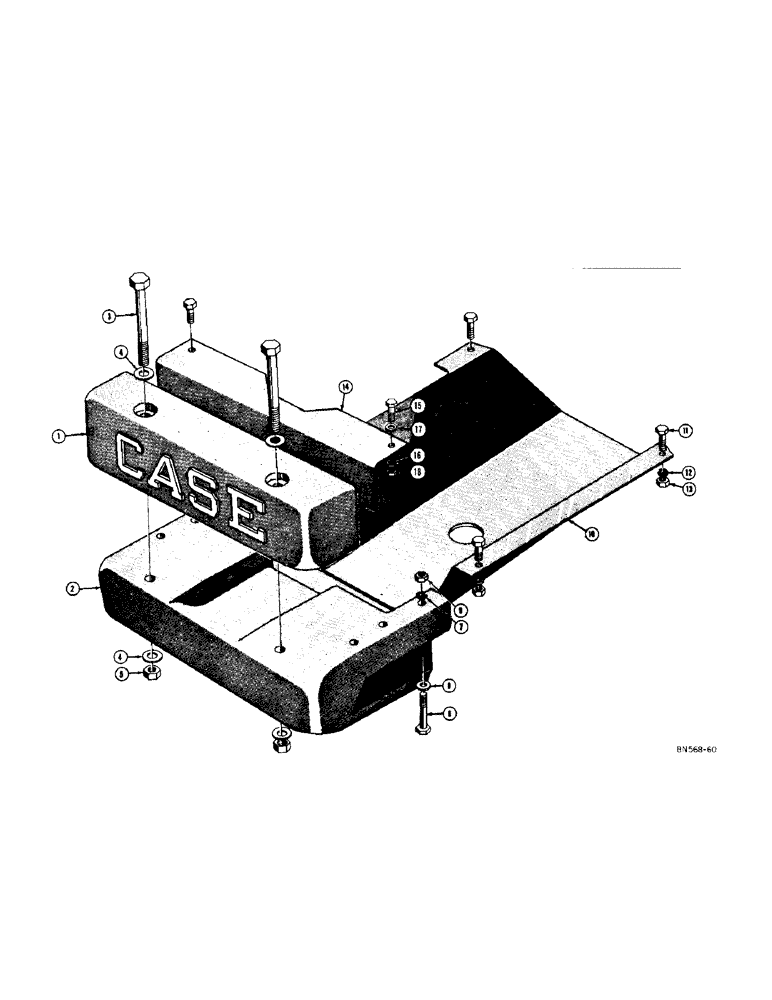

Запчасти Case 420 (076[1]) - FRONT COUNTERWEIGHT, BUMPER, AND SPECIAL CRANKCASE GUARD (05) - UPPERSTRUCTURE CHASSIS

1

R26023

WEIGHT

COUNTERWEIGHT - upper

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower

1шт.

3

14-10124

HHCS - 5/8 - 18 NF x 7-3/4

2шт.

4

95-10

WASHER,5/8"

- standard wrot () 5/8"

4шт.

5

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

2шт.

6

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

- standard wrot 1/2"

6шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

6шт.

10

D26696

GUARD - crankcase

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

4шт.

14

D23283

BUMPER - front

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

2шт.
