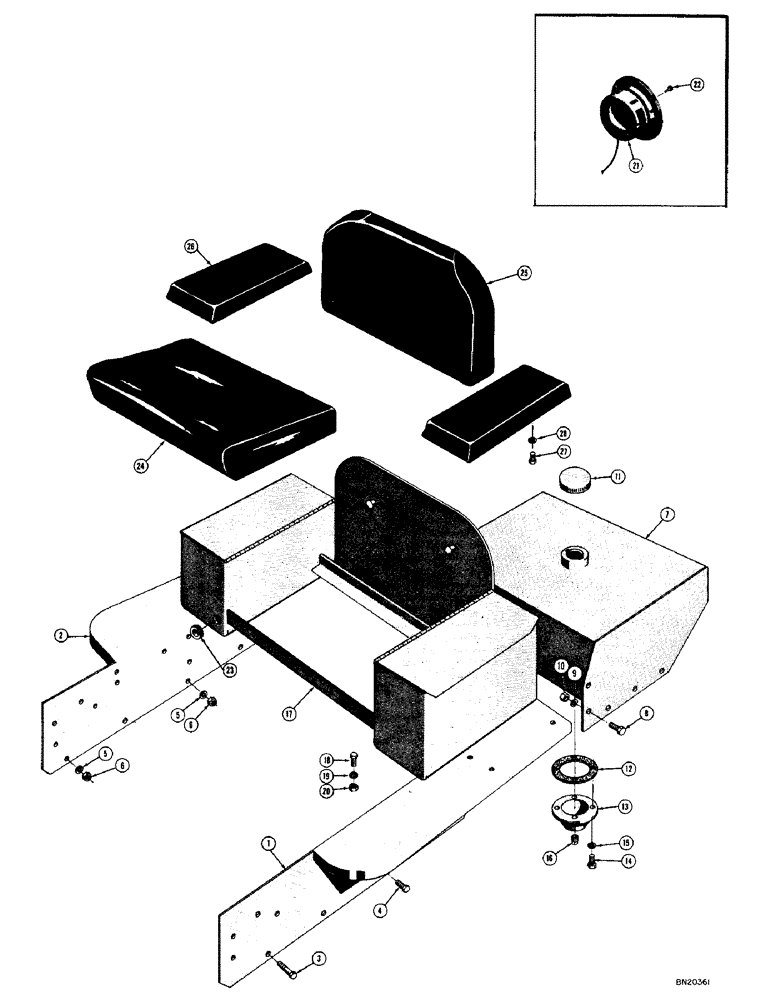

Запчасти Case 420 (074) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

38488

HYD CONNECTOR

FENDER - L.H., standard

1шт.

38746

DECAL

FENDER - L.H., loader models only

1шт.

D21125

FENDER - L.H., forestry model only

1шт.

2

38489

HYD CONNECTOR

FENDER - R.H., standard

1шт.

38747

FENDER - R.H., loader models only

1шт.

D21124

FENDER - R.H., forestry model only

1шт.

3

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

5шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

5

92-8

LOCK WASHER,1/2"

7шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

7шт.

7

38802

WASHER

TANK - fuel, 8 gal., up to serial no. 3010010, use D24866

1шт.

When installing replacement fuel tank on models up to serial no. 3010010, it may be necessary to relocate the angle braces on the seat.

1шт.

D24866

TANK - fuel, 10 gal., serial no. 3010010 and after

1шт.

When installing replacement fuel tank on models up to serial no. 3010010, it may be necessary to relocate the angle braces on the seat.

1шт.

8

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

10шт.

9

92-6

LOCK WASHER,3/8"

10шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

10шт.

11

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

12

35621

GASKET

- drain cover

1шт.

13

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - drain, fuel tank

1шт.

14

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

17

D21051

SEAT AND BACK ASSY

1шт.

18

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

6шт.

21

30903

LIGHT - tail, 12 volt

1шт.

33686

BULB

- tail light (Not shown)

1шт.

22

187-29

SCREW

- self tapping, tail light

3шт.

23

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, battery cable

1шт.

24

D27691

X

CUSHION - seat

1шт.

25

D27690

CUSHION - seat back

1шт.

26

D27693

ARMREST

CUSHION - arm rest

2шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
