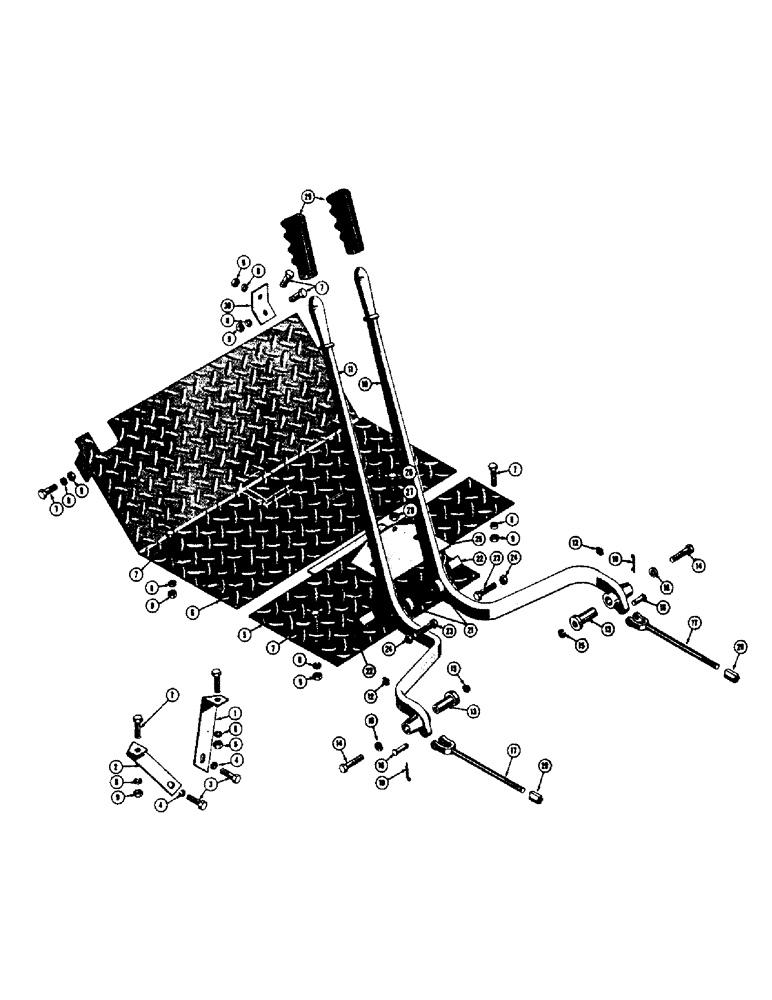

Запчасти Case 420 (048) - FLOOR PLATE, STEERING LEVERS AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

33605

EXHAUST MANIFOLD

BRACE - floor plate, R.H.

1шт.

2

33606

BRACE - floor plate, L.H.

1шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

D21103

PLATE - floor, rear

1шт.

6

D21104

PLATE - floor, front

1шт.

7

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

9шт.

8

92-6

LOCK WASHER,3/8"

9шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

9шт.

10

D27470

LEVER - brake, R.H.

1шт.

11

D27469

LEVER - brake, L.H.

1шт.

12

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, drive type

2шт.

13

86516614

COVER

- brake lever

2шт.

14

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - 9/16 - 12 NC x 3-3/4

2шт.

15

92-9

BEARING WASHER,9/16"

2шт.

16

195-37

WASHER,9/16"

- plain (19/32" I.D. x 1-3/16" O.D. x 1/8" thick)

2шт.

17

35505

ROD

- yoke, steering

2шт.

18

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

20

11471

NUT

- steering rod

2шт.

21

33604

RATCHET

- brake lever

2шт.

22

36880

SPARE PART

STOP

2шт.

23

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2

2шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24 NF)

2шт.

25

35503

FLANGE

PLATE - ratchet, brake lever

1шт.

26

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

29

31400

CLAMP

GRIP - rubber, brake lever

2шт.

30

37942

BRACKET - support, floor plate

1шт.
