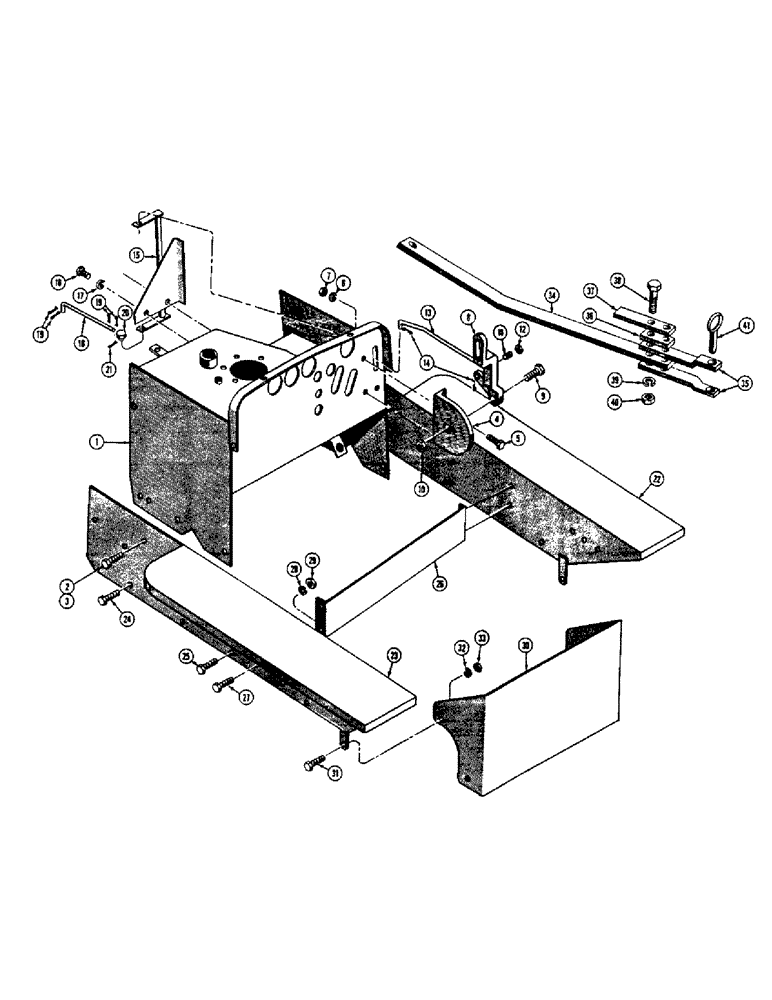

Запчасти Case 420 (040) - FORESTRY COWL, DASH, THROTTLE, ETC. (05) - UPPERSTRUCTURE CHASSIS

1

D23397

COWL AND DASH - forestry

1шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

3

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4

1шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF) Not shown

2шт.

4

30915

PROTRACTOR - throttle

1шт.

5

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

8

30916

LEVER - throttle

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET ASSY

1шт.

30919

POPPET

1шт.

30918

NUT

SPRING - poppet

1шт.

30917

CONTAINER - poppet

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex. jam (1/2" - 20 NF)

1шт.

13

D21087

ROD - throttle

1шт.

14

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

15

D21077

THROTTLE ASSY

1шт.

16

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

D21086

LINK - throttle

1шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

20

D21092

SWIVEL - throttle

1шт.

21

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

22

D21124

FENDER - R.H., forestry

1шт.

23

D21125

FENDER - L.H., forestry

1шт.

24

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

92-8

LOCK WASHER,1/2"

Not shown 1/2"

4шт.

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF) Not shown

4шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF) Not shown

4шт.

26

D21398

BRACE - fender, forestry model

1шт.

27

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

30

D21408

GUARD - brush, rear

1шт.

31

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

D21095

DRAWBAR - forestry, complete (When stock is exhausted, order D26928)

1шт.

34

13039

BUSHING

DRAWBAR - forestry

1шт.

35

D21094

HITCH - drawbar

2шт.

36

NLS

NO LONGER SERVICED

SPACER - hookover

1шт.

37

NLS

NO LONGER SERVICED

STRAP - hookover

1шт.

38

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16 NF x 4-1/2

2шт.

39

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

40

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

2шт.

41

13073

AXLE PIN

PIN - drawbar

1шт.

D26928

DRAWBAR - forestry, complete

1шт.

D26923

DRAWBAR - forestry (Not shown)

1шт.

41

13073

AXLE PIN

PIN - hitch

1шт.
