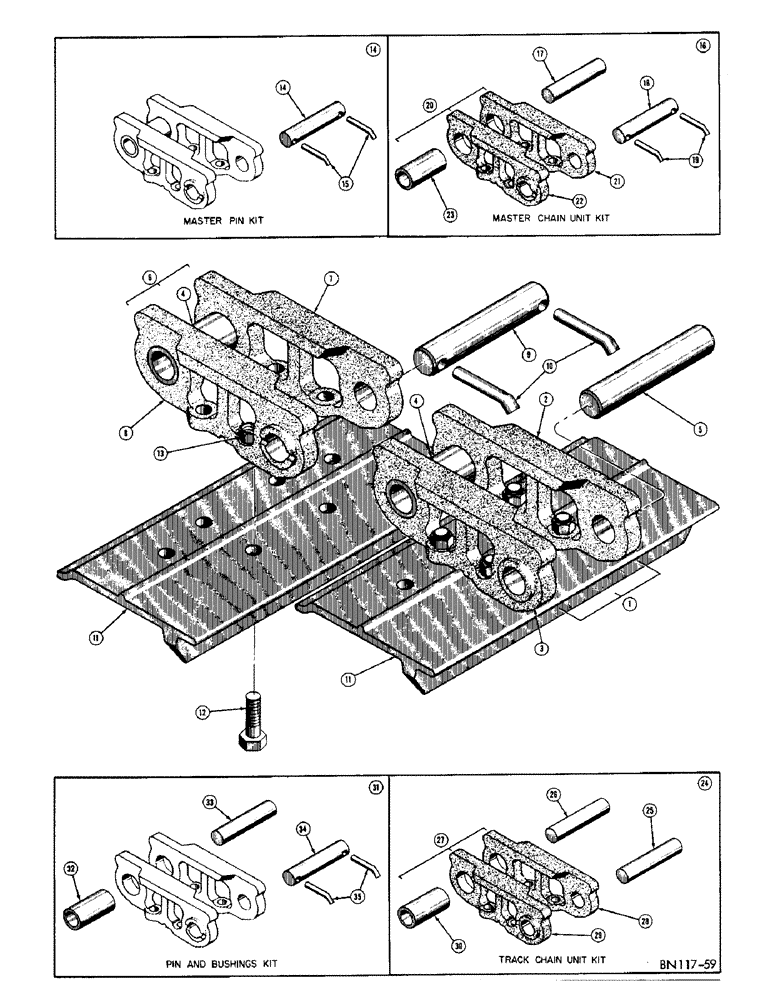

Запчасти Case 420 (070) - TRACK CHAIN (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
5481
CHAIN - 15 unit, complete
2шт.
5482
CHAIN - 16 unit, complete
2шт.
1
34571
KIT
UNIT ASSY - track (See D21014)
15шт.
2
30638
X
LINK - track, R.H. (See D21014)
15шт.
3
R41049
DRAG LINK
LINK - track, L.H. (See D21014)
15шт.
4
NLS
NO LONGER SERVICED
- link (See D21013, 14, 15)
15шт.
5
32831
PIN
- track, standard (See D21014; also items #17 and #33)
15шт.
6
34589
X
UNIT ASSY - master (See D21013)
1шт.
7
R41050
LINK
- master, R.H. (See D21013)
1шт.
8
33286
LINK
- master, L.H. (See D21013)
1шт.
9
D21012
PIN
- master (See item #14)
1шт.
10
CASCASCASCAS32995
PIN - lock, master pin
2шт.
11
32849
PLATE - grouser (Standard 11") (See figure 72 for other track plates)
62шт.
12
46944
BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8
HHCS - special (7/16 - 20 NF x 1-1/2)
248шт.
13
25-277
NUT - hex., special (7/16 - 20 NF)
248шт.
14
D21012
PIN
KIT - master pin
4шт.
15
CASCASCASCAS32995
PIN - lock, master pin kit
2шт.
16
D21013
KIT
- track master unit, chain
4шт.
17
32836
PIN
- track, service (.003" oversize), master chain unit kit
1шт.
18
D21012
PIN
- master, chain unit kit
1шт.
19
CASCASCASCAS32995
PIN - lock, master pin, chain unit kit
2шт.
20
34589
X
UNIT ASSY - master, chain unit kit
1шт.
21
R41050
LINK
- master, R.H., chain unit kit
1шт.
22
33286
LINK
- master, L.H., chain unit kit
1шт.
24
D21014
KIT
- track chain unit
58шт.
25
32831
PIN
- track, standard, chain unit kit
1шт.
26
32836
PIN
- track, service (.003" oversize), chain unit kit
1шт.
27
34571
KIT
UNIT ASSY - track, chain kit
1шт.
28
30638
X
LINK - track, R.H., chain unit kit
1шт.
29
R41049
DRAG LINK
LINK - track, L.H., chain unit kit
1шт.
31
D21015
KIT - pins and bushings
1шт.
32
NLS
NO LONGER SERVICED
- link, pin kit
64шт.
33
32836
PIN
- track, service (.003" oversize), bushing kit
60шт.
34
D21012
PIN
- master, bushing kit
4шт.
35
CASCASCASCAS32995
PIN - lock, master pin, bushing kit
2шт.
Выбрано товаров: 38
