Запчасти Case 420 (068) - TRACK FRAME AND RECOIL SPRING (04) - UNDERCARRIAGE

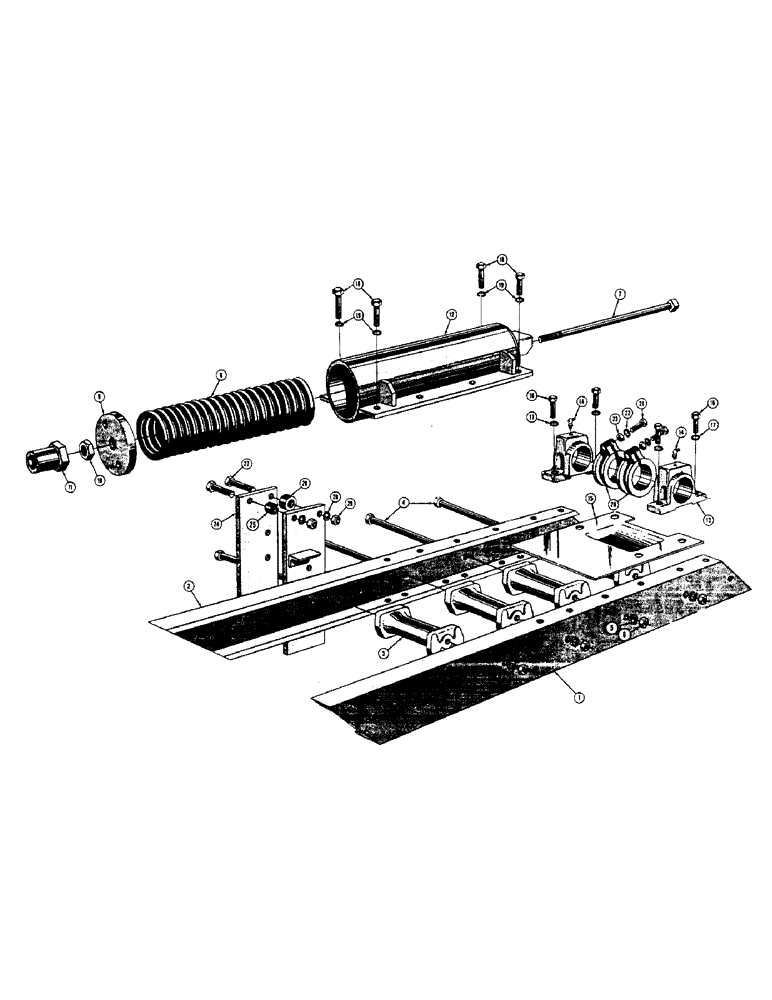

Схема запчастей Case 420 - (068) - TRACK FRAME AND RECOIL SPRING (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

31832

CHANNEL - track, outer (R.H.)

1шт.

31833

CHANNEL - track, outer (L.H.)

1шт.

2

33945

CHANNEL - track, inner (R.H.)

1шт.

33946

COVER PLATE

CHANNEL - track, inner (L.H.)

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track channel

8шт.

4

D23459

HHCS - 3/4 - 16 NF x 11-1/8

8шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

6

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

8шт.

30478

SPRING - R.H. recoil, complete

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting (1" - 14 NF)

1шт.

D20845

ADJUSTMENT SCREW

- track adjusting (1" - 8 NC)

1шт.

8

D26084

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting (1" - 14 NF)

1шт.

D20844

NUT

- tension adjusting (1" - 8 NC)

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex. jam (1" - 14 NF)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- hex. jam (1" - 8 NC)

1шт.

11

51200219

NUT

- track adjusting (1" - 14 NF)

1шт.

D20843

NUT,1" - 8

- track adjusting (1" - 8 NC)

1шт.

12

32140

HOUSING - recoil spring, R.H.

1шт.

30479

DECAL

SPRING - L.H. recoil, complete

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting (1" - 14 NF)

1шт.

D20845

ADJUSTMENT SCREW

- track adjusting (1" - 8 NC)

1шт.

8

D26084

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting (1" - 14 NF)

1шт.

D20844

NUT

- tension adjusting (1" - 8 NC)

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex. jam (1" - 14 NF)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- hex. jam (1" - 8 NC)

1шт.

11

51200219

NUT

- track adjusting (1" - 14 NF)

1шт.

D20843

NUT,1" - 8

- track adjusting (1" - 8 NC)

1шт.

12

32141

FITTING

HOUSING - recoil spring, L.H.

1шт.

13

D27536

BLOCK

- pivot

4шт.

14

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, 67-1/2 degrees (1/4" NPT)

4шт.

15

32542

PAN - mud

2шт.

16

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NF x 1-3/4

8шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

18

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

20

15101

CLAMP - track frame mounting

4шт.

21

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8 - 18 NF x 3

8шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

23

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

8шт.

24

32181

PLATE - forward support

2шт.

25

1954811C1

BALL

SPACER

6шт.

26

32332

SPACER

2шт.

27

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8 - 18 NF x 3

8шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

8шт.

Выбрано товаров: 47
