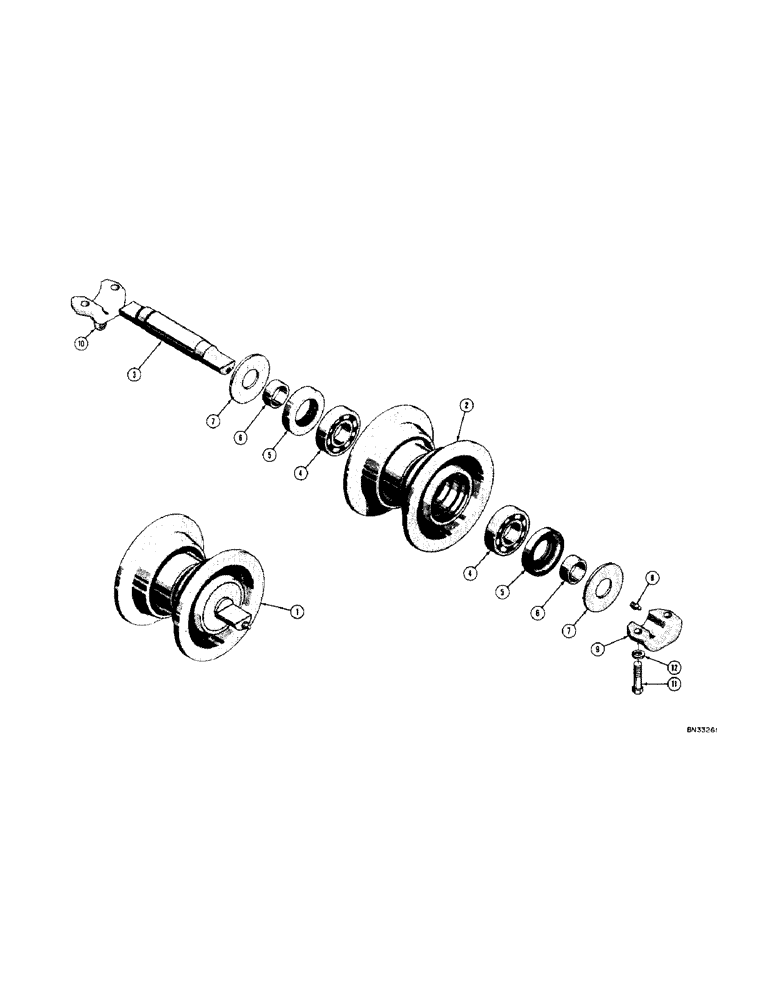

Запчасти Case 420 (064) - TRACK ROLLER (04) - UNDERCARRIAGE

1

32032

X

ROLLER - track, complete (See 37431)

6-8шт.

2

32076

BEARING, ROLLER

HUB - track roller

1шт.

5923

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

9

32055

BOX

- track roller (Outer)

8шт.

10

51200225

CAP

BOX - track roller (Inner)

8шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

24шт.

12

92-8

LOCK WASHER,1/2"

24шт.
