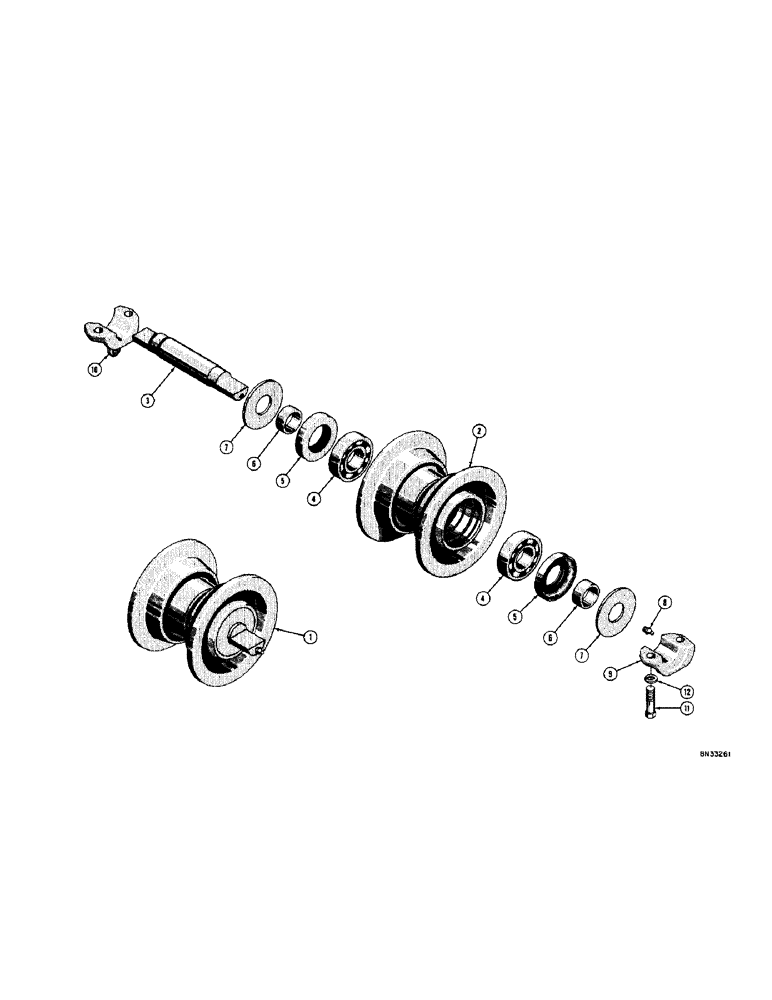

Запчасти Case 420 (064[1]) - TRACTOR ROLLER (OPTIONAL) (04) - UNDERCARRIAGE

1

37431

OIL SEAL

ROLLER - track, rear (Optional - backhoe models only)

2шт.

2

31828

HUB - track roller

1шт.

R3308

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

- ball

2шт.

5

40633

PLATE

SEAL - oil, track roller

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

9

32055

BOX

- track roller

4шт.

10

33830

CAP

BOX - track roller

4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.
