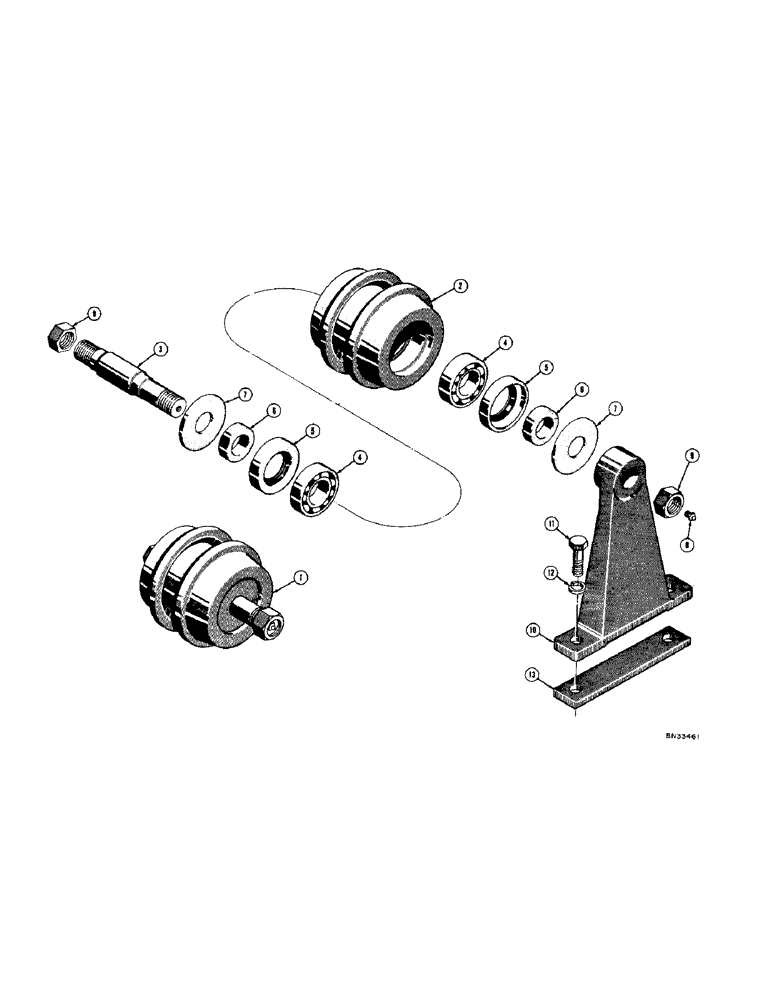

Запчасти Case 420 (062[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

1

37430

ROLLER

KIT - track carrier roller

2шт.

2

31163

ROLLER

HUB - track carrier roller

1шт.

D10793

X

KIT - service, track carrier roller

1шт.

3

30707

SHAFT

- track carrier roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

40633

PLATE

SEAL - oil

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

10

30718

BRACKET

- track carrier roller

2шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

D27036

SPACER - track carrier roller bracket (If used)

2шт.
