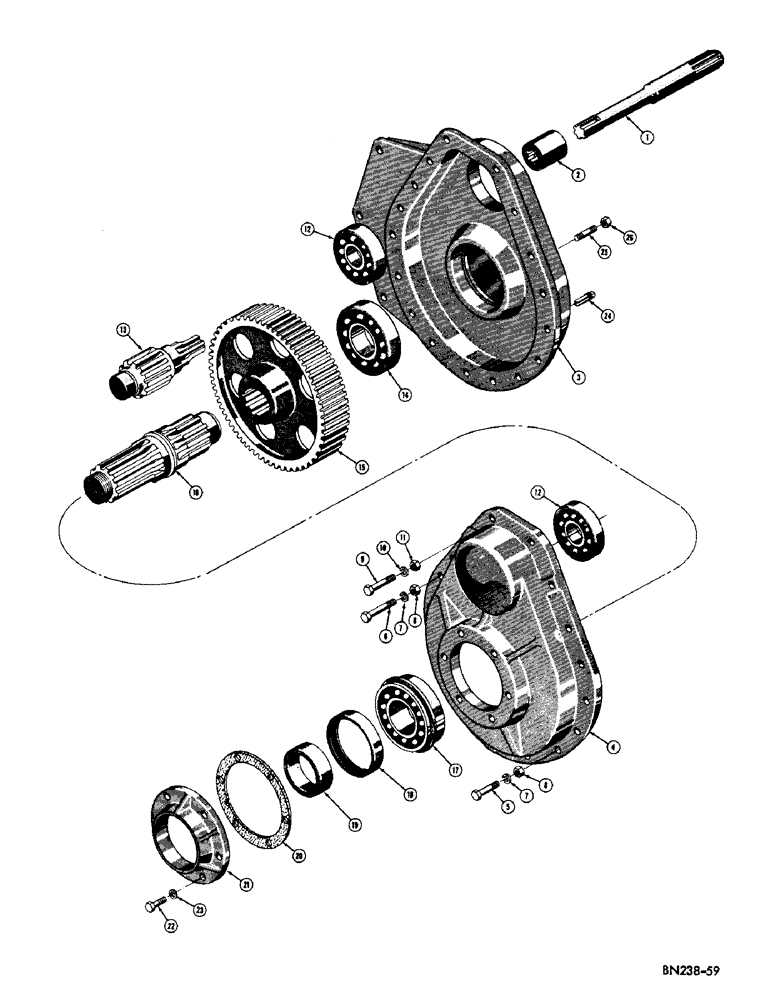

Запчасти Case 420 (058) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

- axle, final drive

2шт.

11830-600

SHAFT - final drive, 60" gauge tractor

2шт.

11830-720

SHAFT - final drive, 72" gauge tractor

2шт.

2

51200026

COUPLING

- final drive

2шт.

3

11816

RIVET

HOUSING - final drive, R.H. inner

1шт.

11817

RIVET

HOUSING - final drive, L.H. inner

1шт.

4

NLS

NO LONGER SERVICED

HOUSING - final drive, outer (Use D24658)

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order references 5 thru 11 listed under D24658

1шт.

5

14-726

HHCS - 7/16 - 20 NF x 1-5/8 Hex, 7/16"-20 x 1 5/8", G5

24шт.

6

14-740

BOLT,Hex, 7/16" - 20 x 2-1/2"

HHCS - 7/16 - 20 NF x 2-1/2

10шт.

7

92-7

LOCK WASHER,7/16"

34шт.

8

25-117

NUT,7/16"-20, G5

- hex. (7/16 - 20 NF)

34шт.

4

D24658

HOUSING

- final drive, outer

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order references 5 thru 11 listed under D24658

1шт.

5

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

18шт.

6

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

10шт.

7

92-7

LOCK WASHER,7/16"

28шт.

8

25-107

NUT,7/16"-14, G5

- hex. (7/16 - 14 NC)

28шт.

9

D24688

BOLT

BOLT - body fit (1/2 - 13 NC x 2-1/8)

6шт.

10

92-8

LOCK WASHER,1/2"

6шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

6шт.

12

40002

BALL BEARING

- final drive pinion

4шт.

13

51200027

SHAFT

PINION - final drive

2шт.

14

40003

BEARING

- final drive

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

- final drive, 48" gauge standard tractor

2шт.

17

D14979

BEARING

BEARING - outer, final driveshaft

2шт.

18

NLS

NO LONGER SERVICED

SEAL - oil, final driveshaft

2шт.

19

51200024

SPACER

- final driveshaft

2шт.

20

CAS11828

GASKET

- seal retainer

2шт.

21

11827

RETAINER

- seal, final driveshaft

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

12шт.

24

D21396

PLUG, DRAIN

PLUG - pipe, magnetic (1/2 NPT)

4шт.

25

R29874

STUD

- mounting, final drive

16шт.

26

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8 - 18 NF)

16шт.
