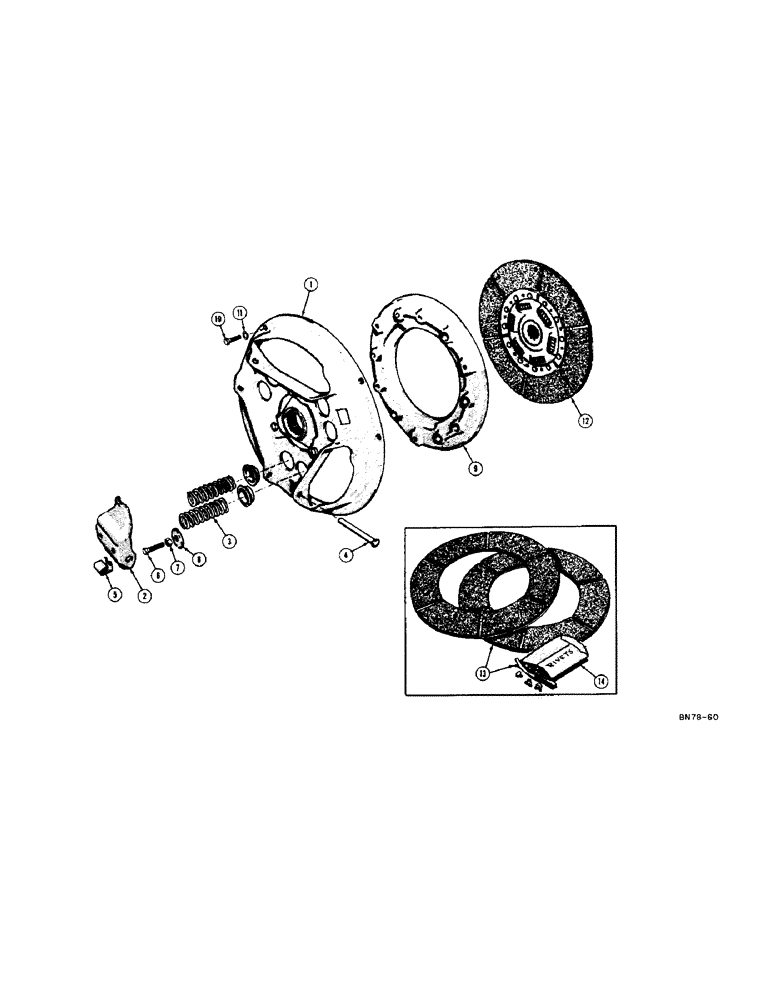

Запчасти Case 420 (046) - CLUTCH (03) - TRANSMISSION

G11002

PLATE

- pressure, clutch

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET AND HUB - clutch

1шт.

2

G46059

LEVER

- clutch

3шт.

3

G46058

SPRING

- lever

3шт.

4

G46060

PIN

- pivot

3шт.

5

G46061

CLIP

- clutch return

3шт.

6

G49004

SCREW

- adjusting

3шт.

7

G49005

NUT - jam, adjusting screw

3шт.

8

V20215

ADJUSTMENT ROD

WASHER - adjusting screw

3шт.

9

G4501

PLATE

- pressure

1шт.

10

G11207

BOLT

-, Serial Range: clutch-flywheel

6шт.

11

92-5

LOCK WASHER,5/16"

6шт.

12

G11079

LARGE PLATE

PLATE - friction, complete

1шт.

13

G45058

FACING

KIT - clutch lining (Includes linings and 30 - G49006 rivets)

1шт.

14

G49006

RIVET - clutch lining

24шт.
