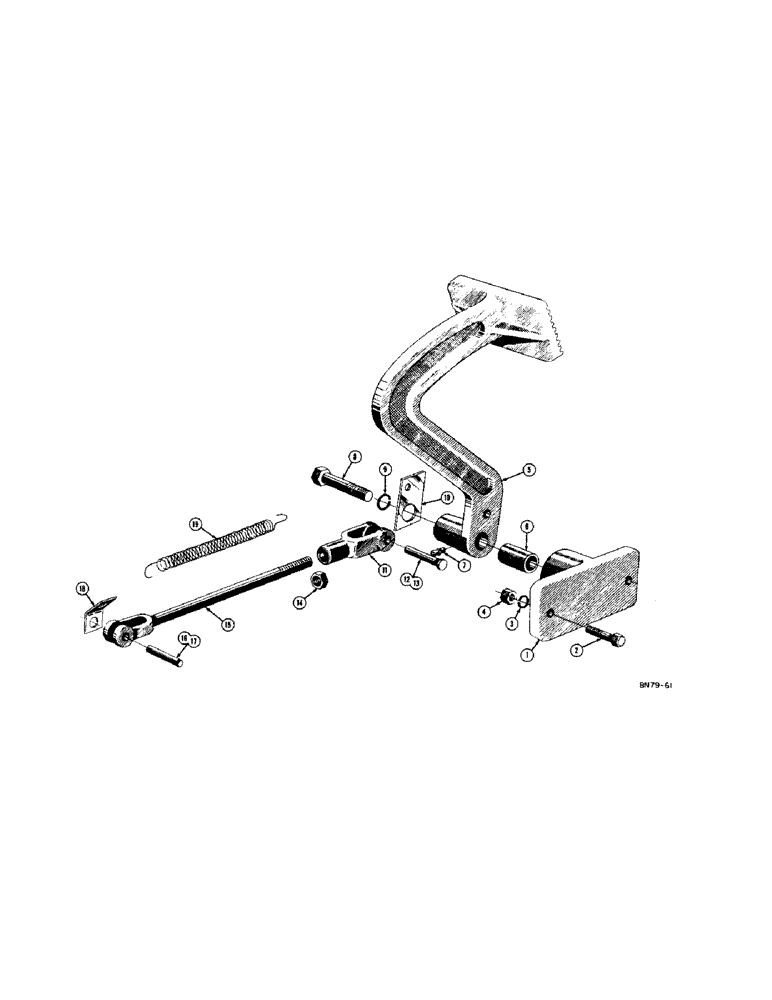

Запчасти Case 420 (042[1]) - CLUTCH PEDAL AND LINKAGE (03) - TRANSMISSION

1

11025

BELT, TRANSMISSION

BRACKET - mounting, clutch pedal

1шт.

2

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16 - 20 NF x 1-1/4

2шт.

3

92-7

LOCK WASHER,7/16"

2шт.

4

25-117

NUT,7/16"-20, G5

- hex. (7/16 - 20 NF)

2шт.

5

11030

SCREW

PEDAL - clutch

1шт.

6

11031

SPACER

BUSHING - clutch pedal

1шт.

7

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight drive type (1/4")

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

11470

BEARING

ANCHOR - return spring

1шт.

11

213-50

ADJUSTABLE CLEVIS,1/2"-20 x 4 3/16"

YOKE - end, adjustable

1шт.

12

O2499AB1

X

PIN - yoke

1шт.

13

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8" x 2"

1шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

1шт.

15

35869

ROD - clutch

1шт.

16

30623

KIT

PIN - clutch rod to clutch lever

1шт.

17

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8" x 2"

2шт.

18

NLS

NO LONGER SERVICED

- return spring

1шт.

19

11469

SPRING

- clutch pedal return

1шт.
