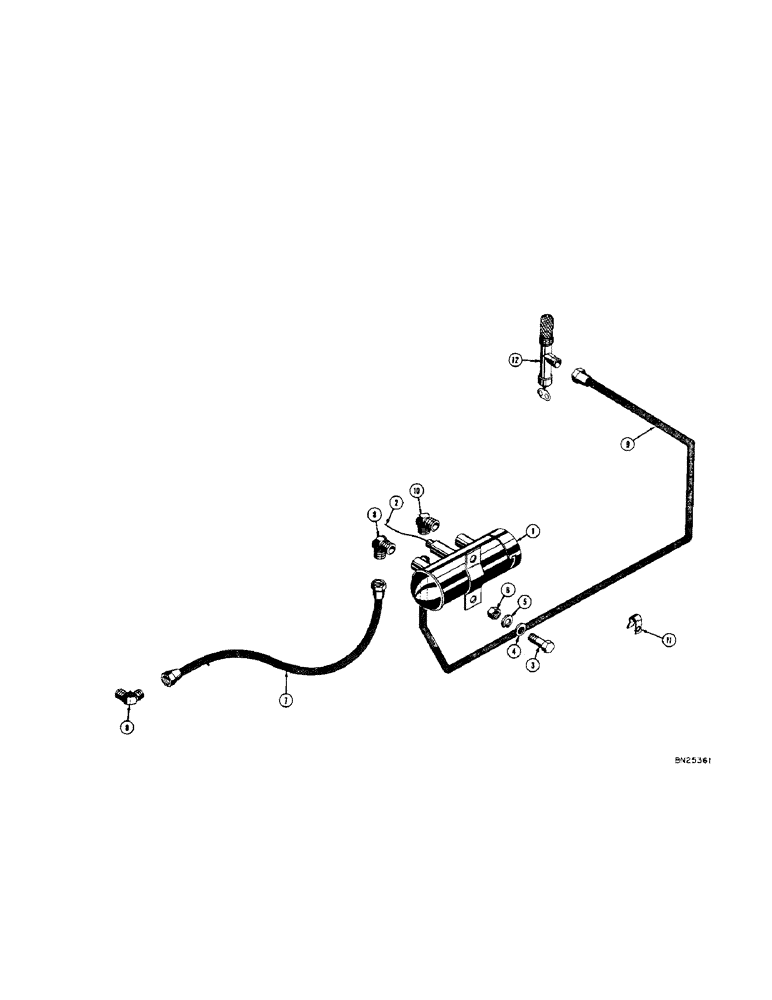

Запчасти Case 420 (024) - FUEL SYSTEM (02) - FUEL SYSTEM

1

38873

PUMP - fuel, electric (12 volt)

1шт.

2

32395

SEAL ASSY.

END - wire, bullet type

1шт.

3

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4

2шт.

4

195-18

WASHER,1/4"

- plain (9/32" I.D. x 5/8" O.D. x 1/16" thick)

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

2шт.

7

38796

CHAIN

HOSE - fuel line

1шт.

8

222-765

ELBOW,90 Degree, 1/2"-20, 45 Degree Fl x 1/8" NPT

- male, 90 degrees (1/8" NPT x 5/16" JIC)

2шт.

9

38795

HUB

TUBE - fuel line

1шт.

10

222-765

ELBOW,90 Degree, 1/2"-20, 45 Degree Fl x 1/8" NPT

- male, 90 degrees (1/8" NPT x 5/16" JIC)

1шт.

11

49832

CLAMP

- tube, fuel line

1шт.

12

O1972AB1

VALVE - fuel shut off

1шт.
