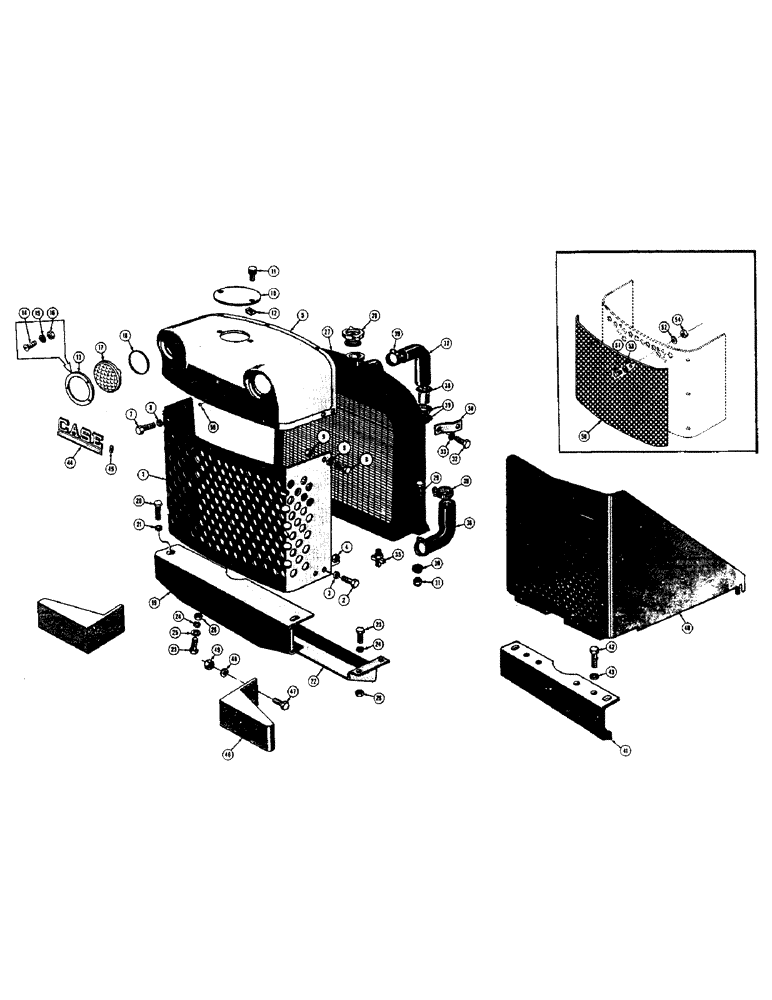

Запчасти Case 420 (034) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (01) - ENGINE

1

D21970

GRILLE - radiator

1шт.

2

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

5

D21966

CAP - grille

1шт.

6

174-206

RHMS - zinc plated, 3/8" - 24 NF x 1"

2шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

10

D21310

COVER - access, radiator cap

1шт.

11

G16716

X

SCREW - knurled head

2шт.

12

G48002

X

NUT - Tinnerman (1/4 - 20 NC)

2шт.

13

A11275

RING

- headlight retaining

2шт.

14

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head (Zinc plated)

6шт.

15

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

6шт.

16

129-15

NUT,#6-32

6шт.

17

A11280

LAMP

LIGHT - head, 12 volt

2шт.

18

A11276

GASKET

- headlight

2шт.

19

D23068

BUMPER

1шт.

20

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

36979

SPACER

SUPPORT - bumper

1шт.

23

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

26

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

27

D21839

RADIATOR

1шт.

D23733

X

GASKET - radiator, inside filler hole (Use D25826) Not shown

1шт.

28

D23732

X

CAP - pressure, radiator (4 P.S.I.) Use D25826

1шт.

D25826

CAP

- pressure, radiator (7 P.S.I) See D23732 and D23733

1шт.

29

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

30

D23003

SHOCK ABSORBER

WASHER - shock absorbing, radiator mounting

2шт.

31

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

32

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

D23002

BRACKET - support, radiator

2шт.

35

217-92

COCK

DRAIN COCK - radiator

1шт.

36

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet 1.75" ID x 4.56", SAE 20R4

1шт.

37

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet, Upper 1.75" ID x 5.13", SAE 20R4

1шт.

38

G10235

THERMOSTAT

1шт.

39

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- radiator hose #36, 1.81/2.75 Type F Worm

5шт.

40

D23236

GUARD - brush, optional equipment (Not applicable on loader models)

1шт.

41

D23232

BUMPER - used with brush guard only

1шт.

42

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

43

92-8

LOCK WASHER,1/2"

4шт.

44

A11320

PLATE

NAME PLATE - Case

1шт.

45

A11319

X

CLIP - retainer, name plate

2шт.

46

D23396

EXTENSION - bumper, optional equipment

2шт.

47

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

48

92-8

LOCK WASHER,1/2"

8шт.

49

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

D23230

PLATE - mounting, brush guard (Used with front weights only) optional equipment (Not shown)

1шт.

50

D11170M

SCREEN - grille, optional equipment

1шт.

51

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

8шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

53

95-4

WASHER,1/4"

- standard wrot () 1/4"

8шт.

54

25-104

NUT,1/4"-20, G5

8шт.

55

205-4

X

BUTTON - plug

2шт.
