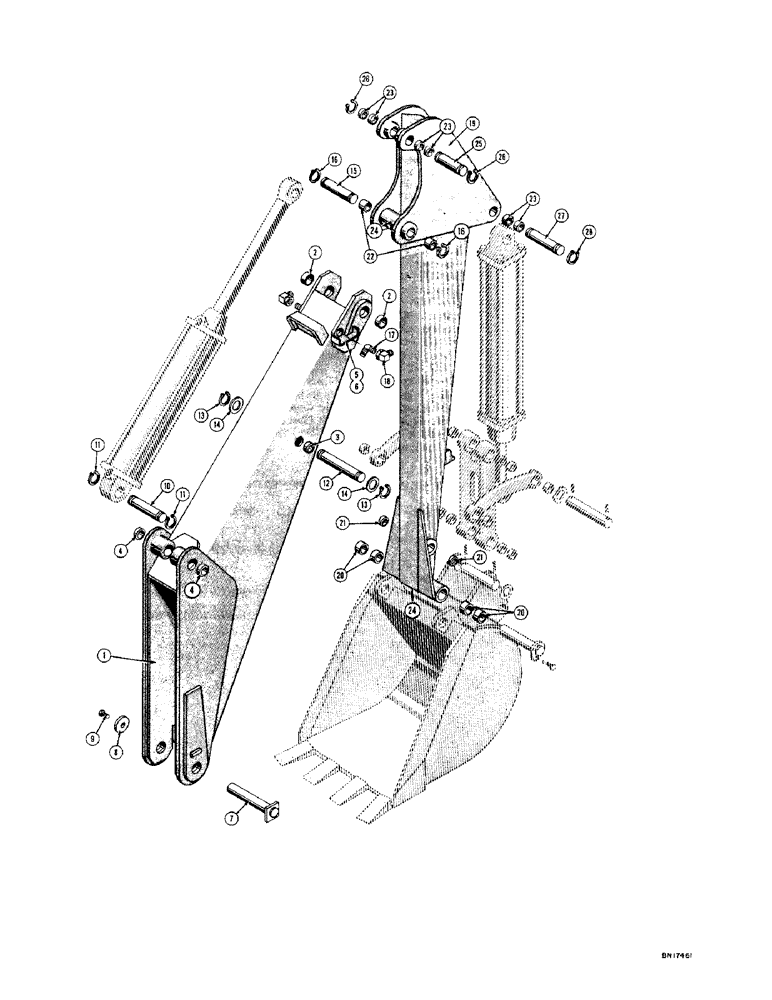

Запчасти Case 420 (204) - BACKHOE BOOM AND DIPPER ARM REPLACEMENT KITS, (FOR FIELD INSTALLATION) (09) - BOOMS

D11428

KIT - backhoe boom, replacement

1шт.

1

D28650

BOOM - backhoe (36098)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

2

D20201

BUSHING

- boom, dipper arm pivot (30613)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

3

D20201

BUSHING

- boom cylinder pivot pin, upper (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

4

D21903

BUSHING

- crowd cylinder pivot pin, lower (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

5

D28614

GUARD - bucket cylinder hose, L.H. (None)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

6

D28615

BRONZE BUSHING

GUARD - bucket cylinder hose, R.H. (None)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

7

D28612

PIN - pivot, boom to tower (D23705)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

8

D25991

WASHER - D28612 pin (1-1/32" I.D. x 2-1/2" O.D. x 1/2" thick) (34948)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

9

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

HHCS - special nylock (1" - 8 NC x 2") (14-1220)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

10

D28646

PIN - pivot, crowd cylinder to boom (D23715)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

11

D25279

SNAP RING,M35, Int

- D28646 pin (D21856)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

12

D28647

PIN - boom cylinder pivot, upper (D23714)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

13

D25279

SNAP RING,M35, Int

- D28647 pin (D21856)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

14

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- D28647 pin (1-33/64" I.D. x 2-1/2" O.D. x 12 gauge) (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

15

D28648

PIN,1.5" OD x 10 7/16" L

- pivot, dipper arm to boom (D23710)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

16

D25279

SNAP RING,M35, Int

- D28648 pin (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

17

D28005

ELBOW - bulkhead, 90 degrees (5/8" JIC) (D21699)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

18

50003

ELBOW

- swivel, 90 degrees (5/8" JIC) (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

D11429

KIT - backhoe dipper arm, replacement

1шт.

5

D28614

GUARD - bucket cylinder hose, L.H. (None)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

6

D28615

BRONZE BUSHING

GUARD - bucket cylinder hose, R.H. (None)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

17

D28005

ELBOW - bulkhead, 90 degrees (5/8" JIC) (D21699)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

18

50003

ELBOW

- swivel, 90 degrees (5/8" JIC) (None)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

19

D28656

ARM - dipper (36030)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lower end of dipper arm, bucket mounting (Same)

4шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

21

D23444

BUSHING

- lower end of dipper arm, link mounting (30634)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

22

D21903

BUSHING

- boom pivot (Same)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

23

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- crowd and bucket cylinder pivot pins (None)

8шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

25

D28649

PIN

- pivot, crowd cylinder to dipper arm (D23715)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

26

D25279

SNAP RING,M35, Int

- D28649 pin (D21856)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

27

D28649

PIN

- pivot, bucket cylinder to dipper arm (D23715)

1шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.

28

D25279

SNAP RING,M35, Int

- D28649 pin (D21856)

2шт.

(1) original equipment part number; (2) none used originally; (3) or part supplied in kit is same as original equipment.

1шт.
