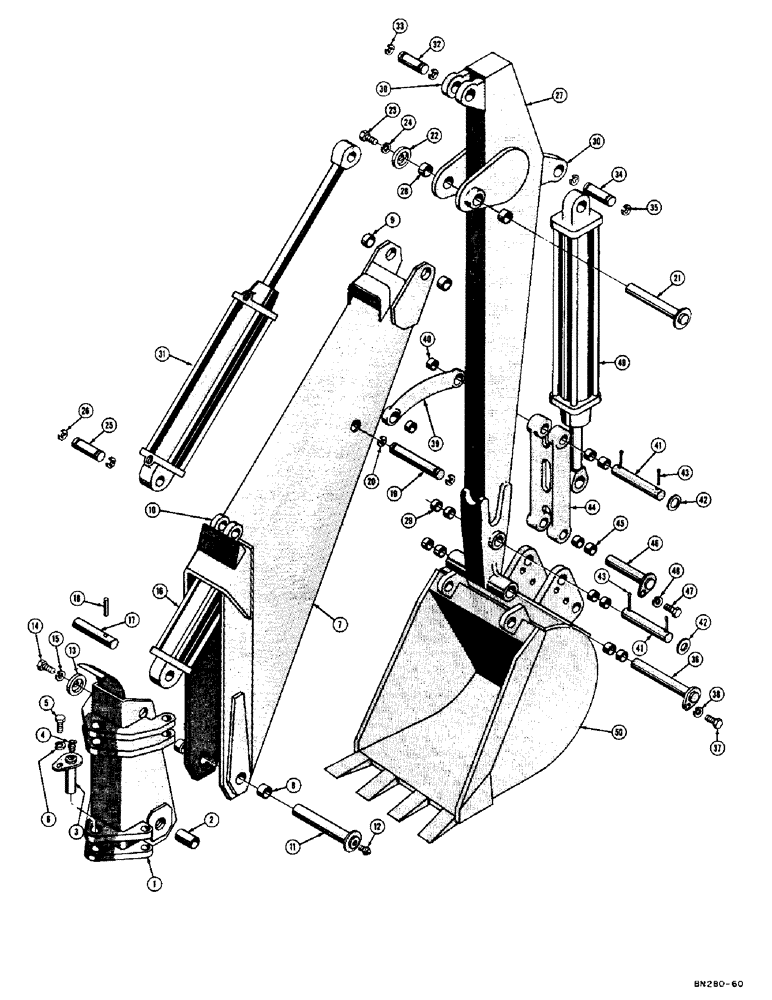

Запчасти Case 420 (200) - TOWER, BOOM, DIPPER ARM, AND BUCKETS, TOWER AND BOOM (09) - BOOMS

1

34727

TOWER - backhoe (Use D23331)

1шт.

D23331

TOWER - backhoe

1шт.

2

31139

X

BUSHING - tower, boom pivot (Use D23870)

2шт.

D23870

BUSHING

- tower, boom pivot

2шт.

3

34895

PIN - pivot, mounting, Serial Range: bracket-tower

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4

2шт.

6

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown

2шт.

7

36098

BOOM - backhoe

1шт.

8

D23203

BUSHING

- boom, lower

2шт.

9

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- boom, upper (See D20201)

2шт.

10

34714

BRAKE SHOE

ANCHOR - crowd, Serial Range: cylinder-boom

1шт.

11

36156

PIN - pivot, boom to tower (Use D23705)

1шт.

D23705

PIN - pivot, boom to tower (See D26500)

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (36156 pin only) Not shown

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (36156 pin only), Not shown Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (38156 pin only - if used) Not shown

1шт.

13

34948

WASHER - boom pivot pin (13/16" I.D. x 3" O.D.)

1шт.

14

14-1220

HHCS - 3/4 - 16 NF x 1-1/4

1шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

16

36070

TOY

CYLINDER - boom, hydraulic (3-1/2" dia.) (See figure 228 for breakdown) See D24418

1шт.

D24418

CYLINDER - boom, hydraulic (Optional 4" dia.) (See figure 230 for breakdown)

1шт.

17

34949

PIN - pivot, boom cylinder (Lower)

1шт.

18

39870

SEAL

PIN - lock, boom cylinder lower pivot pin

1шт.

19

34897

PIN - pivot, boom cylinder (Upper) Use D23714 and D21856

1шт.

D23714

PIN - pivot, boom cylinder (Upper)

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (34897 pin only) Not shown

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (34897 pin only), Not shown Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (34897 pin only - if used) Not shown

1шт.

20

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23714 pin only #X137, 1.268" Dia, E-Type

2шт.

21

34896

PIN - pivot, dipper arm to boom (Use D23710)

1шт.

D23710

PIN

- pivot, dipper arm to boom (See D26501)

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (34896 pin only) Not shown

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (34896 pin only), Not shown Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (34896 pin only - if used) Not shown

1шт.

22

38617

WASHER - boom to dipper arm pivot pin (1-17/32" I.D. x 2-1/2" O.D.)

1шт.

23

14-1220

HHCS - 3/4 - 16 NF x 1-1/4

1шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25

31109

PIN ASSY.

PIN - pivot, crowd cylinder to boom (Use D23715 and D21856)

1шт.

D23715

PIN - pivot, crowd, Serial Range: cylinder-boom

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (31109 pin only) Not shown

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (31109 pin only), Not shown Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (31109 pin only - if used) Not shown

1шт.

26

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23715 pin only #X137, 1.268" Dia, E-Type

2шт.

27

36030

ROLLER

ARM - dipper & bucket

1шт.

28

31148

BUSHING - dipper arm to boom pivot (Use D21903), bucket

2шт.

D21903

BUSHING

- dipper arm to boom pivot, bucket

2шт.

29

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dipper arm, lower, bucket

8шт.

30

34714

BRAKE SHOE

ANCHOR - crowd and bucket cylinders, dipper rm

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), dipper arm & bucket

1шт.

31

36770

CYLINDER - crowd, hydraulic (See figure 232 for breakdown), dipper arm & bucket

1шт.

32

31109

PIN ASSY.

PIN - pivot, crowd cylinder to dipper arm (Use D23715 and D21856), bucket

1шт.

D23715

PIN - pivot, crowd cylinder to dipper arm, bucket

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (31109 pin only) Not shown, dipper arm & bucket

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (31109 pin only), Not shown, Dipper arm & bucket Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (31109 pin only - if used) Not shown, dipper arm & bucket

1шт.

33

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23715 pin only, dipper arm & bucket #X137, 1.268" Dia, E-Type

2шт.

34

31109

PIN ASSY.

PIN - pivot, bucket cylinder to dipper arm (Use D23715 and D21856)

1шт.

D23715

PIN - pivot, bucket cylinder to dipper arm

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (31109 pin only) Not shown, dipper arm & bucket

1шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (31109 pin only), Not shown, Dipper arm & bucket Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (31109 pin only - if used) Not shown, dipper arm & bucket

1шт.

35

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23715 pin only, dipper arm & bucket #X137, 1.268" Dia, E-Type

1шт.

36

35288

PIN - pivot, bucket to dipper arm

1шт.

37

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm & bucket

1шт.

38

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Dipper arm & bucket Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown, dipper arm & bucket

1шт.

39

34973

LINK - bucket, dipper arm

2шт.

40

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket link, dipper arm

2шт.

41

34999

PIN - pivot, bucket link to dipper arm; also bucket, Serial Range: cylinder-link

2шт.

42

32625

WASHER - 34999 pin (1-9/32" I.D. x 2-1/2" O.D.), dipper arm & bucket

4шт.

43

132-152

PIN

- cotter, 1/4" x 1-3/4", dipper arm & bucket

4шт.

44

34974

LINK - bucket dump, dipper arm

1шт.

45

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket dump link, dipper arm

8шт.

46

35290

PIN

- pivot, bucket dump link to bucket, dipper arm

1шт.

47

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm & bucket

1шт.

48

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Dipper arm & bucket Int Tooth, 1/2"

1шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown, dipper arm & bucket

1шт.

49

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - bucket, hydraulic (See figure 234 for breakdown) Use D23774, dipper arm

1шт.

D23774

CYLINDER - bucket, hydraulic (See figure 234 for breakdown), dipper arm

1шт.

50

D23359M

BUCKET - backhoe, trenching (18") (Machinery item) See figure 206 for other buckets, dipper arm & bucket

1шт.

34948

WASHER - pivot pin (13/16" I.D. x 3" O.D.), parts from boom when equipped w/ D11011 reconditioning kit

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Parts from boom when equipped w/ D11011 reconditioning kit Hex, 3/4"-10 x 1 1/4", G5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Parts from boom when equipped w/ D11011 reconditioning kit 3/4"

1шт.

38617

WASHER - boom to dipper arm pivot pin (1-17/32" I.D. x 2-1/2" O.D.), parts from when equipped w/ D11011 reconditioning kit

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Parts from boom when equipped w/ D11011 reconditioning kit Hex, 3/4"-10 x 1 1/4", G5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Parts from boom when equipped w/ D11011 reconditioning kit 3/4"

1шт.

D23203

BUSHING

- boom, lower (Required in addition to D23203 bushings listed above), parts from when equipped w/ D11011 reconditioning kit

2шт.

D20201

BUSHING

- boom, upper (Required in addition to 30613 listed above - if 30613 is used), parts from boom when equipped w/ D11011 reconditioning kit

2шт.

D26500

PIN - pivot, boom to tower (See D23705), parts from boom when equipped w/ D11011 reconditioning kit

1шт.

D26501

PIN - pivot, dipper arm to boom (See D23710), parts from when equipped w/ D11011 reconditioning kit

1шт.
