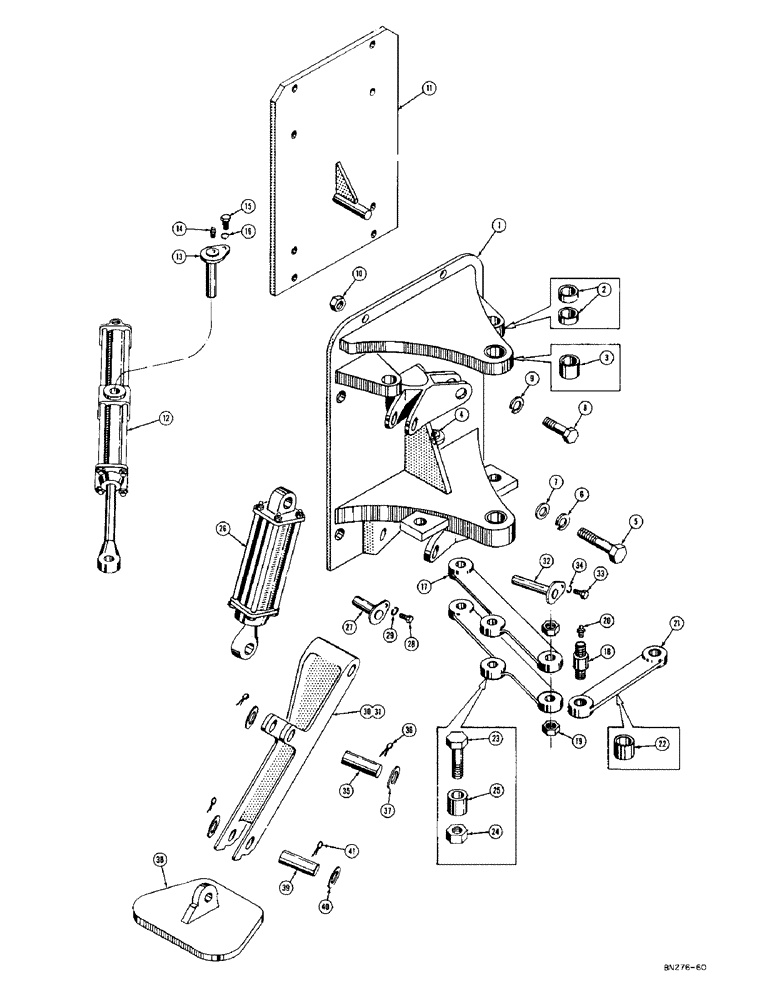

Запчасти Case 420 (198) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS, MOUNTING PARTS (09) - BOOMS

1

34719

BRACKET - mounting, backhoe

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- mounting bracket, for swing links

4шт.

3

D23203

BUSHING

- mounting bracket, tower pivot

4шт.

4

35395

PIN - retaining, transport (Includes chain)

1шт.

5

14-1648

BOLT (MACHINE),Hex, 1" - 14 x 3", Gr 5

HHCS - 1 - 14 NF x 3

4шт.

6

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

7

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D. x 5/32" thick)

4шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

11

34788

HOUSING

PLATE - mounting, control valve

1шт.

12

38871

CYLINDER - swing, hydraulic (See figure 224 for breakdown) Has 3" O.D. cylinder tube - use D23257, link

2шт.

D23257

CYLINDER - swing, hydraulic (See figure 224 for breakdown) Has 2-7/8" O.D. cylinder tube - see 38871, link

2шт.

13

35031

PIN

- pivot, swing cylinder & links

4шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT), swing cylinder & links

4шт.

15

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4, swing cylinder & links

4шт.

16

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Swing cylinder & links Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown, swing cylinder & links

4шт.

17

D20158

LINK - swing, front, cylinder

4шт.

18

D21332

BOLT - mounting bracket to link; front links to rear link, swing cylinder

4шт.

19

131-370

LOCK NUT

NUT - lock (1" - 14 NF), swing cylinder & links

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), swing cylinder & links

4шт.

21

35030

LINK - swing, rear, cylinder

2шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rear swing link, cylinder

4шт.

23

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1 - 14 NF x 5 (Piston rod yoke; also link to tower), swing cylinder & links

4шт.

24

131-370

LOCK NUT

NUT - lock (1" - 14 NF), swing cylinder & links

4шт.

25

30959

SPACER - 14-1680 cap screw, swing cylinder & links

4шт.

26

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (See figure 226 for breakdown)

2шт.

27

34961

PIN - pivot, stabilizer cylinder (Upper)

2шт.

28

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4, stabilizers

2шт.

29

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Stabilizers Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown, stabilizers

2шт.

30

34709

ARM - stabilizer, R.H.

1шт.

31

34710

ARM - stabilizer, L.H.

1шт.

32

34629

PIN - pivot, stabilizer arm mounting

2шт.

33

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4, stabilizers

2шт.

34

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Stabilizers Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin bolt (If used) Not shown, stabilizers

2шт.

35

35037

PIN - pivot, stabilizer cylinder (Lower)

2шт.

36

132-152

PIN

- cotter, 1/4" x 1-3/4", stabilizers

4шт.

37

32625

WASHER - stabilizer cylinder pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)

4шт.

38

35731

BUSHING

FOOT - stabilizer

2шт.

39

35037

PIN - pivot, stabilizer, Serial Range: arm-foot

2шт.

40

32625

WASHER - foot pivot pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick), stabilizers

4шт.

41

132-152

PIN

- cotter, 1/4" x 1-3/4", stabilizers

4шт.
