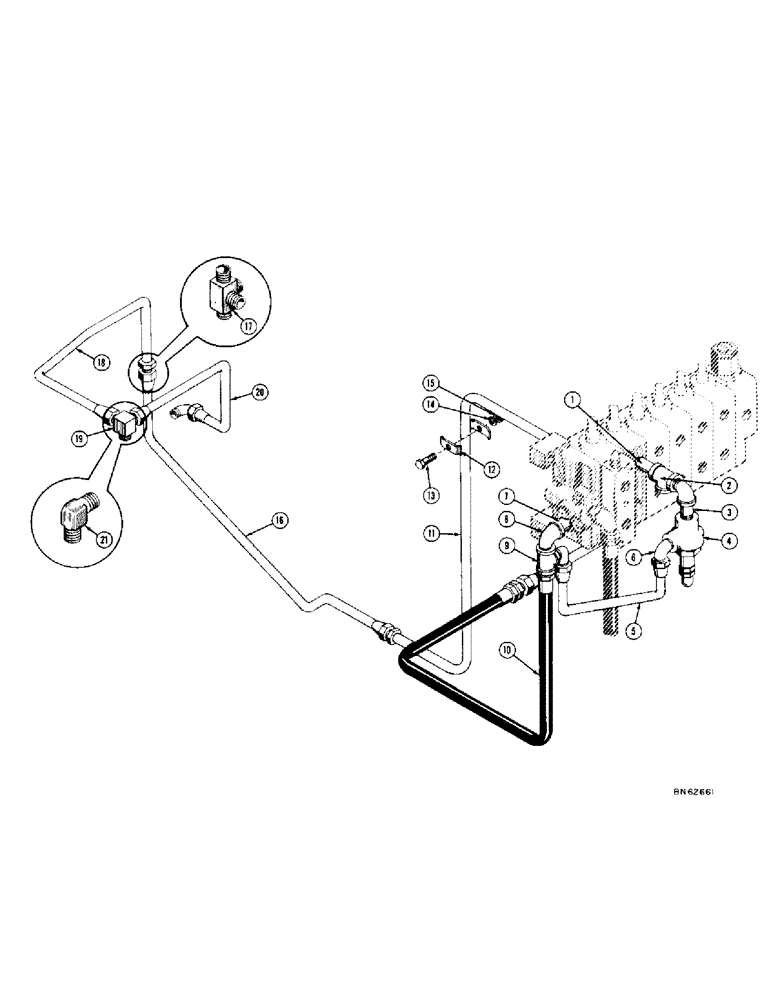

Запчасти Case 420 (236) - HIGH PRESSURE CARRY-OVER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D21315

NIPPLE - pipe, 1/2" NPT x 3-1/2"

2шт.

2

D23911

FITTING

TEE - pipe, 1/2" NPT

1шт.

3

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees (1/2" NPT)

1шт.

4

D24452

VALVE

- relief, boom down pressure (See figure 100 for breakdown)

1шт.

5

D25134

TUBE - relief valve to high pressure carry over line

1шт.

6

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

2шт.

7

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-1/8"

1шт.

8

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

9

221-447

TEE - pipe, 3/4" NPT x 1/2" NPT

1шт.

10

D21790

HOSE

- high pressure carry-over line, backhoe control valve to reservoir (Rear section) (3/4" I.D. x 1-5/32" O.D. x 31")

1шт.

11

D25145

TUBE - high pressure carry-over line, backhoe control valve to reservoir (Rear center section)

1шт.

12

31665

COLLAR CLAMP

PLATE - clamp, D25145 tube

2шт.

13

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

25-104

NUT,1/4"-20, G5

1шт.

16

D25147

TUBE - high pressure carry-over line, backhoe control valve to reservoir (Front center section)

1шт.

17

D25173

TEE - side outlet, loader models only

1шт.

18

D25513

TUBE - high pressure carry-over line, backhoe control valve to reservoir (Front section)

1шт.

19

D24971

TEE - lateral, filter inlet (Dozer models only)

1шт.

20

D20333

TUBE - front mounted control valve outlet to reservoir (Dozer models only)

1шт.

21

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

2шт.
