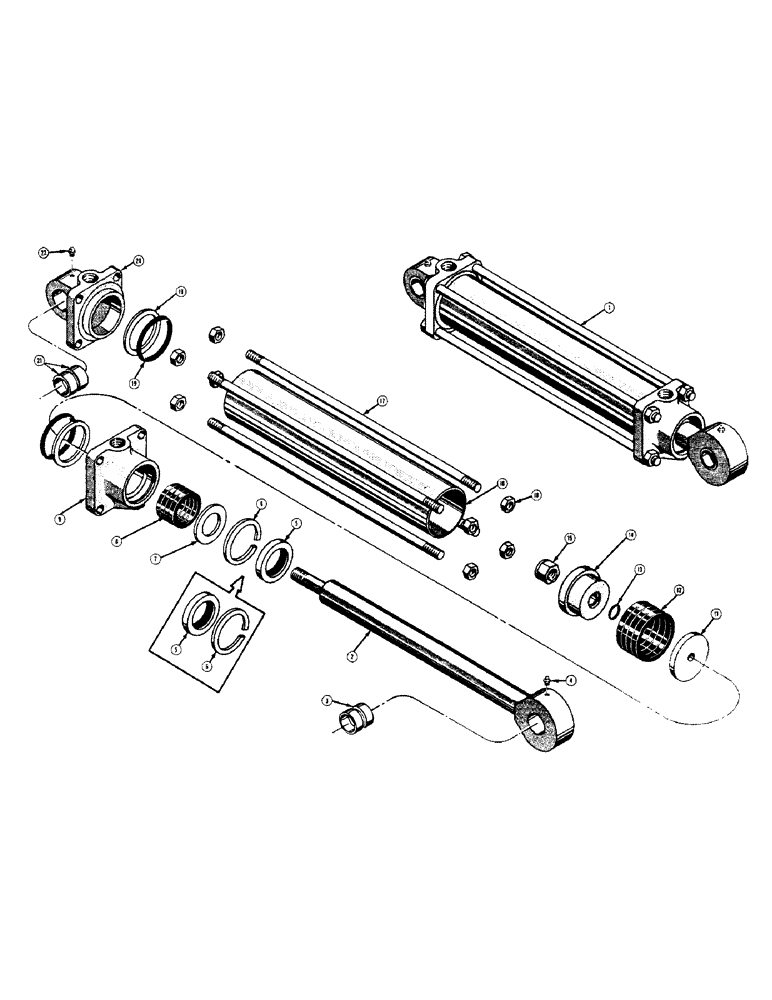

Запчасти Case 420 (232) - 36770 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

1

36770

CYLINDER - crowd, hydraulic

1шт.

2

D20042

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

31525

WIPER SEAL

- wiper, piston rod

1шт.

6

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

7

31539

WASHER

- piston rod packing (1/8" thick)

1шт.

D25044

WASHER

- piston rod packing (1/4" thick)

1шт.

8

17598

PACKING

- piston rod

1шт.

9

73348

CAP - end, cylinder (When replacing cap with 1/8" thick washer (31539) also order 1 - D24044 washer (1/4" thick) Use R17510

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

R17510

CAP - end, cylinder (See 73348)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

12

31526

PACKING

- piston

1шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston rod (Used with D23737 piston only)

1шт.

14

31520

PISTON - cylinder (No "O" ring) Use D23737, D23688, and A7623

1шт.

D23737

PISTON - cylinder (With "O" ring) When replacing 31520 piston without "O" ring, also order 1 - A7623 "O" ring and 1 - D23688 locknut

1шт.

15

131-19

LOCK NUT,1"-14, GB

NUT - lock (31520 piston only) (1" - 14 NF)

1шт.

D23688

X

NUT - lock (D23737 piston only) (1" - 14 NF)

1шт.

16

36771

TUBE - cylinder

1шт.

17

36778

FORK

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

8шт.

19

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder ends to tube

2шт.

20

D20037

END - cylinder

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
