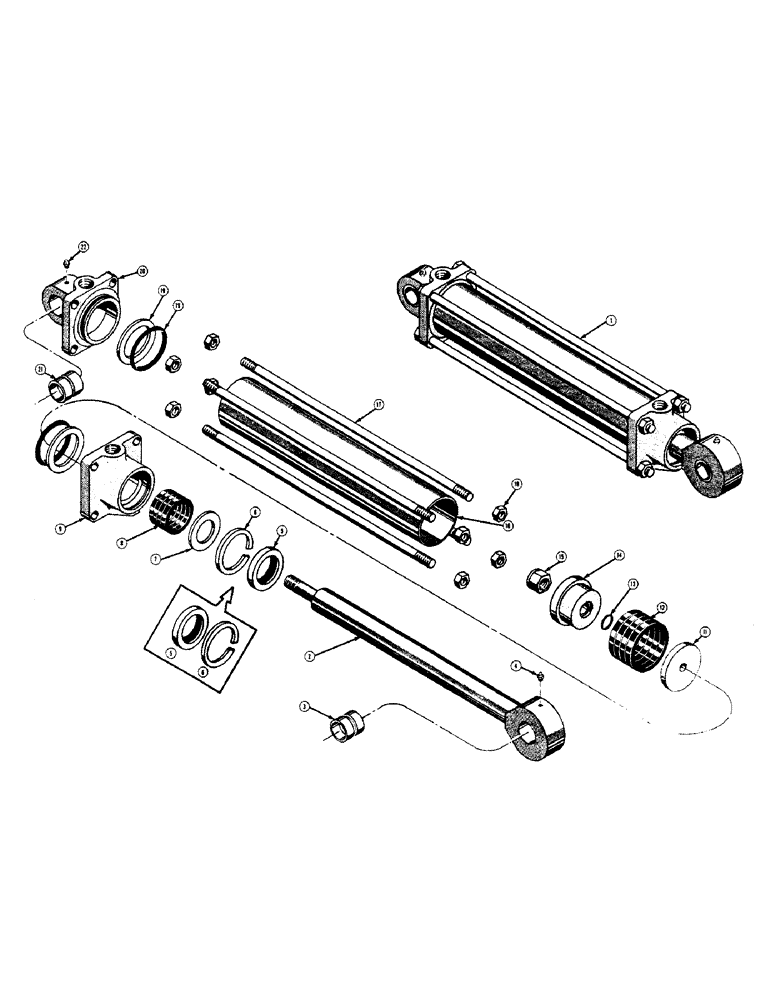

Запчасти Case 420 (230) - D24418 HYDRAULIC BOOM CYLINDER (OPTIONAL - 4" DIA.) (07) - HYDRAULIC SYSTEM

1

D24418

CYLINDER - boom, hydraulic (See 36070 - figure 228)

1шт.

2

D20039

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70741

X

WASHER - packing, piston rod (1/8" thick) See D25043

1шт.

D25043

WASHER

- packing, piston rod (1/4" thick) See 70741

1шт.

8

30568

PACKING

- piston rod

1шт.

9

D24391

CAP - cylinder end (When replacing cap with 1/8" thick washer (70741) also order 1 - D25043 washer (1/4" thick)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

12

31526

PACKING

- piston

1шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

14

D23737

PISTON - cylinder

1шт.

15

D23688

X

NUT - lock, piston (1" - 14 NF)

1шт.

16

34884

CABLE PULLING GRIP,3.995" ID, 4.387" OD, 38.447" Length

TUBE - cylinder (4" dia.)

1шт.

17

34885

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

8шт.

19

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder ends to tube

2шт.

20

D24557

END - cylinder

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
