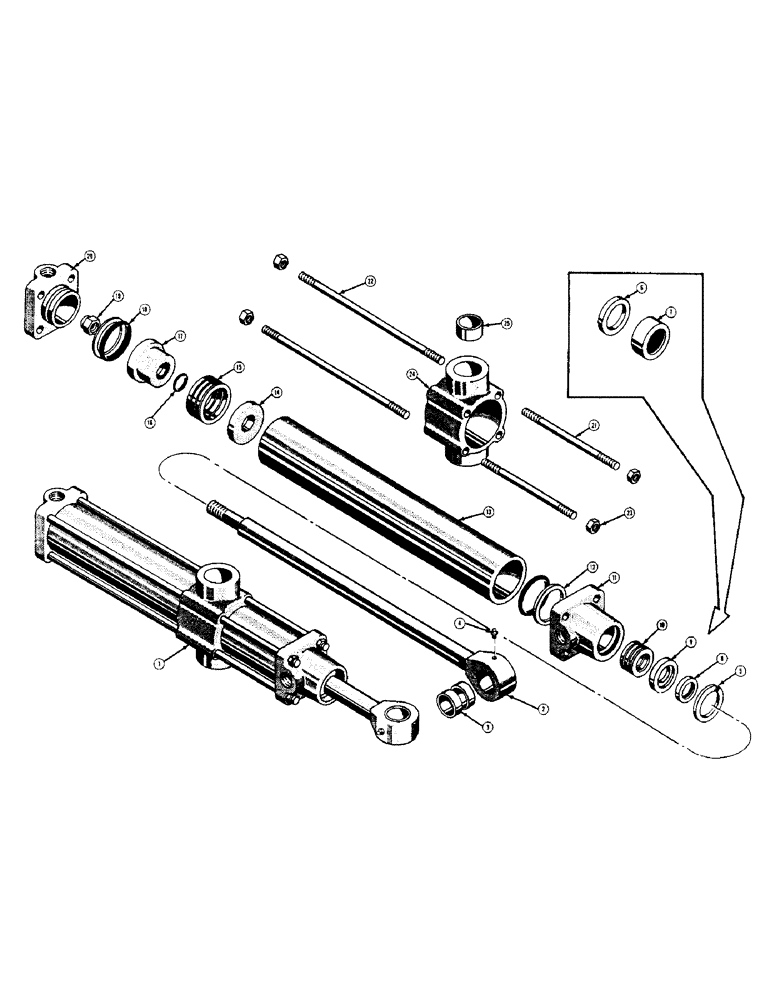

Запчасти Case 420 (224) - HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

1

38871

CYLINDER - swing, hydraulic (Original equipment only - use D23257)

2шт.

D23257

CYLINDER - swing, hydraulic (Replacement only)

2шт.

2

D20027

ROD - piston

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

6

36259

WASHER

- packing, piston rod (Use D23962 and D23933)

1шт.

7

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933)

1шт.

8

D23962

SEAL

- wiper, piston rod (Also order 1 - D23933 gland when replacing 17603 seal)

1шт.

9

D23933

GLAND

- seal, wiper (Also order 1 - D23962 seal when replacing 36259 washer)

1шт.

10

17597

PACKING

- piston rod

1шт.

11

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

12

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

13

38372

TUBE - cylinder (3" O.D. - 38871 cylinder only)

1шт.

Original equipment cylinders have 3" O.D. tube - replacement cylinders have 2-7/8" O.D. tube.

1шт.

D23250

TUBE - cylinder (2-7/8" O.D. - D23257 cylinder only)

1шт.

Original equipment cylinders have 3" O.D. tube - replacement cylinders have 2-7/8" O.D. tube.

1шт.

14

30630

CARTRIDGE

WASHER - packing, piston

1шт.

15

17598

PACKING

- piston

1шт.

16

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston only)

1шт.

17

30631

X

PISTON - cylinder (No "O" ring) Use D23738, D23739, and O3522CK

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 lock nut

1шт.

18

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

19

131-152

HARDWARE

NUT - lock (30631 piston only) (3/4" - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23738 piston only) (3/4" - 16 NF)

1шт.

20

34888

END

- cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

38369

ROD - tie, short

4шт.

22

38370

ROD - tie, long

4шт.

23

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

8шт.

24

D20528

TRUNNION - hydraulic cylinder (3" O.D. cylinder tube only) Includes ref. no. 25

1шт.

D21905

TRUNNION - hydraulic cylinder (2-7/8" O.D. cylinder tube only)

1шт.

25

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder trunnion

2шт.
