Запчасти Case 420 (220) - * D23812 AND D24433 HYDRAULIC CONTROL VALVES (07) - HYDRAULIC SYSTEM

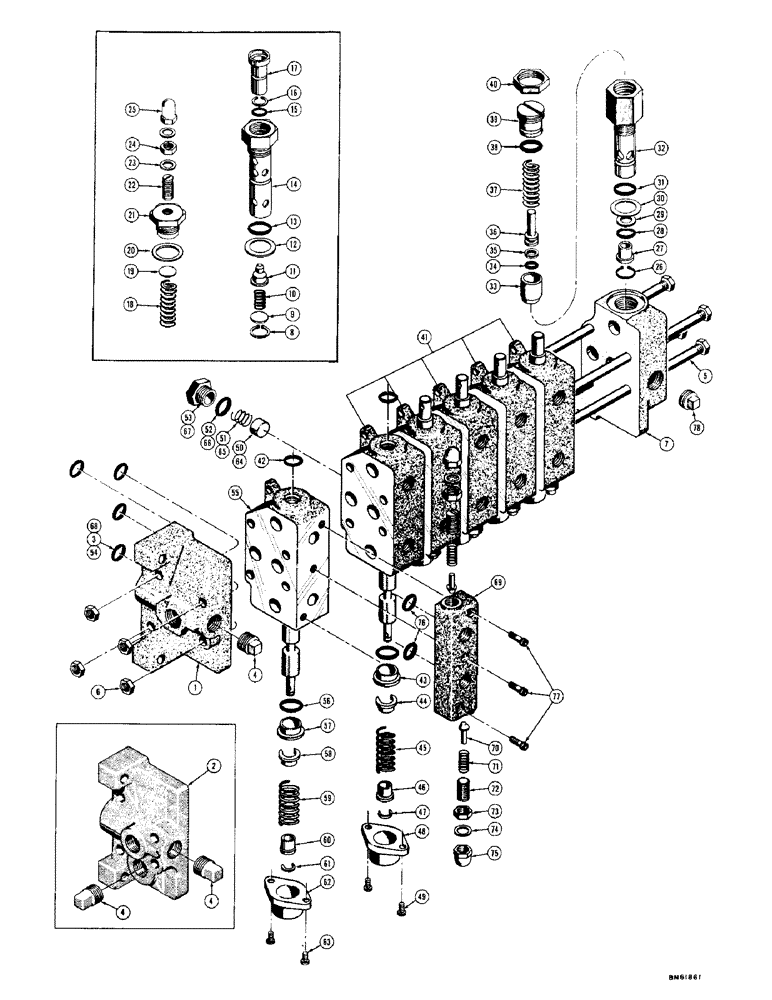

Схема запчастей Case 420 - (220) - * D23812 AND D24433 HYDRAULIC CONTROL VALVES (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

D23812

VALVE

- backhoe control, hydraulic (Used on models without high pressure carry-over line) See D24433

1шт.

D24433

VALVE

- backhoe control, hydraulic (Used on models with high pressure carry-over line) See D23812

1шт.

1

D23823

SECTION - outlet, D23812 valve only (See D24943)

1шт.

2

D24943

SECTION - outlet, D24433 valve only (See D23823)

1шт.

3

D21922

O-RING

SEAL - "O" ring, valve body

4шт.

4

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4" NPT (1 used with D23823; 2 used with D24943)

1-2шт.

5

38578

SOCKET WRENCH

STUD - valve tie (1/2" - 20 NF x 16-3/4")

4шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock (1/2" - 20 NF)

4шт.

7

D23813

SECTION - inlet, control valve

1шт.

23130

CARTRIDGE - main relief valve (Early production - D23812 valve only) Use R14175

1шт.

8

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining

1шт.

9

23144

THREADED TIE-ROD

WASHER - poppet spring

1шт.

10

23137

VALVE SPRING

SPRING - poppet

1шт.

11

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

12

23146

WASHER

- fibre, relief valve shell

1шт.

13

O8377AB

X

SEAL - "O" ring, relief valve cartridge

1шт.

14

23133

HYDRAULIC HOSE

SHELL - cartridge, relief valve

1шт.

15

VT2983

X

SEAL - "O" ring, valve seat

1шт.

16

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup

1шт.

17

23135

HYDRAULIC HOSE

SEAT - floating valve

1шт.

18

23136

SPRING

- seat

1шт.

19

23143

WASHER

- relief valve spring

1шт.

20

23148

SEAL

WASHER - fibre, relief valve cap

1шт.

21

23139

GASKET

CAP - valve

1шт.

22

23140

STUD

SCREW - adjusting, relief valve spring

1шт.

23

23150

WASHER

- adjusting screw nuts (Copper)

2шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24 NF)

1шт.

25

NLS

NO LONGER SERVICED

NUT - acorn, adjusting screw cap

1шт.

R14175

CARTRIDGE - main relief valve (Late production - See R14175)

1шт.

26

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining

1шт.

27

R12511

POPPET

- relief valve

1шт.

28

O9787AB

X

SEAL - "O" ring, poppet

1шт.

29

R12512

OIL SEAL

RING - backup, poppet seal

1шт.

30

23146

WASHER

- fibre, relief valve shell

1шт.

31

O8377AB

X

SEAL - "O" ring, relief valve shell

1шт.

32

R12505

SHELL - cartridge, relief valve

1шт.

33

R12510

SEAT

- floating valve

1шт.

34

A11027

GASKET

SEAL - "O" ring, floating seat

1шт.

35

R12509

RING

- backup, displacement plunger seal

1шт.

36

R12508

PLUNGER - displacement, floating seat

1шт.

37

23136

SPRING

- compression, plunger

1шт.

38

O8377AB

X

SEAL - "O" ring, adjusting screw

1шт.

39

R12506

SCREW - adjusting, relief valve spring

1шт.

40

R12507

LOCK NUT

- lock, adjusting screw

1шт.

41

D23826

SECTION - valve; stabilizer, boom, crowd, and bucket cylinder control

5шт.

42

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool

2шт.

43

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool

1шт.

44

16205

RETAINER - spring, spool centering

1шт.

45

23127

SPRING

- spool centering

1шт.

46

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

47

NLS

NO LONGER SERVICED

- spring guide, spool centering

1шт.

48

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

49

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16" - 18 NC x 3/4"

2шт.

50

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

51

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

52

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve cap

1шт.

53

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

54

D21922

O-RING

SEAL - "O" ring, valve body

4шт.

D23825

SECTION - valve, swing cylinder control (Complete)

1шт.

55

D23829

SECTION - valve, swing cylinder control

1шт.

56

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool

2шт.

57

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool

1шт.

58

16205

RETAINER - spring, spool centering

1шт.

59

23127

SPRING

- spool centering

1шт.

60

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering

1шт.

61

16413

HOSE

- spring guide, spool centering

1шт.

62

23115

HYDRAULIC HOSE

CAP - valve spool

1шт.

63

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16" - 18 NC x 3/4"

2шт.

64

23116

HYDRAULIC HOSE

POPPET - check valve, valve section

1шт.

65

23118

HYDRAULIC HOSE

SPRING - poppet, check valve

1шт.

66

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve cap

1шт.

67

23117

HYDRAULIC HOSE

CAP - check valve, valve section

1шт.

68

D21922

O-RING

SEAL - "O" ring, valve body

4шт.

69

D23827

SECTION - relief valve, swing cylinder

1шт.

70

16227

HOSE

POPPET - relief valve

2шт.

71

NLS

NO LONGER SERVICED

SPRING - poppet, relief valve

2шт.

72

NLS

NO LONGER SERVICED

SCREW - adjusting, swing cylinder relief valve

2шт.

73

25-119

NUT,9/16"-18, G5

- hex. (9/16 - 18 NF)

2шт.

74

16219

GASKET

- jam nut and cap nut (Copper and lead)

4шт.

75

48355

NUT - cap, hex. (9/16" - 18 NF)

2шт.

76

D21922

O-RING

SEAL - "O" ring, relief valve to valve section

2шт.

77

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

SHCS - 3/8" - 16 NC x 1-1/2"

3шт.

78

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4" NPT square head

1шт.
