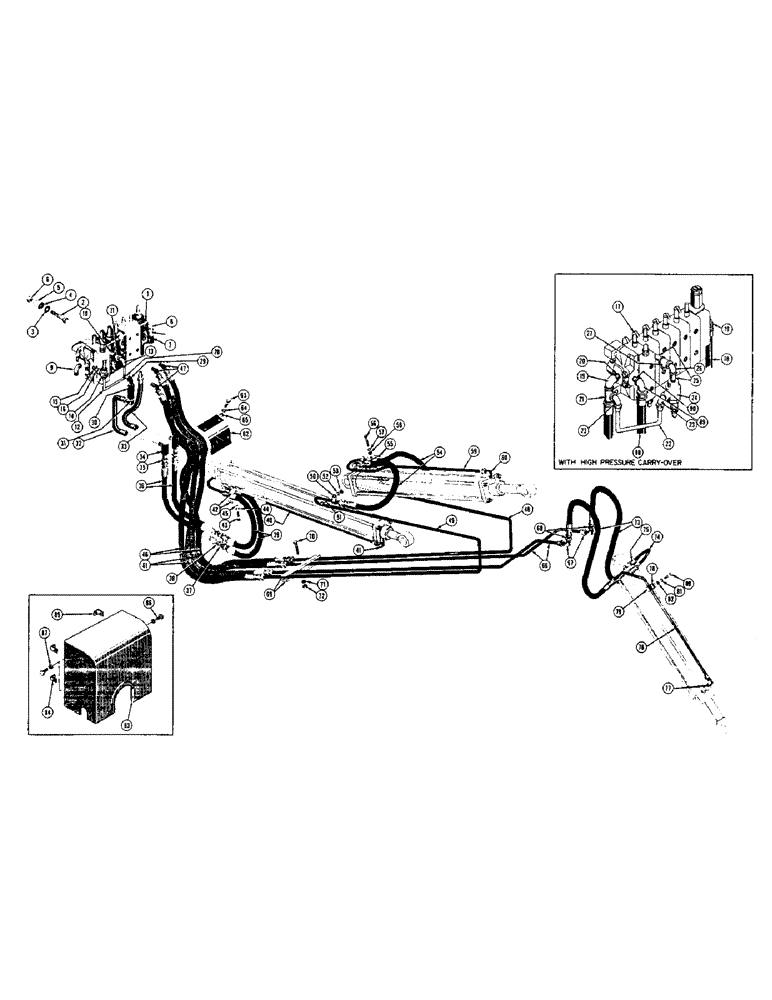

Запчасти Case 420 (214) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, VALVE (UP TO S/N 4024993) (07) - HYDRAULIC SYSTEM

1

34642

X

VALVE - hydraulic control, backhoe (Use D23812) See D24433

1шт.

D23812

VALVE

- hydraulic control, backhoe (Note: 34642 and D23812 valves are identical insofar as field service is concerned) See figure 220 for breakdown (See D24433)

1шт.

2

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2

3шт.

3

NLS

NO LONGER SERVICED

SHIM - valve mounting

1шт.

4

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

3шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

3шт.

7

D21790

HOSE

- R.H. side of backhoe valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 31")

1шт.

8

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

9

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

1шт.

10

D21315

NIPPLE - pipe, backhoe control valve to pipe tee (1/2" NPT x 3-1/2")

1шт.

11

D23911

FITTING

TEE - pipe, 1/2" NPT

1шт.

12

D20251

TUBE - pipe tee to special relief valve

1шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

2шт.

14

33959

PIPE FITTING

VALVE - relief, boom down pressure (Has no. "985" on casting) See figure 100 for breakdown (Use D24452)

1шт.

D24452

VALVE

- relief, boom down pressure (Has no. "2716" on casting) See figure 100 for breakdown (See 33959)

1шт.

15

221-60

TUBE

BUSHING - hex. pipe (3/4" NPT x 1/2" NPT)

1шт.

16

D21315

NIPPLE - pipe, relief valve to backhoe control valve; also pipe tee to relief valve (1/2" NPT x 3-1/2" extra heavy pipe)

2шт.

17

D24433

VALVE

- hydraulic control, backhoe (See figure 220 for breakdown), valve serial no. 4024993 & after

1шт.

18

D21790

HOSE

- R.H. side of backhoe valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 31"), serial no. 4024993 & after

1шт.

19

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, valve S/N 4024993 & after 90º, 3/4"-14, NPT

2шт.

20

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/8" NPT x 1-1/8", valve serial no. 4024993 & after

1шт.

21

221-447

TEE - pipe, 3/4" NPT x 1/2" NPT, valve serial no. 4024993 & after

1шт.

22

D25134

TUBE - special relief valve to high pressure carry-over line, serial no. 4024993 & after

2шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), valve serial no. 4024993 & after

2шт.

24

D24452

VALVE

- relief, boom down pressure (See figure 100 for breakdown), serial no. 4024993 & after

1шт.

25

D21315

NIPPLE - pipe, relief valve to street elbow; also pipe tee to backhoe control valve (1/2" NPT x 3-1/2" extra heavy pipe), serial no. 4024993 & after

2шт.

26

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees (1/2" NPT), valve serial no. 4024993 & after

1шт.

27

D23911

FITTING

TEE - pipe, 1/2" NPT, valve serial no. 4024993 & after

1шт.

28

D21316

NIPPLE - pipe, backhoe valve to flow control valve (1/2" NPT x 2" extra heavy pipe), boom cylinder hydraulic system

1шт.

29

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees (1/2" NPT), boom cylinder hydraulic system

1шт.

30

60374

VALVE

- flow control (See figure 194 for breakdown), boom cylinder hydraulic system

1шт.

31

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), boom cylinder hydraulic system

1шт.

32

D20335

HOSE - flow control valve to L.H. special elbow (1/2" I.D. x 7/8" O.D. x 18-1/2"), boom cylinder hydraulic system

1шт.

33

36254

LEVER

HOSE - pipe tee to R.H. special elbow (1/2" I.D. x 7/8" O.D. x 26"), boom cylinder hydraulic system

1шт.

34

50880

ELBOW - 90 degree male, special, boom cylinder hydraulic system 1.312, Int, #131

2шт.

35

D25828

NUT - hex. jam, special (7/8" - 14 NF), boom cylinder hydraulic system

1шт.

36

35543

HOSE

- special elbow in mounting bracket to bulkhead union in tower (1/2" I.D. x 7/8" O.D. x 26"), boom cylinder hydraulic system

2шт.

37

D21698

UNION

- bulkhead, tower (Boom cylinder hoses), boom cylinder hydraulic system

2шт.

38

D25828

NUT - hex. jam, special (7/8" - 14 NF), boom cylinder hydraulic system

1шт.

39

35209

HOSE ASSY.

HOSE - bulkhead union to boom cylinder (1/2" I.D. x 7/8" O.D. x 32"), hydraulic system

2шт.

40

35206

TUBE - hose to rear boom cylinder port, hydraulic system

1шт.

41

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), boom cylinder hydraulic system

2шт.

42

31665

COLLAR CLAMP

PLATE - clamp, 35209 hoses, boom cylinder hydraulic system

2шт.

43

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Boom cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

44

92-5

LOCK WASHER,5/16"

boom cylinder hydraulic system 5/16"

1шт.

45

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), boom cylinder hydraulic system

1шт.

46

35194

OLIVE

HOSE - valve to crowd cylinder, front section (Has 2 female fittings) (1/2" I.D. x 7/8" O.D. x 69-5/8") Up to backhoe serial no. 4022974 (See D21700), hydraulic system

2шт.

D21700

HOSE

- valve to crowd cylinder, front section (Has 1 male and 1 female fitting) (1/2" I.D. x 7/8" O.D. x 65") Backhoe serial no. 4022974 and after (See 35194), hydraulic system

2шт.

47

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (1/2" NPT x 5/8" JIC), crowd cylinder hydraulic system

4шт.

48

35283

TUBE - R.H., valve to crowd cylinder (Center section) Has 2 male fittings (Up to backhoe serial no. 4022974) See D21712, hydraulic system

1шт.

D21712

TUBE - R.H., valve to crowd cylinder (Center section) Has 2 female fittings (Backhoe serial no. 4022974 and after) See 35283, r hydraulic system

1шт.

49

35284

TUBE - L.H., valve to crowd cylinder (Center section) Has 2 male fittings (Up to backhoe serial no. 4022974) See D21713, hydraulic system

1шт.

D21713

TUBE - L.H., valve to crowd cylinder (Center section) Has 2 female fittings (Backhoe serial no. 4022974 and after) See 35284, hydraulic system

1шт.

50

D20043

CLAMP - tube, crowd cylinder hydraulic system

2шт.

51

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Crowd cylinder hydraulic system Hex, 1/4"-28 x 1 1/4", G5

2шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crowd cylinder hydraulic system 1/4"

2шт.

53

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF), crowd cylinder hydraulic system

2шт.

54

D27478

HOSE ASSY.

HOSE - valve to crowd cylinder, rear section (Has 2 female fittings) Up to backhoe serial no. 4022974 (1/2" I.D. x 7/8" O.D. x 22") See 38410, hydraulic system

2шт.

38410

HOSE

- valve to crowd cylinder, rear section (Has 1 male and 1 female fitting) Backhoe serial no. 4022974 and after (1/2" I.D. x 7/8" O.D. x 22-1/2") See 35197, hydraulic system

2шт.

55

31665

COLLAR CLAMP

PLATE - clamp, crowd cylinder hydraulic system

2шт.

56

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

57

92-5

LOCK WASHER,5/16"

crowd cylinder hydraulic system 5/16"

1шт.

58

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), crowd cylinder hydraulic system

1шт.

59

35206

TUBE - crowd cylinder, rear port, hydraulic system

1шт.

60

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), crowd cylinder hydraulic system

2шт.

61

35194

OLIVE

HOSE - valve to bucket cylinder, front section (Has 2 female fittings) (1/2" I.D. x 7/8" O.D. x 69-5/8") Up to backhoe serial no. 4022974 (See D21700), hydraulic system

2шт.

D21700

HOSE

- valve to bucket cylinder, front section (Has 1 male and 1 female fitting) (1/2" I.D. x 7/8" O.D. x 65") Backhoe serial no. 4022974 and after (See 35194),hydraulic system

2шт.

62

35192

BRACKET - hose mounting, bucket cylinder hydraulic system

1шт.

63

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4, bucket cylinder hydraulic system

4шт.

64

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulic system 3/8"

4шт.

65

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF), bucket cylinder hydraulic system

4шт.

66

35195

TUBE - valve to bucket cylinder, front center section (Has 1 male and 1 female fitting) Up to backhoe serial no. 4022974 (See D21715), hydraulic system

2шт.

D21715

TUBE - valve to bucket cylinder, front center section (Has 2 female fittings) Backhoe serial no. 4022974 and after (See 35195), hydraulic system

2шт.

67

D21699

ELBOW - bulkhead, 90 degrees (5/8" JIC), bucket cylinder hydraulic system

2шт.

68

D25828

NUT - hex. jam, special (7/8" - 14 NF), bucket cylinder hydraulic system

1шт.

69

35217

CLAMP - tubes at bottom of boom, bucket cylinder hydraulic system

2шт.

70

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8 - 24 NF x 2-1/4, bucket cylinder hydraulic system

1шт.

71

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulic system 3/8"

1шт.

72

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF), bucket cylinder hydraulic system

1шт.

73

19178

HOSE

- valve to bucket cylinder, rear center section (1/2" I.D. x 7/8" O.D. x 33-1/2"), hydraulic system

2шт.

74

D20255

TUBE - valve to front bucket cylinder port, rear section, hydraulic system

1шт.

75

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), bucket cylinder hydraulic system

1шт.

76

35027

HYD TUBE

TUBE - valve to rear bucket cylinder port, rear section, hydraulic system

1шт.

77

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC), bucket cylinder hydraulic system

1шт.

78

17179

CLAMP - base, 35027 tube, bucket cylinder hydraulic system

1шт.

79

31665

COLLAR CLAMP

PLATE - clamp, upper (35027 tube), bucket cylinder hydraulic system

1шт.

80

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Bucket cylinder hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

81

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulic system 5/16"

1шт.

82

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), bucket cylinder hydraulic system

1шт.

83

D10222

SHIELD - control valve, backhoe, if used

1шт.

84

D20644

BRACKET - mounting, L.H., valve shield (if used)

2шт.

85

D20645

BRACKET - mounting, R.H., valve shield ( if used)

1шт.

86

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

HHCS - 3/8 - 24 NF x 5/8, valve shield (if used)

3шт.

87

92-6

LOCK WASHER,3/8"

valve shield (if used) 3/8"

3шт.

88

D21788

HOSE

- backhoe control valve (3/4" I.D. x 1-5/32" O.D. x 31"), valve shield (if used)

1шт.

89

218-516

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

- female, 90 degrees (3/4" JIC male x 3/4" NPT female), valve shield (if used)

1шт.

90

221-702

NIPPLE - pipe, 3/4" NPT x 2-3/4", valve shield (if used)

1шт.
