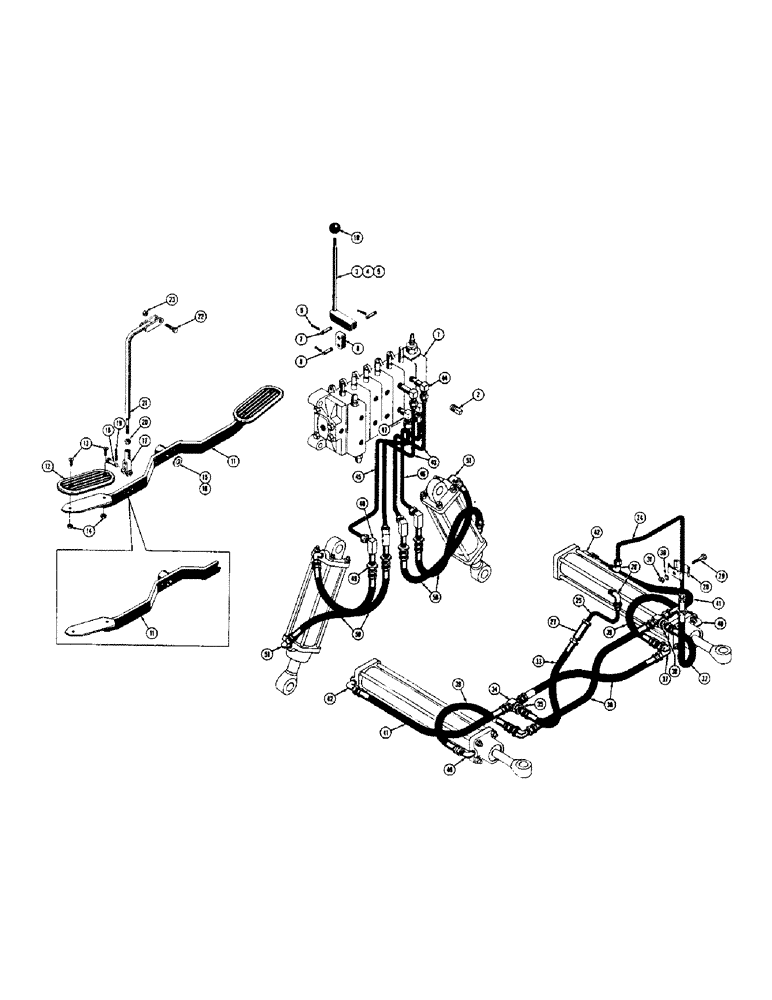

Запчасти Case 420 (210) - SWING AND STABILIZER CYLINDER HYDRAULICS, VALVE (07) - HYDRAULIC SYSTEM

1

34642

X

VALVE - hydraulic control, backhoe (Use D23812) See D24433

1шт.

D23812

VALVE

- hydraulic control, backhoe (Used on models not equipped with high pressure carry-over tube) (Note: 34642 and D23812 valves are identical insofar as field service is concerned) See figure 220 for breakdown (See D24433)

1шт.

D24433

VALVE

- hydraulic control, backhoe (Used on models equipped with high pressure carry-over tube) See figure 220 for breakdown (See D23812)

1шт.

2

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" NPT square head

1шт.

3

35382

LEVER - valve, boom control (11-1/4")

1шт.

4

35159

LEVER - valve, dipper arm and bucket control (9-3/4")

2шт.

5

35160

WASHER

LEVER - valve, stabilizer control (8-1/2")

2шт.

6

35161

LINK - valve lever

5шт.

7

35173

PIN

- valve, Serial Range: lever-link

10шт.

8

35172

PIN - valve to lever link

5шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

30шт.

10

70213

KNOB

- control lever

5шт.

11

35266

BAR - control, swing cylinders

1шт.

12

35253

NUT

PEDAL - rubber, swing control bar

2шт.

13

74-412

SCREW - machine, flat head (1/4" - 28 NF x 3/4")

4шт.

14

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

4шт.

15

195-45

WASHER,3/4"

1шт.

16

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod, swing control

1шт.

18

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

21

34932

ROD - control, swing cylinder

1шт.

22

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4

1шт.

23

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

1шт.

24

D20263

TUBE - upper control valve port to R.H. bulkhead tee, upper section, swing cylinder hydraulics

1шт.

25

35051

SPRING CUP

TUBE - lower control valve port to L.H. bulkhead tee, upper section, swing cylinder hydraulics

1шт.

26

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 1/2" JIC), swing cylinder hydraulics

2шт.

27

221-328

X

COUPLING - pipe, 3/8" NPT, swing cylinder hydraulics

2шт.

28

32978

PLATE ASSY.

PLATE - clamp, D20263 tube, swing cylinder hydraulics

2шт.

29

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2, swing cylinder hydraulics

1шт.

30

92-5

LOCK WASHER,5/16"

swing cylinder hydraulics 5/16"

1шт.

31

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), swing cylinder hydraulics

1шт.

32

36250

SPRING

HOSE - upper control valve port to R.H. bulkhead tee, lower section (1/2" I.D. x 7/8" O.D. x 21"), swing cylinder hydraulics

1шт.

33

35214

BELT, TRANSMISSION

HOSE - lower control valve port to L.H. bulkhead tee, lower section (1/2" I.D. x 7/8" O.D. x 18"), swing cylinder hydraulics

1шт.

34

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, 1/2" JIC, swing cylinder hydraulics

2шт.

35

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4" - 16 NF), swing cylinder hydraulics

2шт.

36

35221

SPINDLE

HOSE - bulkhead tee to 90 degree bulkhead fitting (1/2" I.D. x 7/8" O.D. x 26"), swing cylinder hydraulics

2шт.

37

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2" JIC, Swing cylinder hydraulics 90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

38

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4" - 16 NF), swing cylinder hydraulics

2шт.

39

35223

PLATE

HOSE - 90 degree bulkhead fitting to rear swing cylinder port (1/2" I.D. x 7/8" O.D. x 16-1/2"), hydraulics

2шт.

40

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 1/2" JIC), swing cylinder hydraulics

2шт.

41

36445

HOSE - bulkhead tee to front swing cylinder port (1/2" I.D. x 7/8" O.D. x 27"), hydraulics

2шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 1/2" JIC), stabilizer cylinder hydraulics

2шт.

43

35166

KEY

TUBE - backhoe control valve to upper cylinder port, top section, stabilizer hydraulics

2шт.

44

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (Extra long) (1/2" NPT x 1/2" JIC), stabilizer cylinder hydraulics

2шт.

45

35180

PIPE FITTING

TUBE - backhoe control valve to L.H. cylinder lower port, upper section, stabilizer hydraulics

1шт.

46

35182

TUBE - backhoe control valve to R.H. cylinder lower port, upper section, stabilizer hydraulics

1шт.

47

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 1/2" JIC), stabilizer cylinder hydraulics

2шт.

48

50881

ELBOW - bulkhead, special (90 degrees), stabilizer cylinder hydraulics

4шт.

49

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF), stabilizer cylinder hydraulics

4шт.

50

36210

HOSE

- backhoe valve to stabilizer cylinder, lower section (1/2" I.D. x 7/8" O.D. x 21"), hydraulics

4шт.

51

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 1/2" JIC), stabilizer cylinder hydraulics

4шт.
