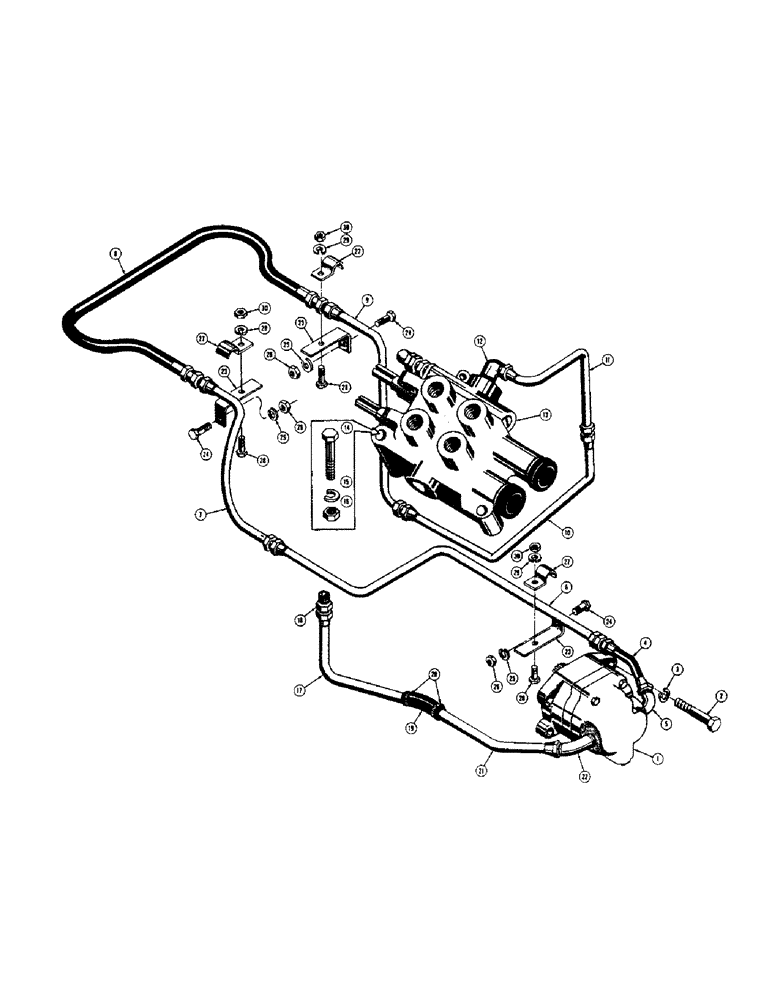

Запчасти Case 420 (208) - BASIC BACKHOE HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D21319

PUMP - hydraulic, 19 G.P.M. (See figure 90 for breakdown) Original equipment (See D26066)

1шт.

D26066

PUMP - hydraulic, 19 G.P.M. (Heavy duty) See figure 92 for breakdown (Replacement only) See D21319

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

35189

HOSE - pump to backhoe control valve, front section (3/4" I.D. x 1-1/4" x 14-1/2") Use D23636

1шт.

D23636

HOSE - pump to backhoe control valve, front section (3/4" I.D. x 1-5/32" O.D. x 12")

1шт.

5

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees (3/4" NPT)

1шт.

6

36308

BOLT

TUBE - pump to backhoe control valve, center section

1шт.

7

35942

TUBE - pump to backhoe control valve, rear section

1шт.

8

D21788

HOSE

- backhoe control valve (3/4" I.D. x 1-5/32" O.D. x 31")

2шт.

9

35943

TUBE - backhoe control valve to loader control valve, rear section

1шт.

10

39157

TUBE - backhoe control valve to loader control valve, center section

1шт.

11

D20297

TUBE - backhoe control valve to loader control valve, front section

1шт.

12

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

1шт.

13

38256

PIN

VALVE - control, hydraulic (Loader, dozer, etc.) See figure 84 for breakdown (When stock is exhausted, order D24387)

1шт.

D24387

SPOOL

VALVE - control, hydraulic (Loader, dozer, etc.) See figure 86 for breakdown

1шт.

14

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8 - 24 NF x 2-1/4

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

3шт.

17

36312

NEEDLE BEARING

TUBE - reservoir to pump, rear section

1шт.

18

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (3/4" NPT x 1" JIC)

1шт.

19

32798

HOSE

- reservoir to pump, center section (1" I.D. x 1-1/2" O.D. x 6")

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 32798 hose

2шт.

21

36310

SEAL

TUBE - reservoir to pump, front section

1шт.

22

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- male, 45 degrees (1" NPT x 1" JIC)

1шт.

23

33422

BRACKET - mounting, tube clamp

3шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

25

92-8

LOCK WASHER,1/2"

3шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

3шт.

27

49789

CLAMP

- 36308, 35942, and 35943 tubes

3шт.

28

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

30

25-104

NUT,1/4"-20, G5

3шт.
