Запчасти Case 420 (148) - 30624 SCARIFIER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

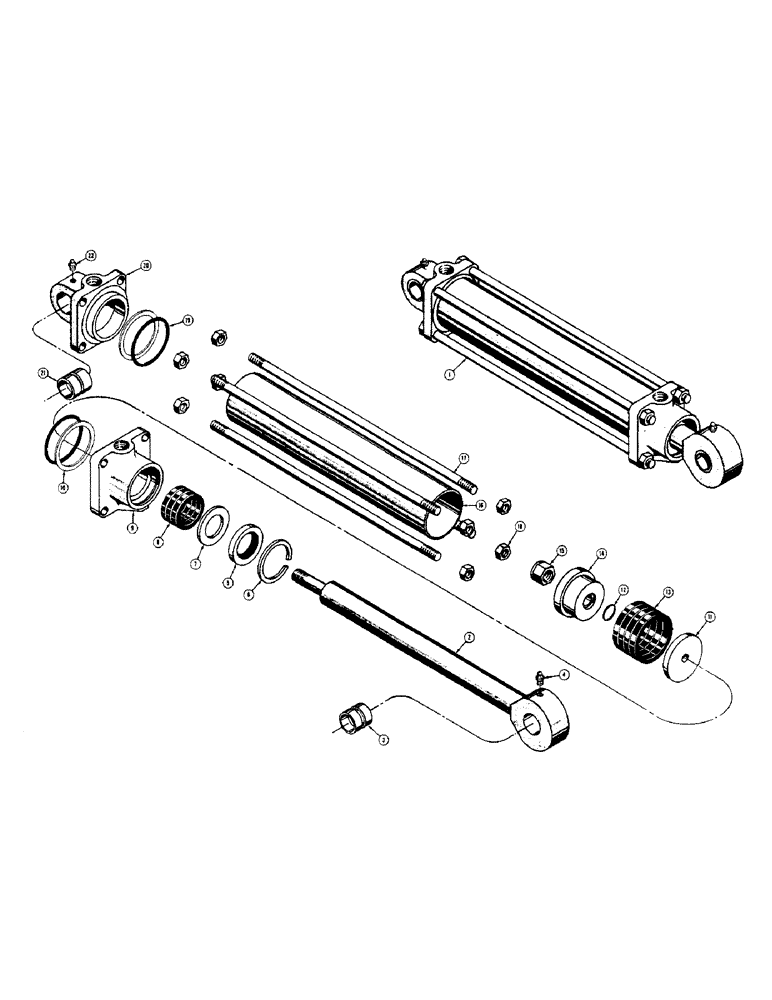

Схема запчастей Case 420 - (148) - 30624 SCARIFIER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

30624

RING

CYLINDER - scarifier, hydraulic

1шт.

2

D20033

ROD - piston

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

17603

WIPER SEAL

- wiper, piston rod

1шт.

6

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

7

36259

WASHER

- packing, piston rod

1шт.

8

17597

PACKING

- piston rod

1шт.

9

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

30630

CARTRIDGE

WASHER - packing, piston

1шт.

12

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston only)

1шт.

13

17598

PACKING

- piston

1шт.

14

30631

X

PISTON - cylinder (No "O" ring) Use D23738, D23739, and O3522CK

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 locknut

1шт.

15

131-152

HARDWARE

NUT - lock (30631 piston only) (3/4" - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23738 piston only) (3/4" - 16 NF)

1шт.

16

30629

TUBE - cylinder

1шт.

17

30633

NUT

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

8шт.

19

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

20

D20038

END - cylinder

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

Выбрано товаров: 26
