Запчасти Case 420 (132) - 17751 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

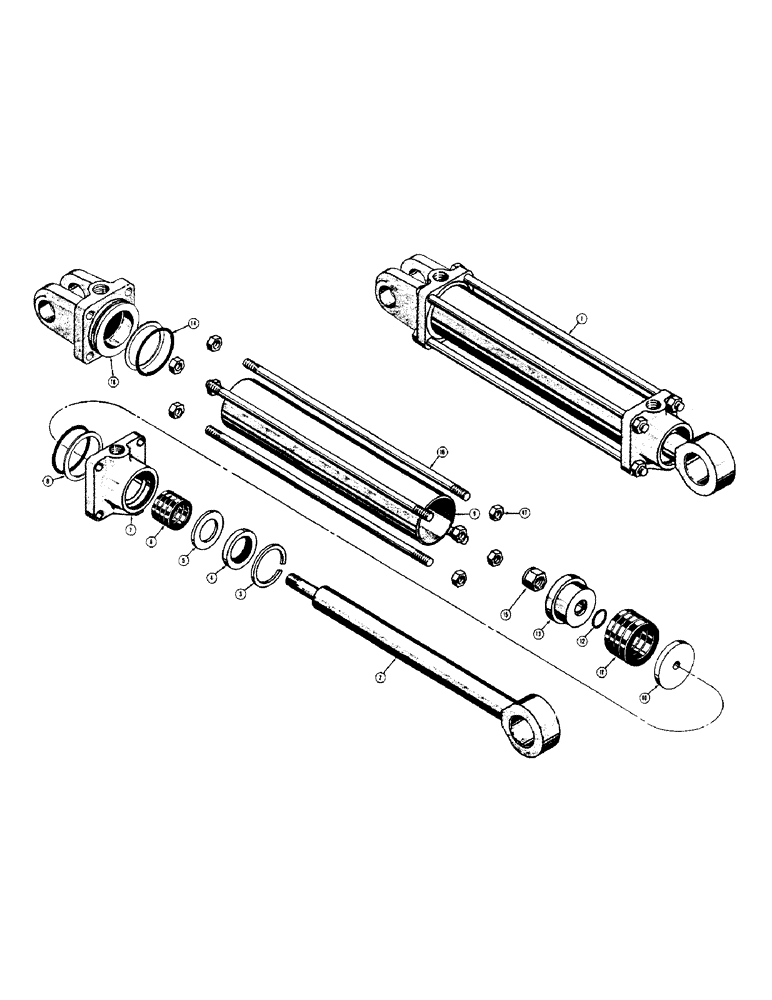

Схема запчастей Case 420 - (132) - 17751 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

17751

CYLINDER - dozer lift, hydraulic

2шт.

2

17628

ROD - piston

1шт.

3

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

4

17603

WIPER SEAL

- wiper, piston rod

1шт.

5

36259

WASHER

- packing, piston rod

1шт.

6

17597

PACKING

- piston rod

1шт.

7

17592

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

8

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

9

16046

TUBE - cylinder

1шт.

10

30630

CARTRIDGE

WASHER - packing, piston

1шт.

11

17598

PACKING

- piston

1шт.

12

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston)

1шт.

13

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1 - 03522CK "O" ring and 1 - D23739 locknut

1шт.

14

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

15

131-152

HARDWARE

NUT - lock (30631 piston only) (3/4" - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23738 piston only) (3/4" - 16 NF)

1шт.

16

16043

ANCHOR

ROD - tie

4шт.

17

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

8шт.

18

17591

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.
