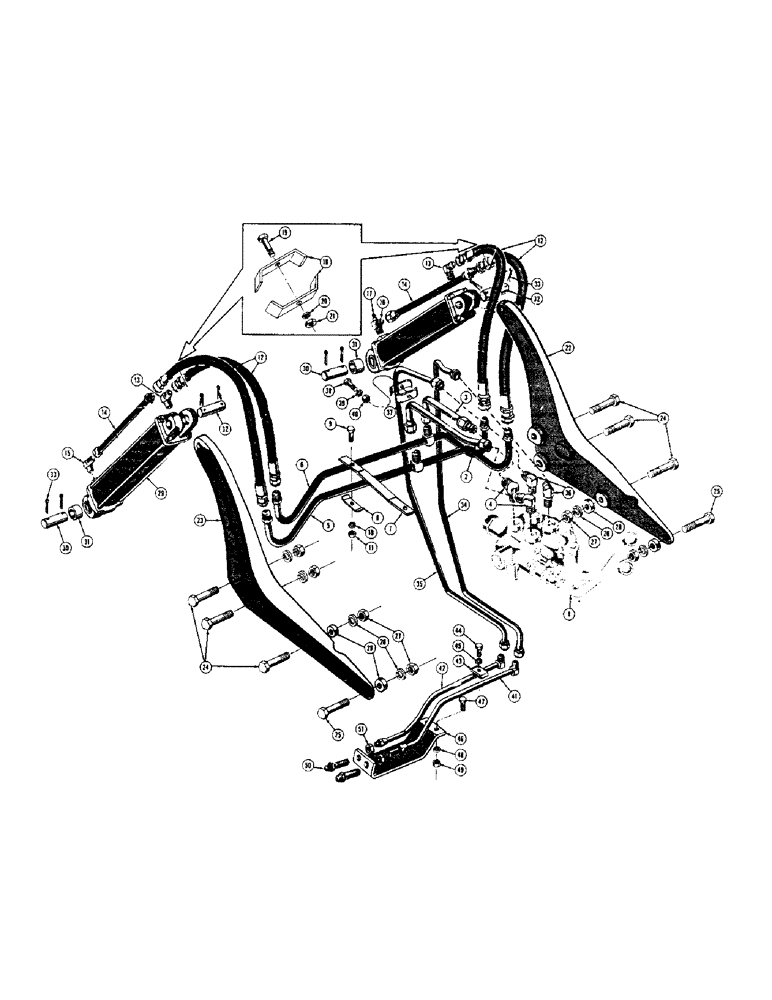

Запчасти Case 420 (130) - HYDRAULIC DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - control (See figure 84 for breakdown) When stock is exhausted, order D24387

1шт.

D24387

SPOOL

VALVE - control (See figure 86 for breakdown) See 38256

1шт.

2

38242

TUBE

- L.H. rear valve port to rear lift cylinder manifold tube

1шт.

3

D20096

TUBE - L.H. front valve port to front lift cylinder manifold tube

1шт.

4

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

5

38241

SCREW

TUBE - manifold, lift cylinder (Rear)

1шт.

6

38240

NUT

TUBE - manifold, lift cylinder (Front)

1шт.

7

D20324

STRAP - support, clamp plate

1шт.

8

32978

PLATE ASSY.

PLATE - clamp

1шт.

9

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

12

35543

HOSE

- manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 28")

4шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

14

38849

BOLT,Hex, M6 x 80mm, Cl 8.8

TUBE - hose to front cylinder port

2шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

16

33888

ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT)

1шт.

17

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

18

31665

COLLAR CLAMP

PLATE - clamp

4шт.

19

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

22

16692

BRACKET - cylinder, R.H.

1шт.

23

16693

CLAMP

BRACKET - cylinder, L.H.

1шт.

24

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

6шт.

25

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18 NF x 2-1/2

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

27

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

8шт.

28

32799

SPACER - cylinder bracket

4шт.

29

17751

CYLINDER - dozer lift, hydraulic (See figure 132 for breakdown)

2шт.

30

16726

PIN - mounting, cylinder to "C" frame

2шт.

31

17631

BUSHING - cylinder

2шт.

32

18743

PIN - mounting, cylinder to cylinder bracket

2шт.

33

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

34

D20253

TUBE - R.H. rear valve port to rear bulkhead union, upper section

1шт.

35

D20248

TUBE - R.H. front valve port to front bulkhead union, upper section

1шт.

36

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" JIC x 1/2" NPT)

2шт.

37

32978

PLATE ASSY.

PLATE - clamp

2шт.

38

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

1шт.

39

92-5

LOCK WASHER,5/16"

1шт.

40

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

41

38310

TUBE - R.H. rear valve port to rear bulkhead union, lower section

1шт.

42

38312

PUMP, FUEL INJECTION

TUBE - R.H. front valve port to front bulkhead union, lower section

1шт.

43

32978

PLATE ASSY.

PLATE - clamp

1шт.

44

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

39046

GUARD - tubing

1шт.

47

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

HHCS - 1/2 - 24 NC x 1-1/4

1шт.

48

92-8

LOCK WASHER,1/2"

1шт.

49

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

1шт.

50

50883

FITTING - bulkhead union

2шт.

51

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

2шт.
