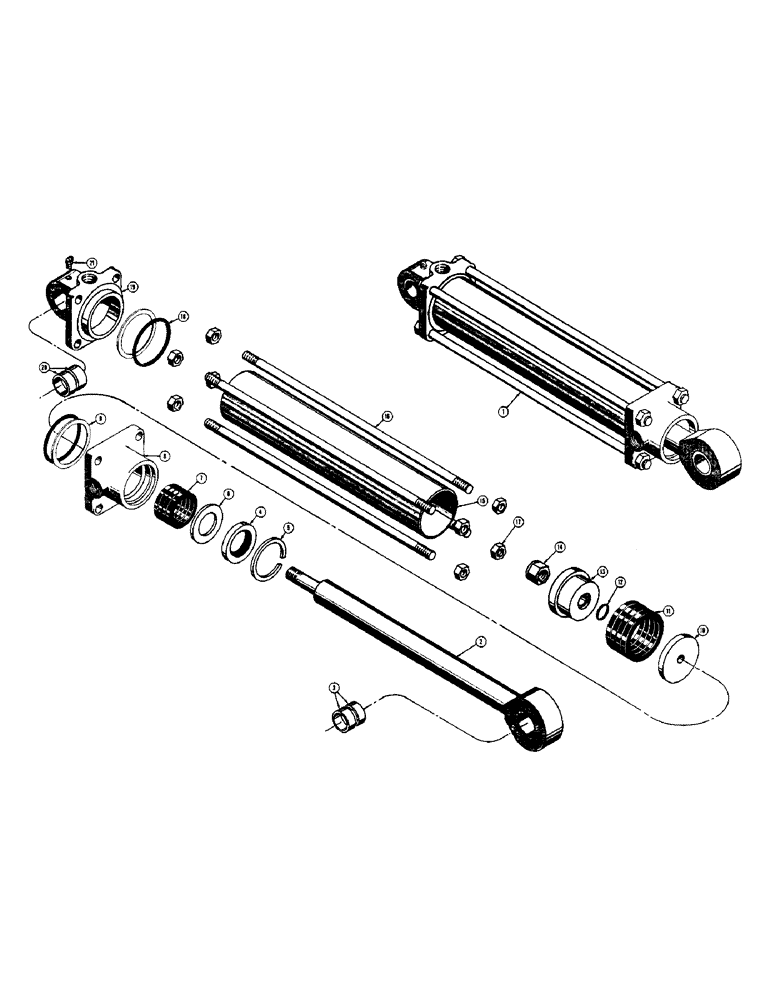

Запчасти Case 420 (102) - 31608 AND 31609 LOADER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

31608

CYLINDER - loader lift, hydraulic (R.H.)

1шт.

31609

CYLINDER - loader lift, hydraulic (L.H.)

1шт.

2

D20031

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Not shown

1шт.

4

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

5

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

6

70741

X

WASHER - packing, piston rod (Used with 30567 cylinder end cap only)

1шт.

D25043

WASHER

- packing, piston rod (Used with D25596 cylinder end cap only)

1шт.

7

30568

PACKING

- piston rod

1шт.

8

30567

FLANGE

CAP - cylinder end (Has no. 30567 on casting) (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D25596

CAP - cylinder end (Has no. D25596 on casting) (When replacing 30567 end cap, also order 1 - D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

9

D24987

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

10

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

11

17578

PACKING

- piston

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring (Used with D23736 piston only)

1шт.

13

30571

PISTON - cylinder (No "O" ring) (Use D23736, D23688, and A7623)

1шт.

D23736

PISTON - cylinder (With "O" ring) (When replacing 30571 piston without "O" ring, also order 1 - A7623 "O" ring and 1 - D23688 locknut)

1шт.

14

131-19

LOCK NUT,1"-14, GB

NUT - lock (30571 piston only) (1" - 14 NF)

1шт.

D23688

X

NUT - lock (D23736 piston only) (1" - 14 NF)

1шт.

15

30570

DRAWBAR

TUBE - cylinder

1шт.

16

30569

ROD

- tie

4шт.

17

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

8шт.

18

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

19

D20054

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

20

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
