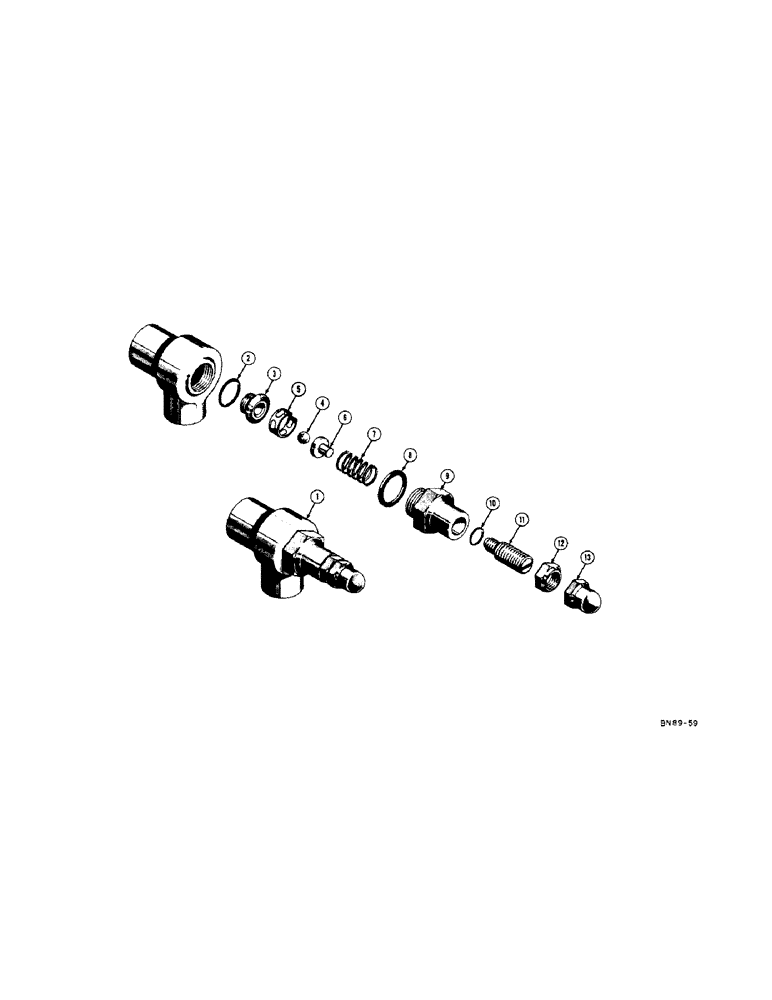

Запчасти Case 420 (100) - 33959 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - special relief (Has no. 985 on housing) Use D24452

1шт.

The above valve is identified by the number "985" on the housing. If the housing has the number "2716" on it, refer to the section above on 33959 relief valve.

1шт.

2

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve (Use D24406)

1шт.

D24406

SEAT

- valve

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.
