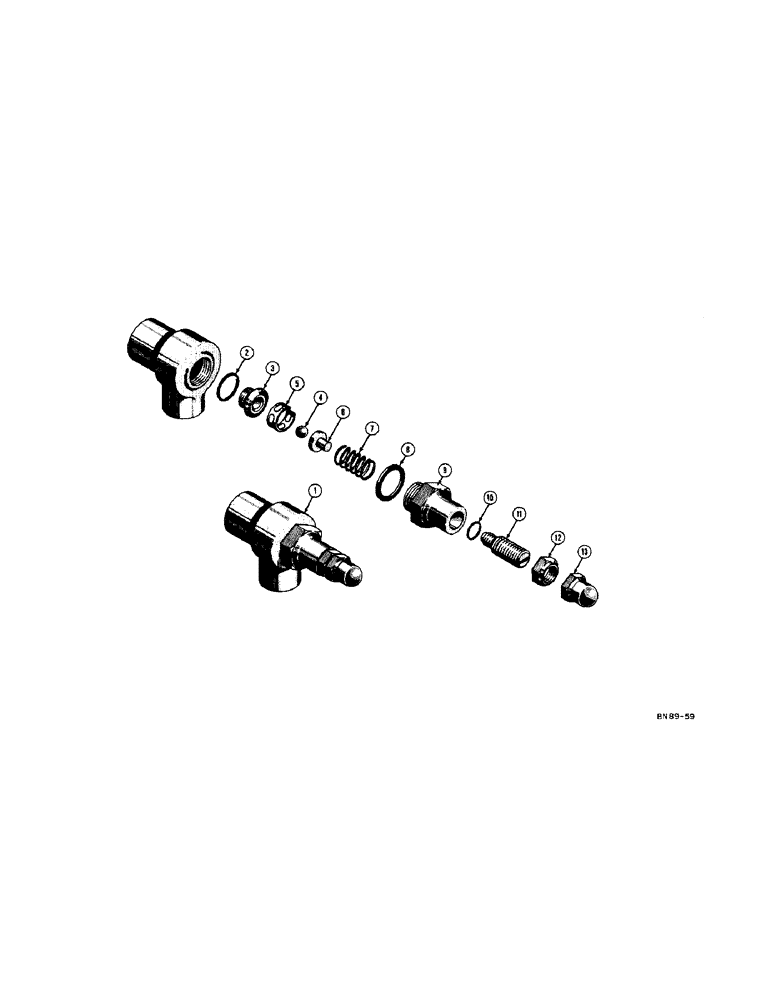

Запчасти Case 420 (100[1]) - D24452 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

D24452

VALVE

- special relief, has no. 2716 on housing

1шт.

If the housing has the number "985" on it, refer to the section above on 33959 relief valve.

1шт.

2

D23928

O-RING

SEAL - "O" ring, valve seat

1шт.

3

D24406

SEAT

- valve

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.
