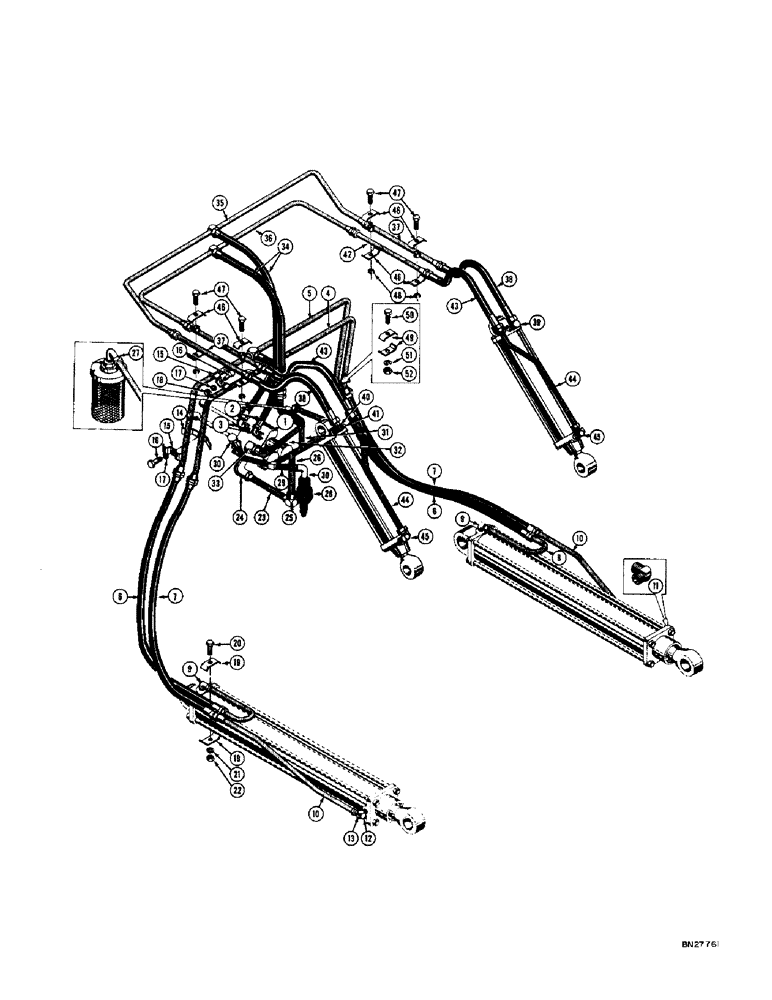

Запчасти Case 420 (098) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - control (See figure 84 for breakdown) When stock is exhausted, order D24387

1шт.

D24387

SPOOL

VALVE - control (See figure 86 for breakdown) See 38256

1шт.

2

D20335

HOSE - L.H. control valve ports to lift cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 18-1/2")

2шт.

3

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (5/8" JIC x 1/2" NPT)

2шт.

4

D20339

TUBE - lift cylinder manifold, front

1шт.

5

D20338

TUBE - lift cylinder manifold, rear

1шт.

6

36695

HOSE - rear manifold tube to rear lift cylinder port (1/2" I.D. x 7/8" O.D. x 23-1/2")

2шт.

7

36574

HOSE

- front manifold tube to front lift cylinder port (1/2" I.D. x 7/8" O.D. x 23-1/2")

2шт.

8

36578

TUBE - hose to rear lift cylinder port

2шт.

9

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

10

36588

TUBE - hose to front lift cylinder port

2шт.

11

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

12

33888

ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT)

1шт.

13

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

14

33747

SPACER - tube clamp

2шт.

15

17179

CLAMP - tube

4шт.

16

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

19

31665

COLLAR CLAMP

PLATE - clamp

4шт.

20

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

23

D20107

TUBE - control valve outlet to lateral elbow, bucket cylinder hydraulics

1шт.

24

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT), bucket cylinder hydraulics

1шт.

25

D20105

ELBOW - lateral, bucket cylinder hydraulics

1шт.

26

D20328

TUBE - lateral elbow to reservoir, bucket cylinder hydraulics

1шт.

27

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT), bucket cylinder hydraulics

1шт.

28

33959

PIPE FITTING

VALVE - relief (See figure 100 for breakdown) When stock is exhausted, order D24452, bucket cylinder hydraulics

1шт.

D24452

VALVE

- relief (See figure 100 for breakdown) See 33959, bucket cylinder hydraulics

1шт.

29

D20347

TUBE - R.H. rear control valve port to relief valve, bucket cylinder hydraulics

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), bucket cylinder hydraulics

2шт.

31

D21951

TUBE - R.H. rear control valve port to rear manifold tube, center section, bucket cylinder hydraulics

1шт.

32

D21953

TUBE - R.H. front control valve port to front manifold tube, lower section, bucket cylinder hydraulics

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), bucket cylinder hydraulics

1шт.

34

D21955

HOSE - valve tube to manifold tube (1/2" I.D. x 7/8" O.D. x 28"), bucket cylinder hydraulics

2шт.

35

19269

TUBE - bucket cylinder manifold, rear, hydraulics

1шт.

36

19267

TUBE - bucket cylinder manifold, front, hydraulics

1шт.

37

36592

TUBE - rear manifold tube to hose, bucket cylinder hydraulics

2шт.

38

36523

HOSE ASSY.

HOSE - tube to rear bucket cylinder port (1/2" I.D. x 7/8" O.D. x 18-3/4"), hydraulics

2шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), bucket cylinder hydraulics

1шт.

40

33888

ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT), bucket cylinder hydraulics

1шт.

41

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head, bucket cylinder hydraulics

1шт.

42

36582

TUBE - front manifold tube to front bucket cylinder port, rear section, hydraulics

2шт.

43

36547

HOSE

- front manifold tube to front bucket cylinder port, center section (1/2" I.D. x 7/8" O.D. x 19"), hydraulics

2шт.

44

36594

FIXING PLATE

TUBE - front manifold tube to front bucket cylinder port, front section, hydraulics

2шт.

45

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), bucket cylinder hydraulics

2шт.

46

32978

PLATE ASSY.

PLATE - clamp, bucket cylinder hydraulics

8шт.

47

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Bucket cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

4шт.

48

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulics 5/16"

4шт.

49

31665

COLLAR CLAMP

PLATE - clamp, bucket cylinder hydraulics

4шт.

50

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Bucket cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

51

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulics 5/16"

2шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), bucket cylinder hydraulics

2шт.
