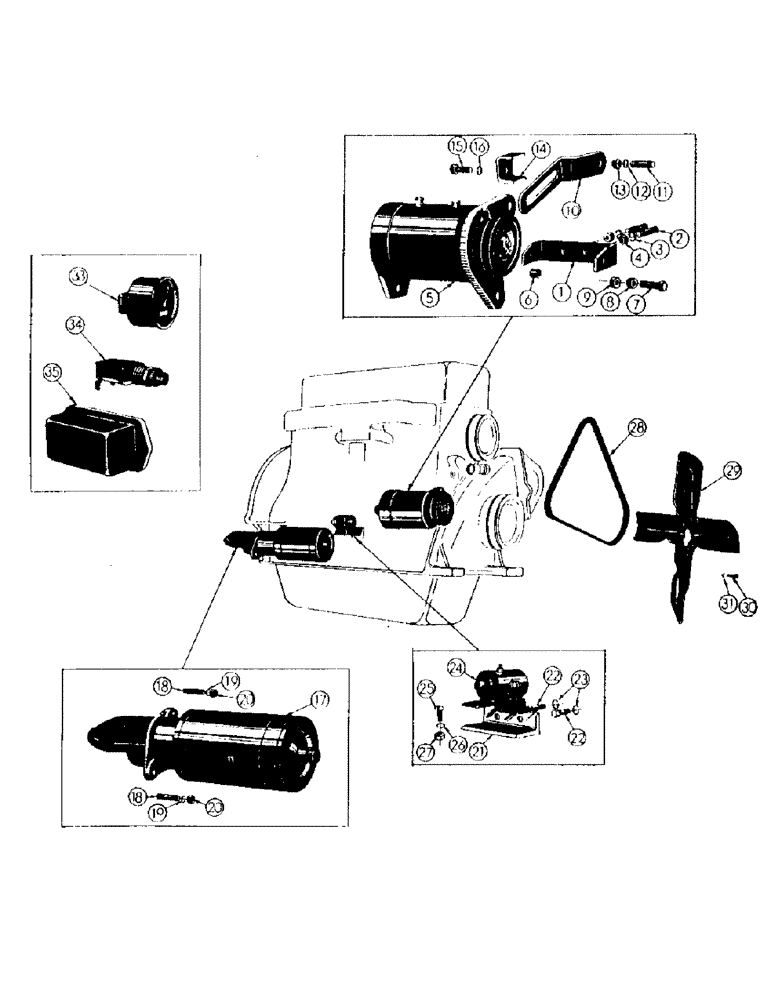

Запчасти Case 400 (060) - ELECTRICAL AND RELATED PARTS - DIESEL, (USED UP TO S/N 3003033) (06) - ELECTRICAL SYSTEMS

1

30358

BRACKET - mounting, generator

1шт.

2

VT4508

STUD - mounting bracket to block (3/8 - 16 NC x 1-1/4)

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

5

1336866C1

MOTOR

GENERATOR - 12 volt

1шт.

6

30361

SPACER - generator bracket, rear

1шт.

7

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - generator to bracket, rear (5/16 - 24 NF x 1-1/2)

1шт.

73437

SCREW - generator to bracket, front (5/16 - 24 NF x 1-1/8)

1шт.

8

48161

NUT - hex. (5/16 - 24 NF)

2шт.

9

30362

NUT - pal (5/16 - 24 NF)

2шт.

10

30359

STRAP - generator adjusting

1шт.

11

A29433

STUD

- generator adjusting strap to block (3/8 - 16 NC x 1)

1шт.

12

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - Shakeproof lock, external tooth (3/8)

1шт.

13

VT4505

NUT - hex. (3/8 - 16 NC)

1шт.

14

30360

CLIP - generator adjusting strap

1шт.

15

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Adjusting strap to generator Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

30365

STARTER ASS'Y - 12 volt

1шт.

D26326

STARTER ASS'Y - 12 volt heavy duty (Optional)

1шт.

18

VT4501

STUD - starter to block (3/8 - 16 NC x 1-11/16)

3шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

21

30672

BRACKET -, Serial Range: solenoid-block

1шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Solenoid bracket to block Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

A30992

SWITCH

SOLENOID - starter

1шт.

25

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- solenoid to bracket (#10 - 24 NC x 1/2)

2шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

225-14110

NUT,#10-24

2шт.

28

30353

BELT - drive, fan and generator

1шт.

29

A173040

FAN

- suction

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- Fan to hub Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

33

R18748

AMMETER

GAUGE - ammeter

1шт.

34

D23216

SWITCH

- push button starter

1шт.

35

30679

REGULATOR - voltage

1шт.

30365

STRAP - connecting, solenoid to starter (Not shown)

1шт.

221-245

NIPPLE - pipe, oil filler extension (1" NPT x 5") (Not shown)

1шт.

221-1370

ELBOW

- 45 degree male, oil filler extension (1" NPT) (Not shown)

1шт.

221-70

BUSHING - hex. pipe, oil filler extension (1-1/4" NPT x 1") (Not shown)

1шт.

221-527

CAP,1" NPT

- pipe, oil filler extension () (Not shown) 1" NPT

1шт.

60300016

FITTING

NIPPLE - close pipe, oil filler extension (1" NPT x 1-1/2) (Not shown)

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - engine mounting (1/2 - 20 NF x 2-1/4) (Not shown)

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Not shown 1/2"

2шт.

129-125

NUT,1/2"-20, G5

Not shown 1/2"-20, G5

2шт.

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

HHCS - engine mounting (5/8 - 18 NF x 2-1/4) (Not shown)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

2шт.

425-1110

NUT,5/8"-18, G5

(Not shown) 5/8"-18, G5

2шт.
