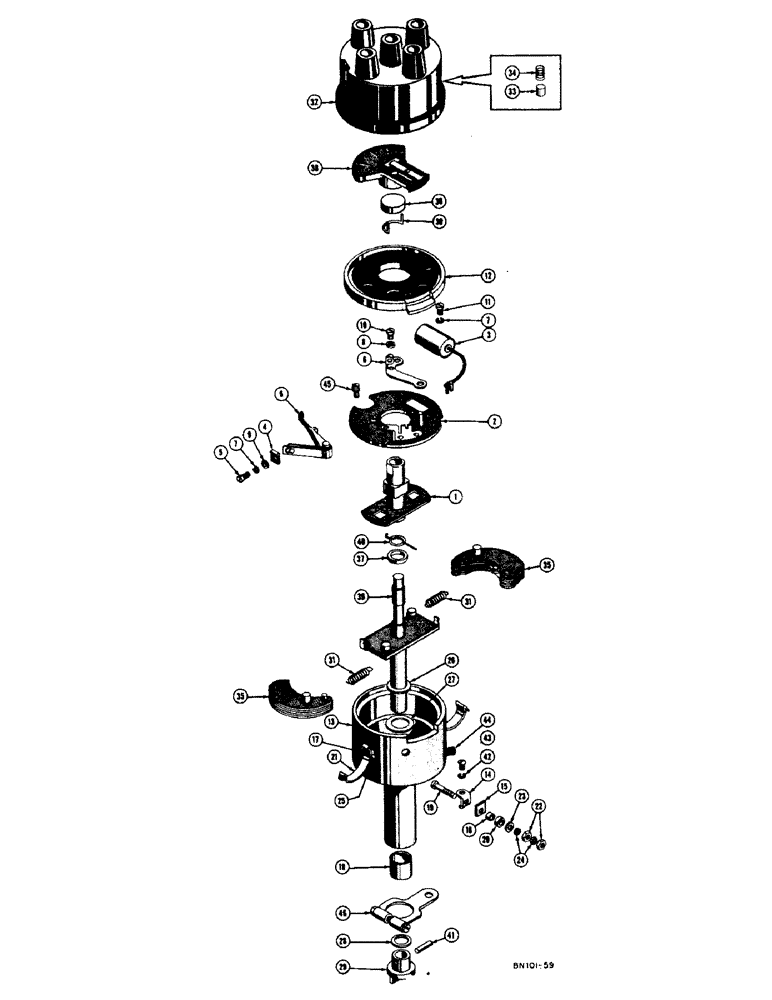

Запчасти Case 400 (038) - 10012 DISTRIBUTOR (AUTO-LITE NO. IAD-6004-1B) (06) - ELECTRICAL SYSTEMS

10012

DISTRIBUTOR

1шт.

1

IAD-1100LD-1

CAM AND STOP PLATE - 4 cylinder

1шт.

IAD-2004

PLATE ASS'Y - breaker

1шт.

2

IAD-1004

PLATE - breaker

1шт.

3

IBB-2042SS-1

CONDENSER PACKAGE

1шт.

4

IG-676

CLIP - spring, contract arm

1шт.

5

IGC-175

HHCS - breaker spring clamp (#6 - 32 NF x 5/16)

1шт.

6

IGW-3028DS

CONTACT SET - breaker

1шт.

7

12X-194

WASHER - lock (#6)

2шт.

8

8X-350

WASHER - plain (#8)

1шт.

9

8X-353

WASHER - plain (#6)

1шт.

10

8X-884

SCREW - lock, fill. hd. (#8 - 32 NF x 3/16)

1шт.

11

8X-1546

SCREW - fill. hd. (#6 - 32 NF x 5/32)

1шт.

12

IAD-2015

PLATE ASS'Y - seal

1шт.

IAD-12

WASHER - felt (Not shown)

1шт.

13

IAD-2020

BASE ASS'Y - distributor

1шт.

14

IAD-7

CONNECTOR - terminal stud

1шт.

15

IAD-8

INSULATION - terminal stud inner

1шт.

16

IAD-10

BUSHING - insulation, terminal stud

1шт.

17

IAD-14

BRACKET - cap spring

2шт.

IAO-13

BRACKET - mounting, breaker plate (Not shown)

2шт.

18

IG-579A

BEARING - absorbent bronze

2шт.

19

IGL-8A

STUD -terminal, primary

1шт.

20

IGL-9

WASHER - insulation, terminal stud

1шт.

21

IGZ-9

SPRING - clamp, cap

2шт.

22

8X-173

NUT - hex., terminal stud (#10 - 32 NF)

2шт.

23

8X-183A

WASHER - plain, terminal stud (#10)

1шт.

24

12X-196

WASHER - lock, terminal stud (#10)

2шт.

25

X-525

RIVET - tubular

4шт.

26

IAO-10

WASHER - thrust, inner, drive shaft (Upper)

1шт.

27

IAO-11

WASHER - thrust, outer, drive shaft (Upper)

1шт.

28

IG-90

WASHER - thrust, drive shaft (Lower)

1шт.

IG-94

TERMINAL - H.T. wire (Not shown)

5шт.

29

IG-644A

COUPLING - distributor drive

1шт.

30

IG-680

RING - snap, cam retaining

1шт.

31

IGB-327FS

SPRING SET - governor weight

1шт.

32

IG1324D

CAP ASS'Y - distributor

1шт.

33

IG-514

CONTACT - plunger

1шт.

34

IG-515A

SPRING - contact

1шт.

35

IGC-2168L

WEIGHT - governor

2шт.

36

IGH-28

WICK - felt, cam sleeve

1шт.

IGS-32

PLUG - vent hole, rubber (Not shown)

1шт.

37

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt (Not shown)

1шт.

38

IG-1657R

ROTOR - distributor

1шт.

39

ICS-1053LE

SHAFT - distributor drive

1шт.

40

IGT-69

SPRING - anti-rattle

1шт.

41

SW-213

RIVET - coupling

1шт.

42

12X-194

WASHER - lock (#6)

1шт.

43

8X-301

SCREW - round hd., connector (#6 - 32 NF x 3/16)

1шт.

44

X-1590

OILER

1шт.

45

X-2878

SCREW - fill. hd., breaker plate (#10 - 32 NF x 5/16)

2шт.

46

A10580

TOOL

ARM - distributor advance

1шт.
