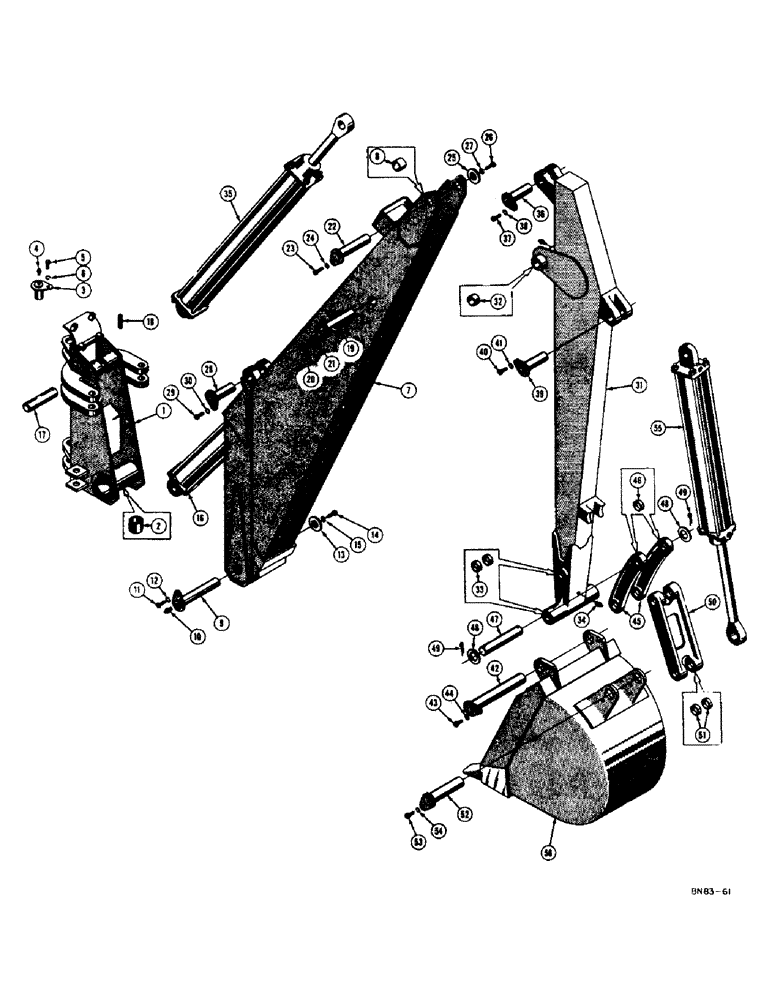

Запчасти Case 400 (264) - TOWER, BOOM, DIPPER ARM, AND BUCKET, TOWER AND BOOM (05) - UPPERSTRUCTURE CHASSIS

1

34727

TOWER - backhoe (Use D23331)

1шт.

D23331

TOWER - backhoe

1шт.

2

D23870

BUSHING

- tower, boom pivot (Use D23870)

2шт.

D23870

BUSHING

- tower, boom pivot

2шт.

3

34895

PIN - pivot, mounting, Serial Range: bracket-tower

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

2шт.

5

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

6

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2)

2шт.

D23740

BUSHING

- lockhead pin bolt (If used)

2шт.

7

34744

BOOM - backhoe

1шт.

8

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- dipper arm pivot, boom

2шт.

9

34902

PIN - pivot, Serial Range: boom-tower

1шт.

10

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.

11

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

1шт.

12

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2)

1шт.

D23740

BUSHING

- lockhead pin bolt (If used)

1шт.

13

34948

WASHER - boom pivot pin (13/16" I.D. x 3" O.D. x 1/2" thick)

1шт.

14

14-1220

HHCS - 3/4 - 16 NF x 1-1/4

1шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

16

34886

CYLINDER - boom, hydraulic (See figure 294 for breakdown) Use D23761

1шт.

D23761

CYLINDER - boom, hydraulic (See figure 294 for breakdown)

1шт.

17

34949

PIN - pivot, boom cylinder (Lower)

1шт.

18

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Driv-lok 3/8" x 2 1/2", Slotted

1шт.

19

34897

PIN - mounting, boom, Serial Range: cylinder-boom

1шт.

20

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

1шт.

21

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2)

1шт.

D23740

BUSHING

- lockhead pin bolt (If used)

1шт.

22

34896

PIN - pivot, dipper, Serial Range: arm-boom

1шт.

23

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

1шт.

24

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2)

1шт.

D23740

BUSHING

- lockhead pin bolt (If used)

1шт.

25

38617

WASHER - dipper arm to boom pivot pin (1-17/32" I.D. x 2-1/2" O.D. x 1/2" thick)

1шт.

26

14-1220

HHCS - 3/4 - 16 NF x 1-1/4

1шт.

27

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

28

31109

PIN ASSY.

PIN - pivot, crowd cylinder to boom (Use 31109)

1шт.

31109

PIN ASSY.

PIN - pivot, crowd, Serial Range: cylinder-boom

1шт.

29

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

1шт.

30

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2)

1шт.

D23740

BUSHING

- lockhead pin bolt (If used)

1шт.

31

34765

SHIM

ARM - dipper

1шт.

32

D21903

BUSHING

- boom pivot, dipper arm

2шт.

33

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dipper arm, lower

8шт.

34

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000), Dipper arm 1/8"-27 x .66 lg

2шт.

35

34886

CYLINDER - crowd, hydraulic (See figure 294 for breakdown) Use D23761, dipper arm

1шт.

D23761

CYLINDER - crowd, hydraulic (See figure 294 for breakdown), dipper arm

1шт.

36

31109

PIN ASSY.

PIN - pivot, crowd cylinder to dipper arm (Use D20285)

1шт.

D20285

PIN - pivot, crowd cylinder to dipper arm

1шт.

37

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm

1шт.

38

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), dipper arm

1шт.

D23740

BUSHING

- lockhead pin bolt (If used), dipper arm

1шт.

39

31109

PIN ASSY.

PIN - mounting, bucket cylinder to dipper arm (Use 31109)

1шт.

31109

PIN ASSY.

PIN - mounting, bucket cylinder to dipper arm

1шт.

40

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm

1шт.

41

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), dipper arm

1шт.

D23740

BUSHING

- lockhead pin bolt (If used), dipper arm

1шт.

42

35000

PIN - pivot, bucket to dipper arm (Use 35288)

1шт.

35288

PIN - pivot, bucket to dipper arm

1шт.

43

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm

1шт.

44

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), dipper arm

1шт.

D23740

BUSHING

- lockhead pin bolt (If used), dipper arm

1шт.

45

34973

LINK - bucket, dipper arm to bucket cylinder

2шт.

46

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket link, dipper arm

2шт.

47

34999

PIN - mounting, 34973 link to dipper (Also 34973 link to bucket cylinder), arm

2шт.

48

32625

WASHER - flat (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick), dipper arm

4шт.

49

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), , Dipper arm 1/4" x 1 3/4"

4шт.

50

34974

LINK - bucket dump, cylinder to bucket, dipper arm

1шт.

51

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dump link, dipper arm

8шт.

52

35290

PIN

- mounting, 34974 link to bucket, dipper arm

1шт.

53

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, dipper arm

1шт.

54

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), dipper arm

1шт.

D23740

BUSHING

- lockhead pin bolt (If used), dipper arm

1шт.

55

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - bucket, hydraulic (See figure 296 for breakdown) Use D23774, dipper arm

1шт.

D23774

CYLINDER - bucket, hydraulic (See figure 296 for breakdown), dipper arm

1шт.

56

D20809M

BUCKET - backhoe, trenching (19") (See figure 268 for breakdown and other buckets), dipper arm

1шт.
