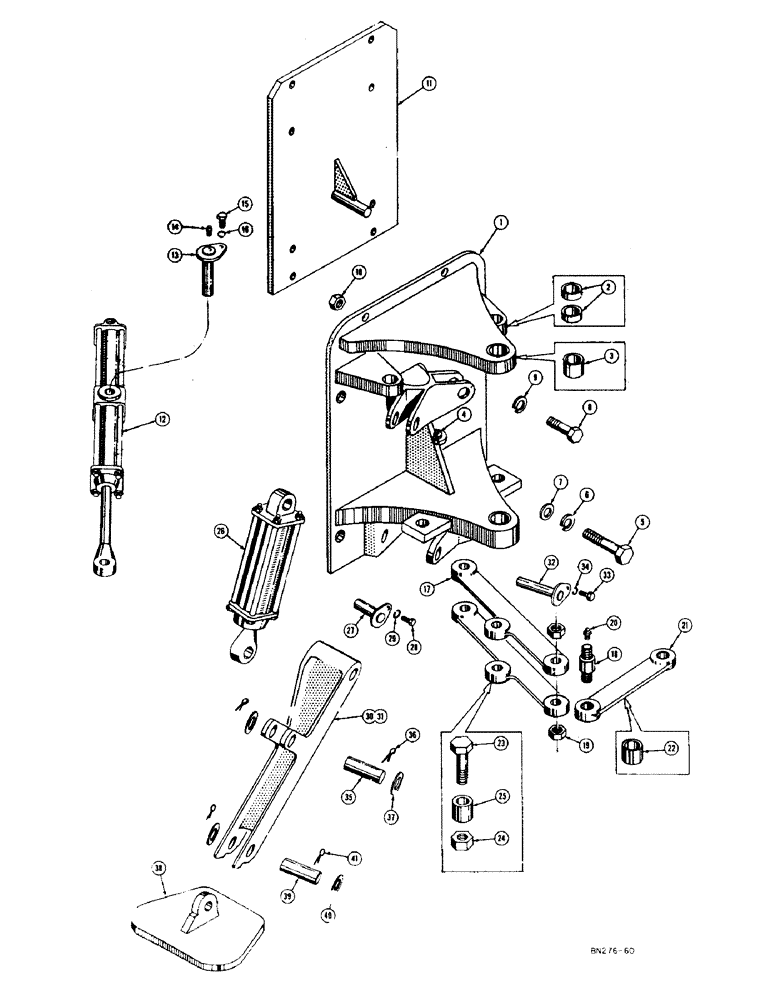

Запчасти Case 400 (262) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS, MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

34719

BRACKET - mounting

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- mounting bracket, swing link pivot

4шт.

3

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- mounting bracket, tower pivot

4шт.

4

35395

PIN - retaining, transport (Includes chain)

1шт.

5

114-902

BOLT,Hex, 1" - 14 x 3", Gr 5

HHCS - 1 - 14 NF x 3

4шт.

6

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

7

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- standard wrot (1-1/16" I.D. x 2" O.D. x 3/16" thick)

4шт.

8

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-125

NUT,1/2"-20, G5

4шт.

11

34788

HOUSING

PLATE - mounting, control valve

1шт.

12

34920

CYLINDER - swing, hydraulic (See figure 290 for breakdown), links

2шт.

38871

CYLINDER - swing, hydraulic (See figure 290 for breakdown) Has 3" O.D. cylinder tube - use D23257, links

2шт.

D23257

CYLINDER - swing, hydraulic (See figure 290 for breakdown has 2-7/8" O.D. cylinder tube), links

1шт.

13

35031

PIN

- pivot, swing cylinder, links

4шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITING - 67-1/2 degree grease, 1/8 NPT (Lincoln #5300), swing cylinder and links

4шт.

15

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, swing cylinder and links

4шт.

16

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), swing cylinder and links

4шт.

D23740

BUSHING

- lockhead pin bolt (If used), swing cylinder and links

4шт.

17

34754

YOKE

LINK - swing, front (Use D20158), cylinder and links

4шт.

34711

LINK - swing, front (Use D20158), cylinder and links

4шт.

D20158

LINK - swing, front, cylinder

4шт.

18

D21332

BOLT - spacer, mounting bracket to front swing link; front swing to rear swing link, cylinder

4шт.

19

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF), swing cylinder and links

8шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000), Swing cylinder and links 1/8"-27 x .66 lg

4шт.

21

35030

LINK - swing, rear, cylinder

2шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rear swing link, cylinder

4шт.

23

14-1676

HHCS - swing cylinder to front swing link; rear swing link to tower (1 - 14 NF x 4-3/4) Hex, 1"-14 x 4 3/4", G5

4шт.

24

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF), swing cylinder and links

4шт.

25

30959

SPACER - swing link, cylinders

4шт.

26

34942

CYLINDER - stabilizer, hydraulic (Has grease pressure fitting) See figure for breakdown (Use 38464)

2шт.

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (No grease pressure fitting) See figure for breakdown

2шт.

27

34961

PIN - stabilizer cylinder, upper

2шт.

28

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, stabilizer

2шт.

29

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof lock, internal tooth (1/2), stabilizer

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), stabilizer

2шт.

30

34709

ARM - stabilizer, R.H.

1шт.

31

34710

ARM - stabilizer, L.H.

1шт.

32

34629

PIN - stabilizer arm to mounting bracket

2шт.

33

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, stabilizer

2шт.

34

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - med. sec. lock (1/2), stabilizer

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), stabilizer

2шт.

35

35037

PIN - stabilizer cylinder, lower

2шт.

36

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), , Stabilizer 1/4" x 1 3/4"

4шт.

37

32625

WASHER - flat (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick), stabilizer

4шт.

38

35731

BUSHING

FOOT - stabilizer

2шт.

39

35037

PIN - stabilizer, Serial Range: arm-foot

2шт.

40

32625

WASHER - flat (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick), stabilizer

4шт.

41

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), , Stabilizers 1/4" x 1 3/4"

4шт.
