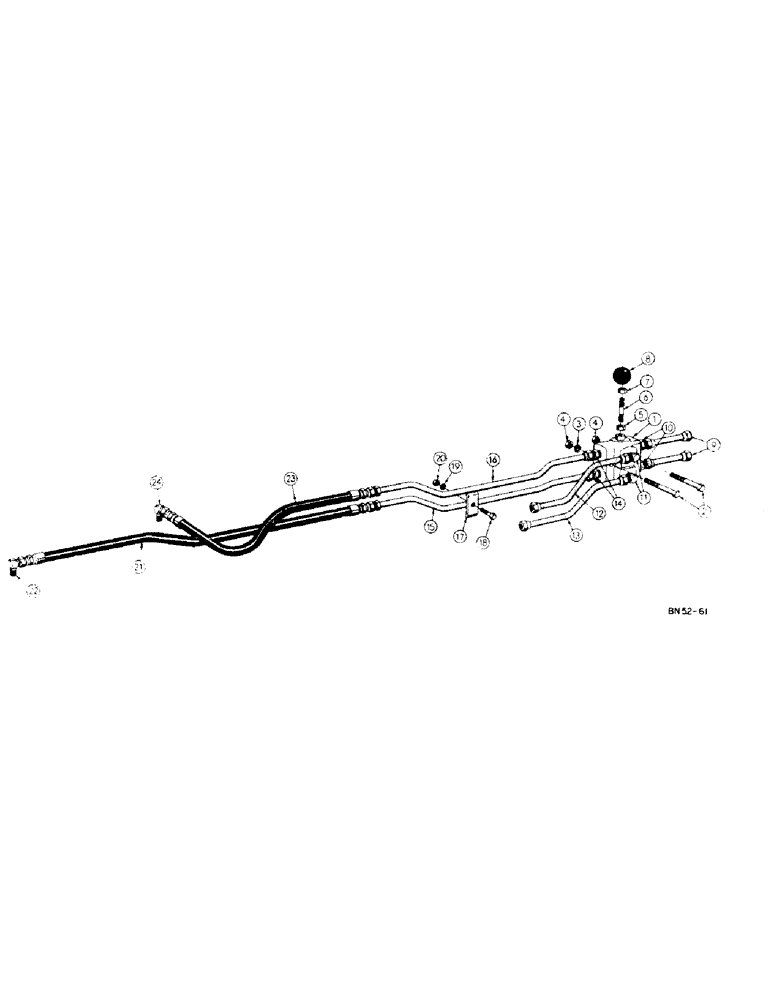

Запчасти Case 400 (252[1]) - SCARIFIER HYDRAULICS (WITH MECHANICAL DOZER) (USED UP TO SERIAL #3000180) (05) - UPPERSTRUCTURE CHASSIS

1

16628

SEAL

VALVE - diversion

1шт.

2

114-228

BOLT,Hex, 3/8" - 24 x 3", Gr 5

HHCS - 3/8 - 24 NF x 3

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

129-123

NUT,3/8"-24, G5

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

6

18574

STUD - diversion valve

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

376959R2

KNOB

- control

1шт.

9

18930

TOOL

TUBE - diversion valve to manifold tubes

2шт.

10

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (5/8 JIC x 1/2 NPT)

2шт.

11

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT)

2шт.

12

18948

KNOB

TUBE - outside upper diversion valve port to control valve

1шт.

13

18945

TUBE - outside lower diversion valve port to control valve

1шт.

14

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (5/8 JIC x 1/2 NPT)

2шт.

15

18932

TUBE - lower rear diversion valve port to lower cylinder port, front section

1шт.

16

18933

TUBE - upper rear diversion valve port to upper cylinder port, front section

1шт.

17

32978

PLATE ASSY.

PLATE - clamp

1шт.

18

414-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

HHCS - 5/16 - 24 NF x 1-1/4

1шт.

19

92-5

LOCK WASHER,5/16"

1шт.

20

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

1шт.

21

19178

HOSE

- lower rear diversion valve port to lower cylinder port, rear section

1шт.

22

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NPT)

1шт.

23

L50840

HOSE

- upper rear diversion valve port to upper cylinder port, rear section

1шт.

24

D20168

ELBOW - special flow restrictor

1шт.
