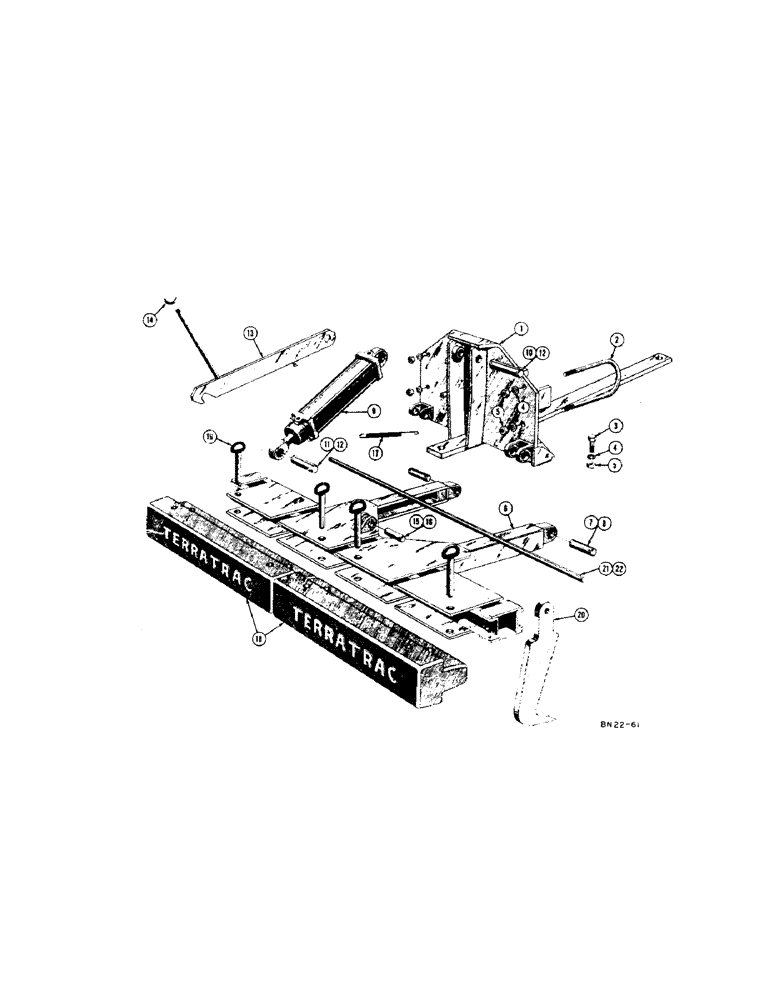

Запчасти Case 400 (250) - SCARIFIER, (USED UP TO SERIAL #3000502) (05) - UPPERSTRUCTURE CHASSIS

1

31716

PLATE - mounting

1шт.

2

R53121

BOLT

"U" BOLT - mounting plate to final drive spacer tubes

2шт.

3

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

6

34349

FRAME - scarifier

1шт.

7

31715

PIN

- frame to mounting plate

2шт.

8

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

9

30624

RING

CYLINDER - hydraulic, scarifier (See figure 256 for breakdown)

1шт.

10

34354

PIN - mounting, cylinder and lock to mounting plate

1шт.

11

31715

PIN

- mounting, Serial Range: cylinder-frame

1шт.

12

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

13

34356

LOCK - transport safety

1шт.

14

376959R2

KNOB

- safety lock

1шт.

15

34353

PIN - safety lock

1шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

17

R33370

SPRING

- safety lock

1шт.

18

19041

WEIGHT - scarifier

2шт.

19

CAS19055

PIN ASSY.

PIN - mounting, scarifier weight

4шт.

20

31752

LINE

TOOTH - scarifier

5шт.

21

31714

ROD - holding

1шт.

22

132-348

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.
