Запчасти Case 400 (218) - MECHANICAL ANGLING DOZER, (USED UP TO SERIAL #3003033) (05) - UPPERSTRUCTURE CHASSIS

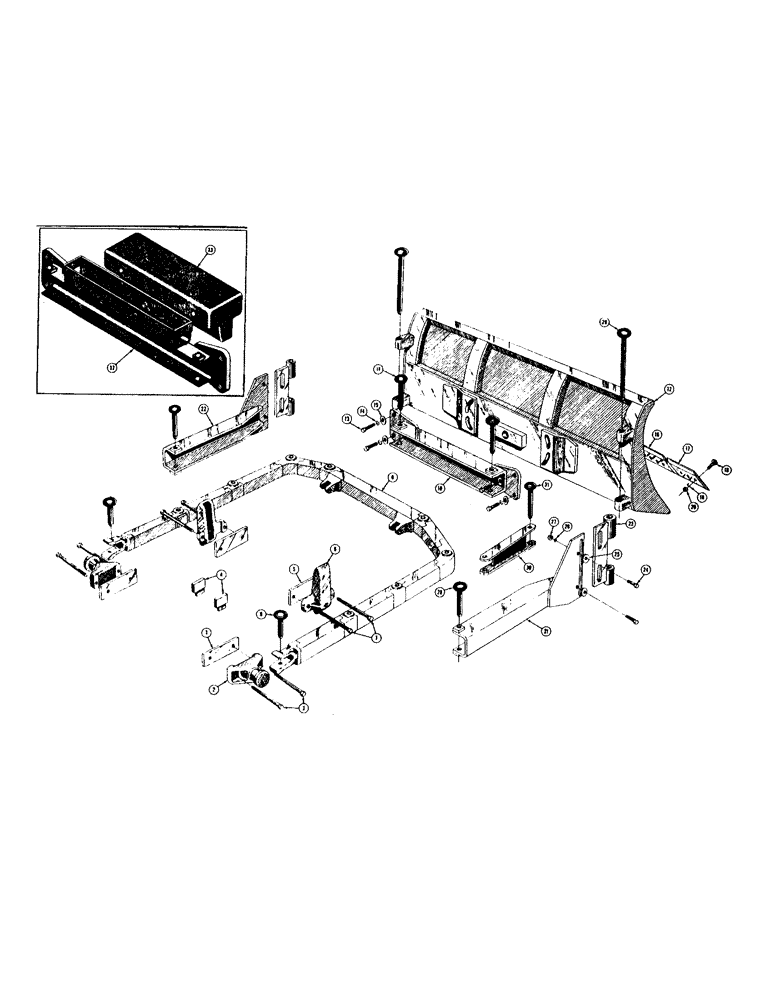

Схема запчастей Case 400 - (218) - MECHANICAL ANGLING DOZER, (USED UP TO SERIAL #3003033) (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

2

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - pivot bracket (3/4 - 16 NF x 12)

4шт.

4

33676

DRAWBAR SUPPORT

BLOCK - leaf spring lockout

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

33961

CONNECTING LINK

PLATE - rub

2шт.

7

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - rub plate (3/4 - 16 NF x 12)

2шт.

8

35617M

"C" FRAME - mechanical angling dozer

1шт.

9

38679

PIN - "C" frame to pivot bracket

2шт.

10

16786

KIT

CHANNEL ASS'Y - push (Standard dozer models only) See ref. #32 and #33

1шт.

11

16720

SHROUD

PIN - push channel to "C" frame

2шт.

12

16790

MOLDBOARD - dozer

1шт.

13

14-1628

HHCS - push channel to moldboard (1 - 14 NF x 1-3/4)

4шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

15

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

4шт.

16

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

17

NLS

NO LONGER SERVICED

BLADE - cutting, end

2шт.

18

19-832

BOLT

- plow, cutting blade (1/2 - 13 NC x 2)

20шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

20шт.

16724

ELECTRICAL WIRE

ARM - stabilizer, R.H.

1шт.

16725

ARM - stabilizer, L.H.

1шт.

21

16706

PIN

ARM - connecting, R.H.

1шт.

22

16707

PIN

ARM - connecting, L.H.

1шт.

23

16705

SUPPORT

PLATE - attaching

2шт.

24

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - attaching strap (1 - 14 NF x 2-3/4)

4шт.

25

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

4шт.

26

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

27

129-123

NUT,3/8"-24, G5

- hex. (1 - 14 NF)

4шт.

28

16720

SHROUD

PIN - stabilizer arm to "C" frame

2шт.

29

16722

RENOVATING TOOL

PIN - stabilizer, Serial Range: arm-moldboard

2шт.

30

16798

ARM ASS'Y - angling support

1шт.

31

16720

SHROUD

PIN - angling support arm

1шт.

32

37204

RETAINER

CHANNEL ASS'Y - push (Dozer-backhoe models only)

1шт.

33

19041

WEIGHT - (Dozer-backhoe models only)

1шт.

Выбрано товаров: 35
