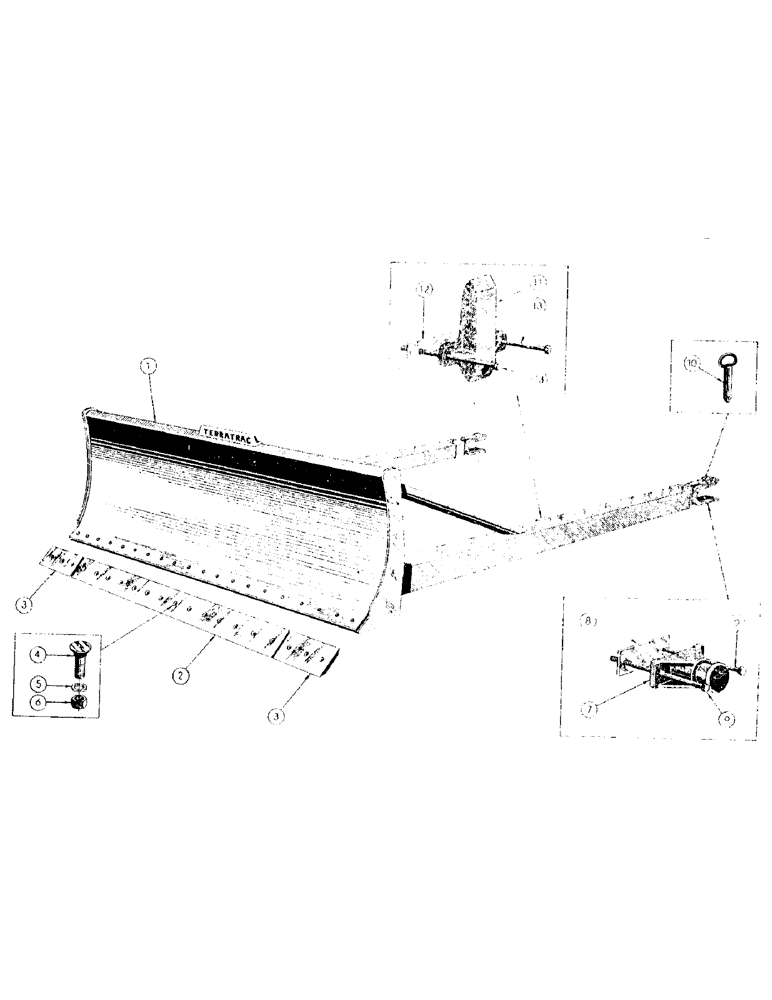

Запчасти Case 400 (214) - BULLDOZER (05) - UPPERSTRUCTURE CHASSIS

1

34051

MOLDBOARD AND PUSH BEAM ASS'Y - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

NLS

NO LONGER SERVICED

BLADE - cutting, end

2шт.

4

19-832

BOLT

- plow, cutting blade (1/2 - 13 NC x 2)

18шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

18шт.

7

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

8

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

9

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - pivot bracket (3/4 - 16 NF x 12)

4шт.

10

38679

PIN - bulldozer to pivot bracket

2шт.

11

33961

CONNECTING LINK

PLATE - rub

2шт.

12

34047

LEVER

SPACER - rub plate

2шт.

13

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - rub plate (3/4 - 16 NF x 12)

4шт.

33676

DRAWBAR SUPPORT

BLOCK - leaf spring lockout (Not shown)

2шт.
