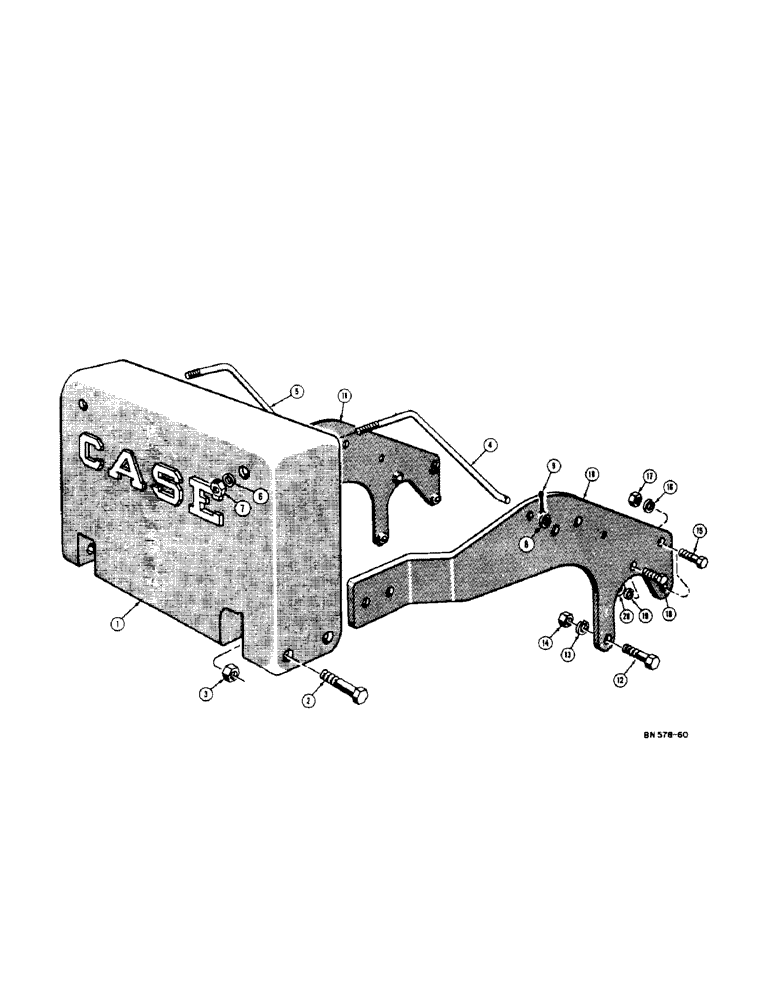

Запчасти Case 400 (212[1]) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS - 1 - 14 NF x 5-1/2

4шт.

3

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14 NF)

4шт.

4

D21392

ROD - support, R.H.

1шт.

5

D21393

ROD - support, L.H.

1шт.

6

495-11066

WASHER,5/8", SAE

- plain (21/32" I.D. x 1-15/16" O.D.)

2шт.

7

131-154

LOCK NUT,5/8"-18, GA

NUT - self-locking (5/8 - 18 NF)

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

D21263

ARM - counterweight support, R.H.

1шт.

11

D21264

ARM - counterweight support, L.H.

1шт.

12

414-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

2шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

14

25-1712

NUT,3/4"-16, G5, Hvy

- hex. (3/4 - 16 NF)

2шт.

15

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18 NF x 2-3/4

4шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

425-1110

NUT,5/8"-18, G5

4шт.

18

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

Hex, 1/2"-20 x 2 3/4", G5

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

129-125

NUT,1/2"-20, G5

2шт.
